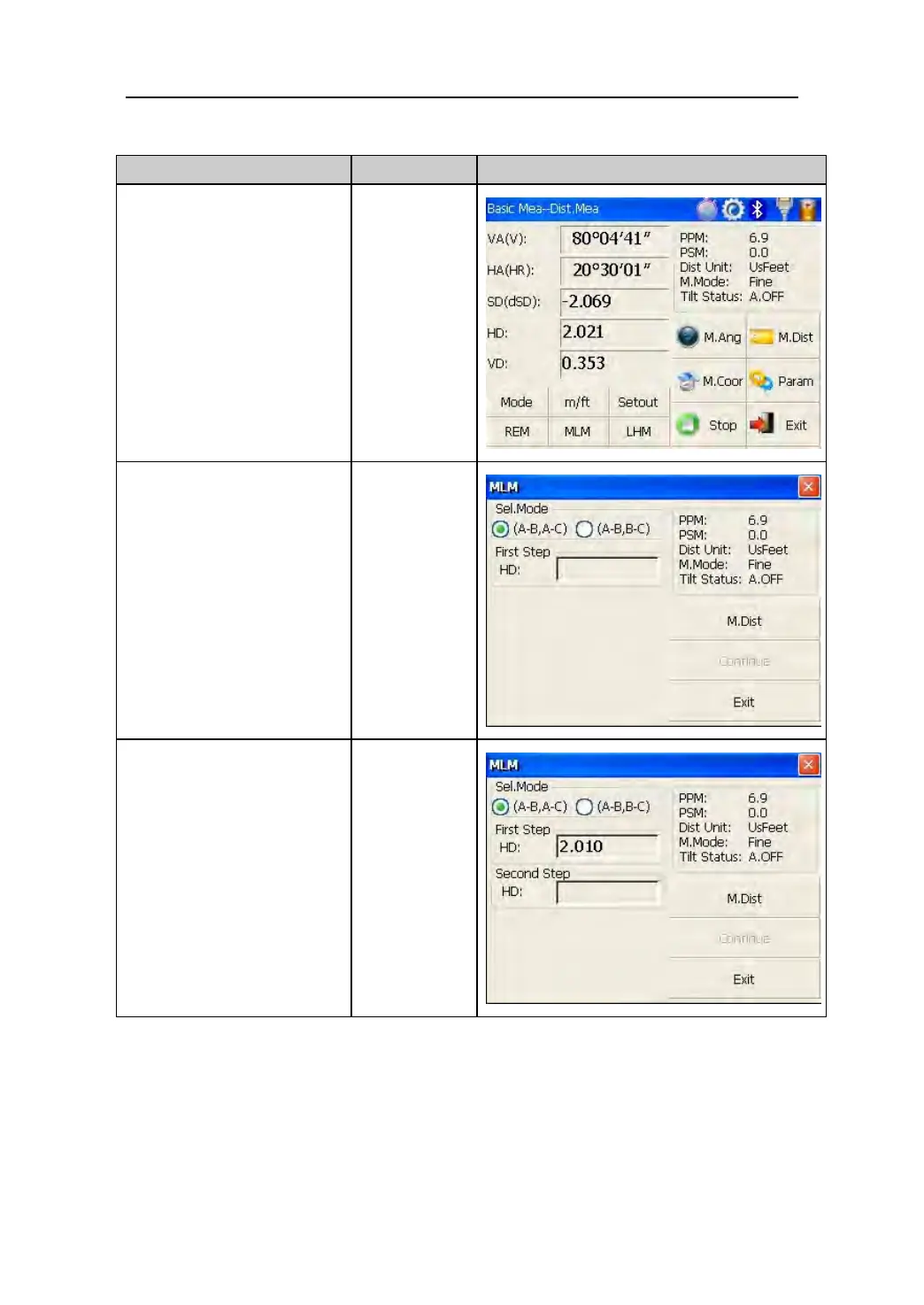

47
Operation steps Keys Display
①
Under distance
measurement, click
“MLM” key to activate
Missing Line
Measurement.
【
MLM
】
②
Select method (A-B,
A-C) with stylus.
③
Collimate prism
A,click “M.Dist” key.
Horizontal distance
between instrument and
prism A will be shown.
【
M.Dist
】
