58

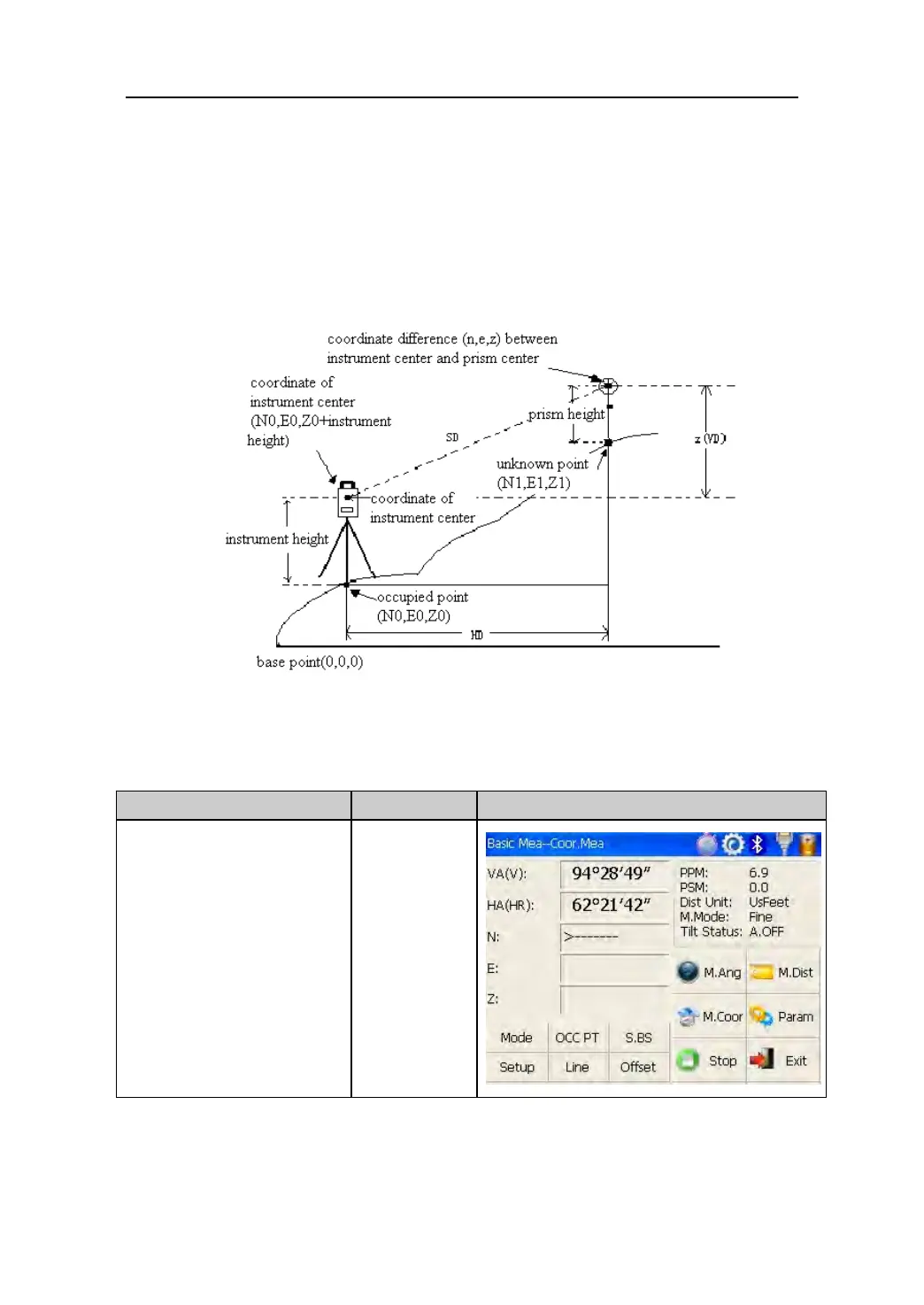

4.5.4 Operation of coordinate measurement
With coordinate of occupied point, backsight azimuth angle, Instrument
height and prism height set up,you can directly calculate coordinate of
unknown point.
Operation steps Keys Display
Set coordinate of
occupied point and
instrument height/prism
height.
1)
Set backsight azimuth
angle.
2)
Collimate target.
3)
