Pentax W-1502N Series User Manual

52
⑥

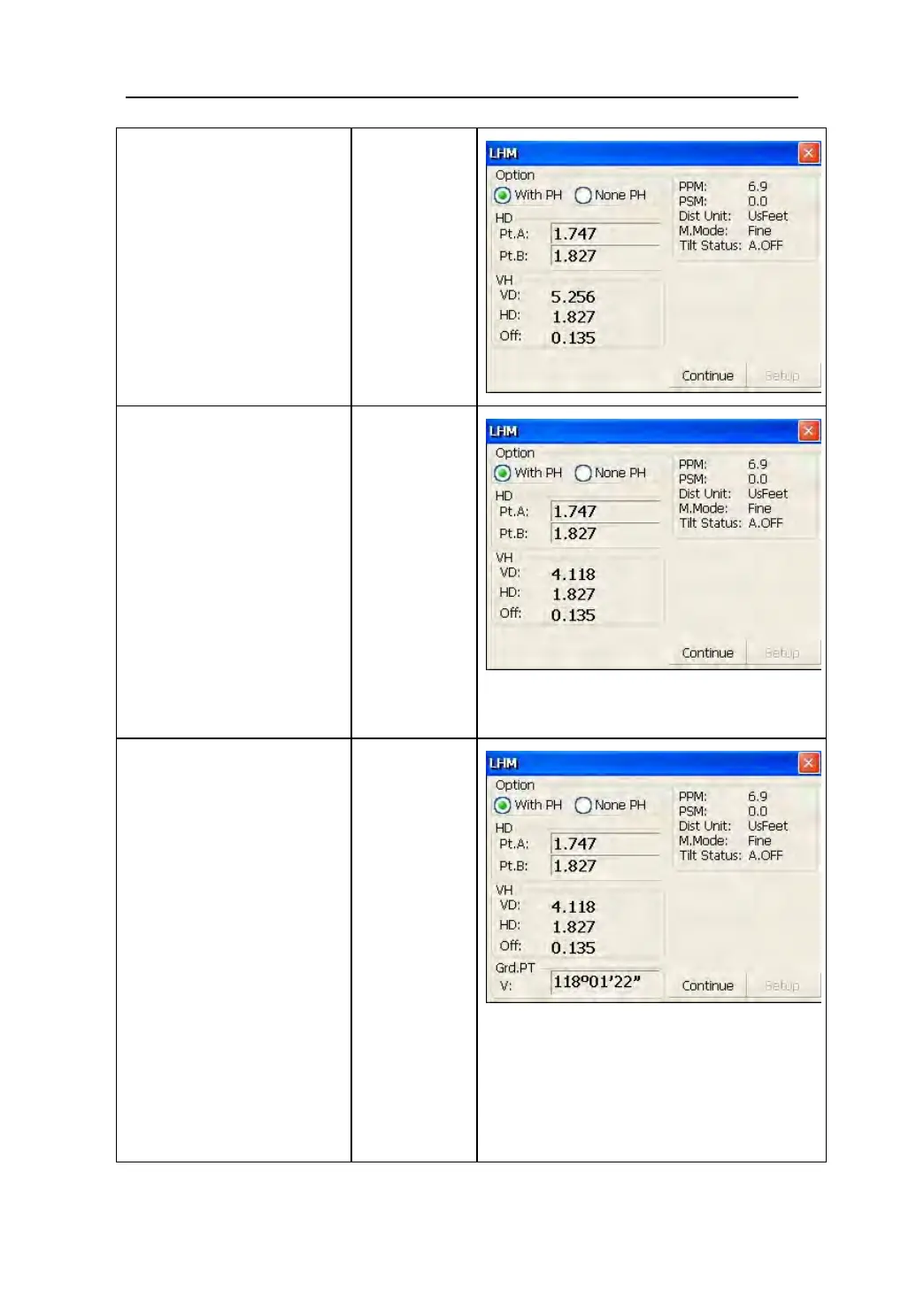

After measurement
click “Continue” key.
【
Continue
】
⑦Collimate point L on
overhead line. The
screen displays
measuring data of
collimating L.
VD ： Vertical distance
between A and L.
HD：Horizontal distance
between instrument
and L.
Off：Horizontal distance
between A and L.
⑧
Click “Continue” key
which is used for
measuring height
between overhead line
and ground. Operation
steps:
●
Collimate point on
overhead line before
clicking “Continue” key.
● Lock instrument on
horizontal direction, m
ove telescope on vertic
al direction until aim a
t ground point G.
【Continue
】
