67
③

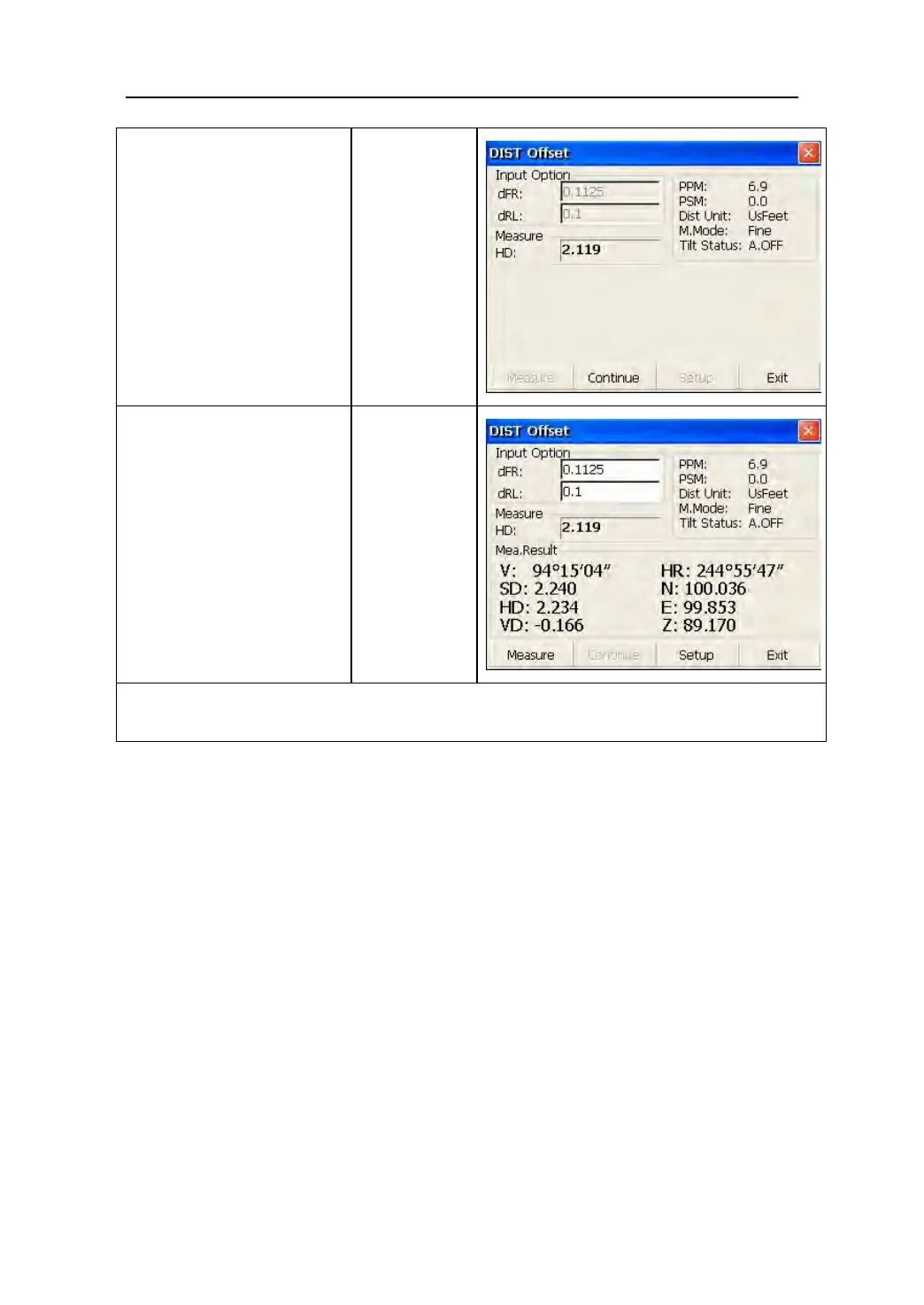

Collimate prism and
click “Measure” key.
【
Measure
】
④Click “Continue”
key,and result displays
with the correction of
offset distance.
※1)，※2)
【 Continue
】
※
1) Click “Setup” key to set instrument height and prism height.
※
2) Click “Exit” key to finish Distance offset measurement.
3) Column Offset Measurement
It is possible to measure circumscription point(P1) of column directly,the
distance to the center of column(P0),coordinate and direction angle can be
calculated by measured circumscription points P2 and p3.The direction angle
of the center of column is 1/2 of total direction angle of circumscription
points P2 and P3.
To Next Page
