Click “Continue ”
key,and relational
values between
instrument and the
center of column(P0)
can be calculated and
shown.
※
1)
，※
2)
【
Continue
】
※1) Click “Setup” key to set instrument height and prism height.
※2) Click “Exit” key to finish column offset measurement.

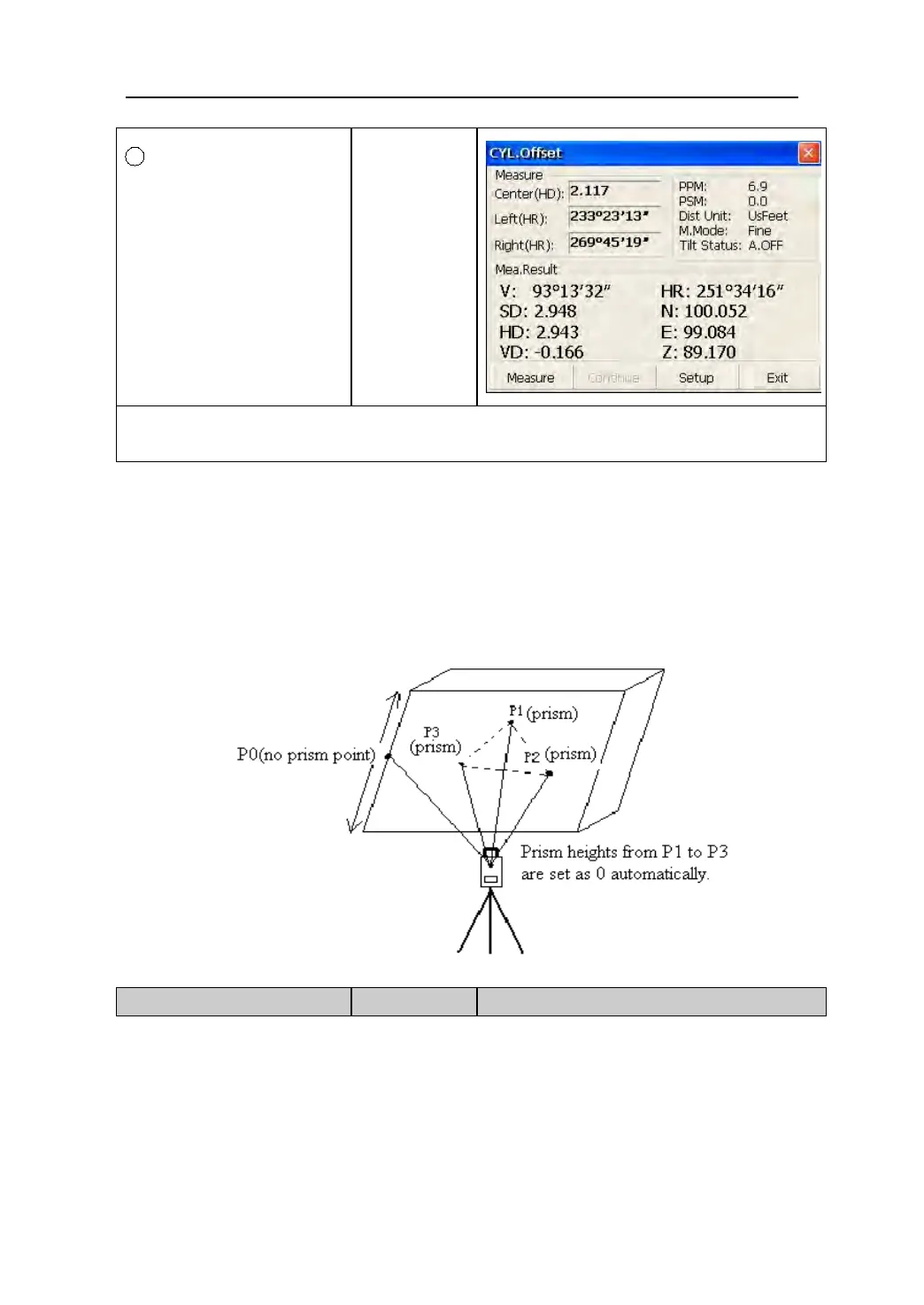

4) Plane Offset Measurement
Measuring will be taken for the place where direct measuring can not be
done,for example distance or coordinate measuring for an edge of a
plane.Three random points(P1,P2,P3) on a plane will be measured at first in
the plane offset measurement to determine the measured plane,collimate
the measuring point(P0),the instrument calculates and displays coordinate
and distance value of cross point between collimation axis and of the plane.
●
Refer to “4.5.1” to set coordinate of occupied point.
Operation steps Keys Display
To Next Page
