VMP2 PMC-HDD1 Module (Optional)
ID 24855, Rev. 02 © 2002 PEP Modular Computers GmbH Page G - 3
G. PMC-HDD1 Module (Optional)
Board description
The PMC-HDD1 provides the PEP PowerPC-based CPU boards with a cost-effective
way to add substantial mass storage capacity. It is designed to connect a 2.5” IDE hard
disk drive to the PCI bus of those boards. It is based on the silicon image IDE controller
SiI0680, which provides the interface between the 32 bit wide, 33 MHz PCI bus and a
standard IDE hard disk drive. It is able to handle transfer rates up to the ATA-133 speed
standard.

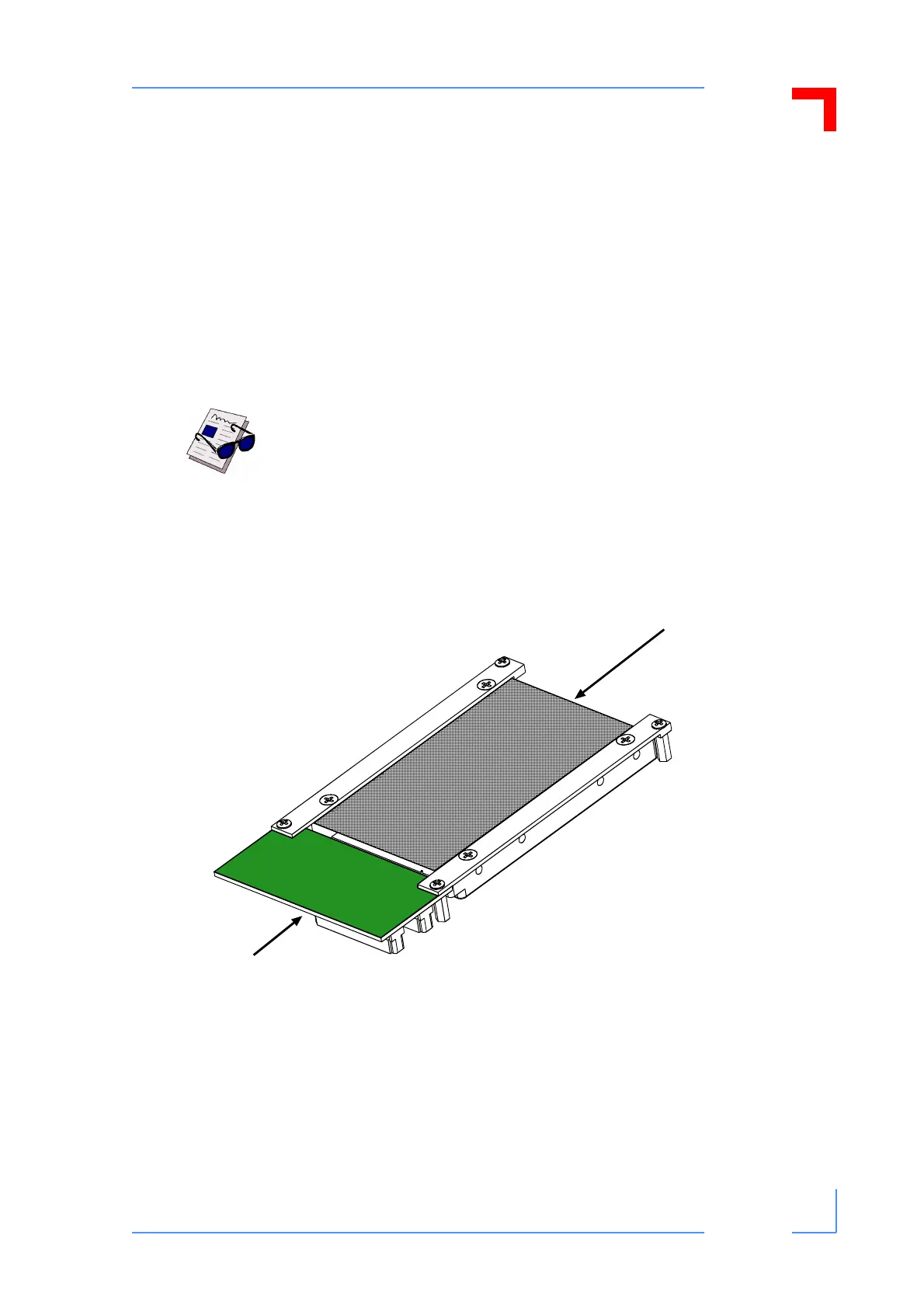

Figure G-1: PMC-HDD1 Module with Hard Disk Drive Attached
Note...
• The maximum transfer rate which can be achieved with this
module is restricted by the hard drive in use.
• The capacity of the module is defined by the hard drive in use.
HARD DISK DRIVE UNIT
PMC-HDD1
