USER MANUAL
Peplink Balance Series
After selecting an item from the
drop-down menu, the Protocol and
Port number remains manually modifiable.
Port

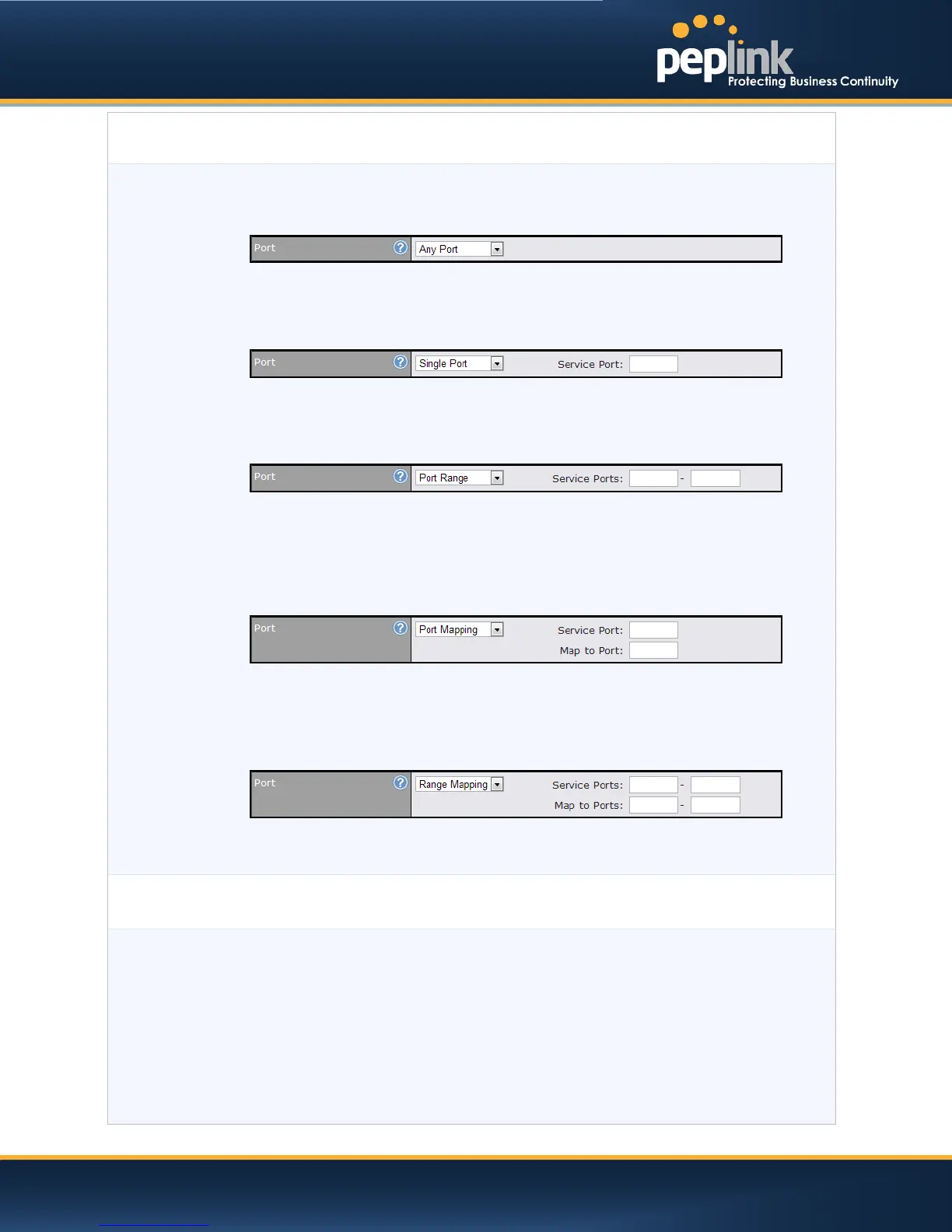

The Port setting specifies the port(s) that correspond to the service, and can be configured to
behave in one of the following manners:
Any Port, Single Port, Port Range, Port Map and Range Mapping
Any Port: all traffic that is received by Peplink Balance via the specified protocol is forwarded
to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Any Port, all TCP traffic is
forwarded to the configured servers.
Single Port: traffic that is received by Peplink Balance via the specified protocol at the
specified port is forwarded via the same port to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Single Port and Service Port 80,
TCP traffic received on Port 80 is forwarded to the configured servers via Port 80.
Port Range: traffic that is received by Peplink Balance via the specified protocol at the
specified port range is forwarded via the same respective ports to the LAN hosts specified by
the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Range and Service Port 80-
88, TCP traffic received on ports 80 through 88 is forwarded to the configured servers via the
respective ports.
Port Mapping: traffic that is received by Peplink Balance via the specified protocol at the
specified port is forwarded via a different port to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Map, Service Port 80, and
Mapping to Port
88, TCP traffic on Port 80 is forwarded to the configured servers via Port 88.
(Please see below for details on the Servers setting.)
Range Mapping: traffic that is received by Peplink Balance via the specified protocol at the
specified port range is forwarded via a different port to the servers specified by the Servers
Inbound IP
Address(es)
This setting specifies the WAN connections and Internet IP address(es) from which the
service can be accessed.
Included
Server(s)
This setting specifies the LAN servers that handle requests for the service, and the relative
weight values.
The amount of traffic that is distributed to a server is proportional to the weight value assigned
to the server relative to the total weight.
Example:
With the following weight settings on a Peplink Balance:
• demo_server_1: 10
• demo_server_2: 5
The total weight is 15 = (10 + 5)
http://www.peplink.com -96 / 207 - Copyright © 2013 Peplink
