USER MANUAL
Peplink Balance Series
C.3 Bypassing the Firewall to Access Hosts on LAN
C.3.1 Scenario
There are times when remote access to computers on the LAN is desirable; for example, when hosting
web sites, online businesses and FTP download and upload areas, etc.
In such cases, it may be appropriate to create an inbound NAT mapping for the network to allow some
hosts on the LAN to be accessible from outside of the firewall.
C.3.2 Solution
Web Admin Interface can be used for adding an inbound NAT mapping to a host and to bind the host to
the WAN connections, via Network>NAT Mappings> AddNAT Rule

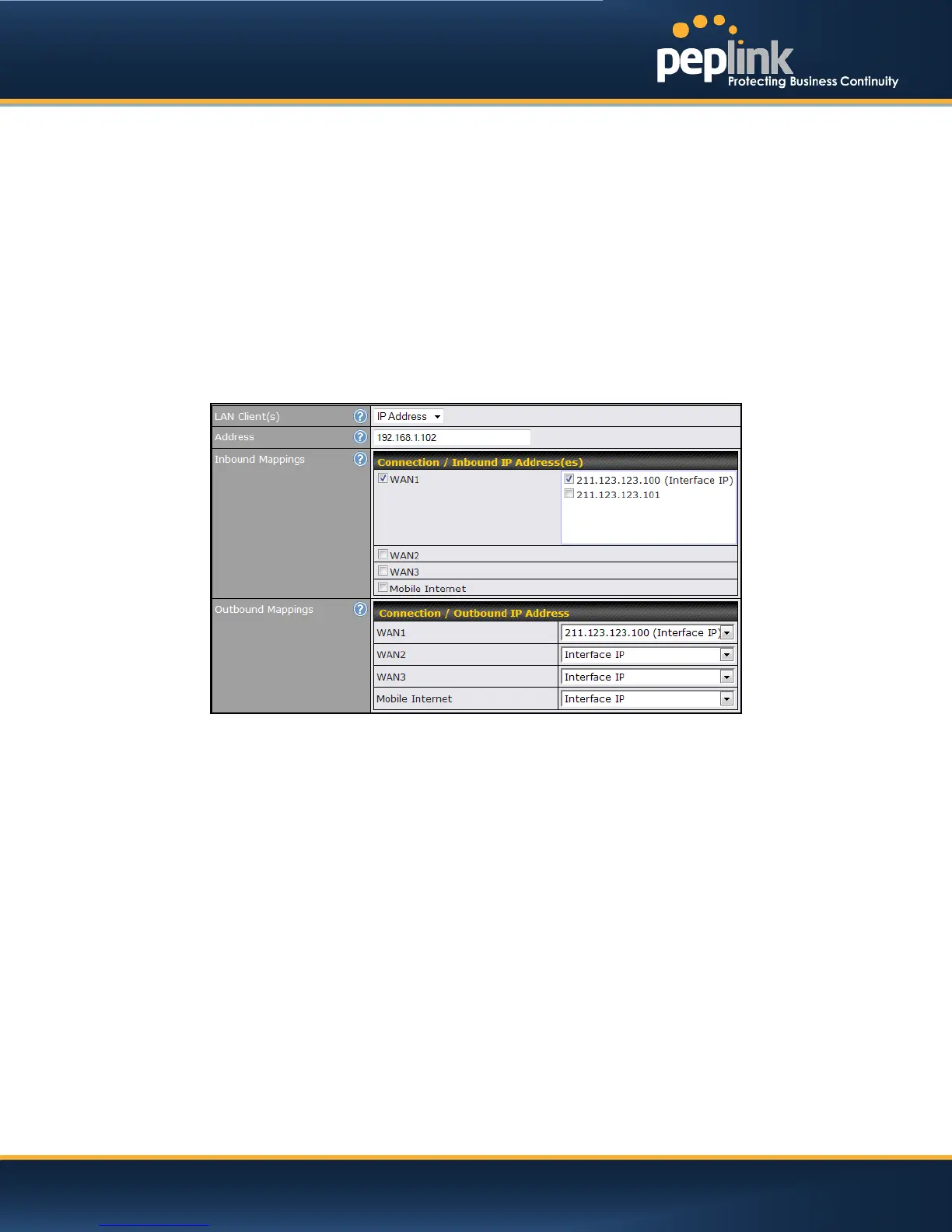

For example, the following settingsadd the host, with IP address 192.168.1.102, to an Inbound Mapping
and bind the host tothe default IP and 211.123.123.100 of WAN1:
http://www.peplink.com -192 / 207 - Copyright © 2013 Peplink
