Peplink Balance Series
6.5 Peplink Balance 305

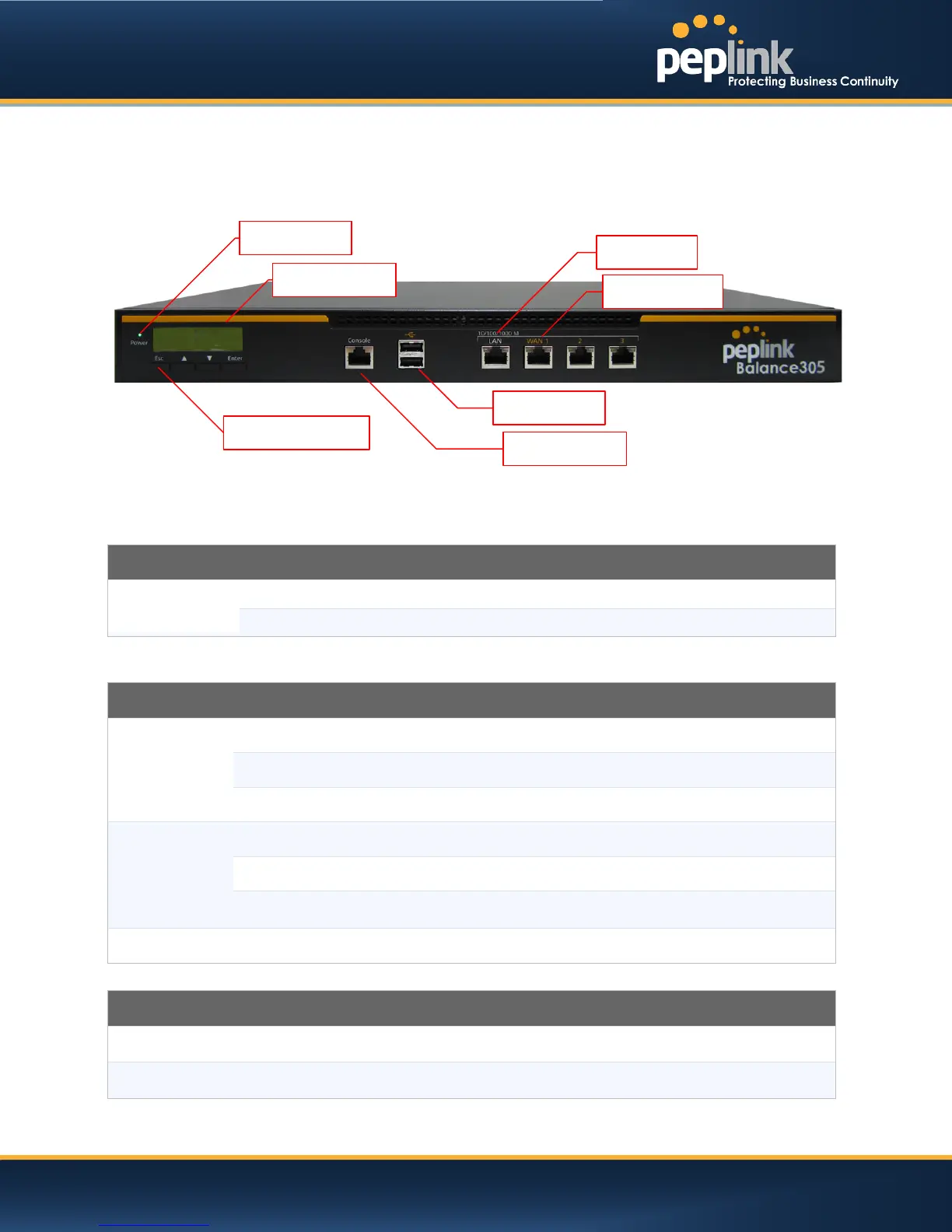

6.5.1 Front Panel Appearance
6.5.2 LED Indicators
The statuses indicated by the Front Panel LEDs are as follows:
Power and Status Indicators
Power LED
OFF – Power off
GREEN– Power on
LAN Port, WAN 1 – 3 Ports
Right LED
ORANGE– 1000 Mbps
GREEN– 100 Mbps
OFF – 10 Mbps
Left LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
Auto MDI/MDI-X ports
Console and USB Ports
Console Port
Reserved for engineering use
USB Ports
For connecting a 4G/3G USB modem.
LCD Display
Console
LCD Controls
LAN Port
Power LED
WAN Ports
USB Ports
