6000 Series Purge/Pressurization System
I/O Manual
EPV-6000 vent
Tools:
1 1/2" NPT knockout (Ø 2" [50.8mm] hole ) for
vent

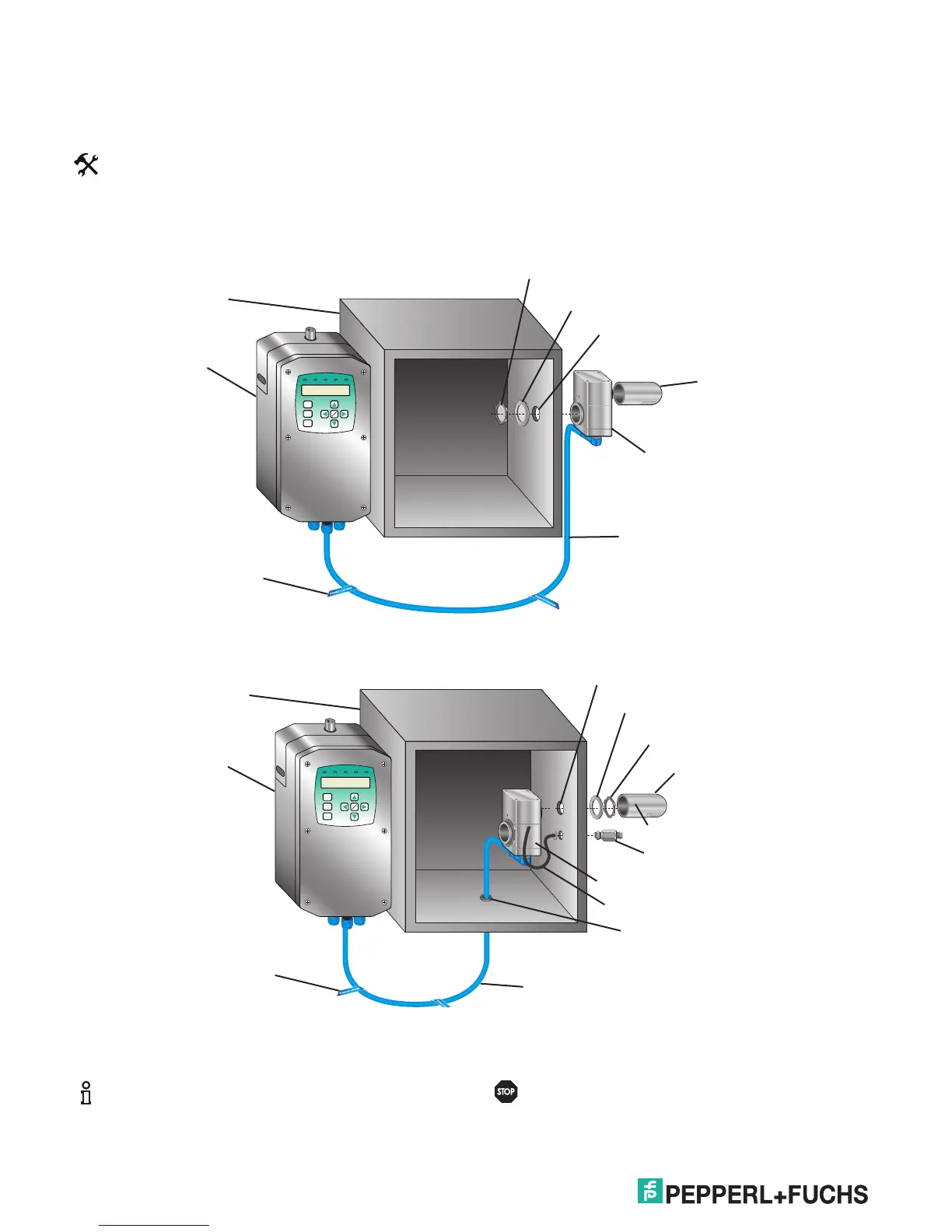

Vent mounted on the outside of the enclosure
Vent mounted on the inside of the enclosure
Vent is not gravity sensitive and can be installed
in any orientation.
Cable to the vent is I.S. wiring and must be
properly isolated from other wiring.
Note
Warning
Locking nut w/grounding screw
(included)
Seal gasket (included)
Ø 2" (50.8 mm)
Vent cap
(included)
Vent cable (included)
I.S. wire tag
(included)
I.S. wire tag
(included)
EPV-6000
Pressurized enclosure
6000 control unit
Pressurized enclosure
6000 control unit
Locking nut w/o ground
(included)
Seal gasket (included)
Ø 2" (50.8 mm)
Vent cap (included)
*Bulkhead tting for reference
pressure
*Reference tube
Hex screws 0.05"(1.3 mm) (3)
Vent cable (included)
*Reference tubing and hardware included with EPV-6000-SS models
EPV-6000
Cord grip CG-8
(optional)
