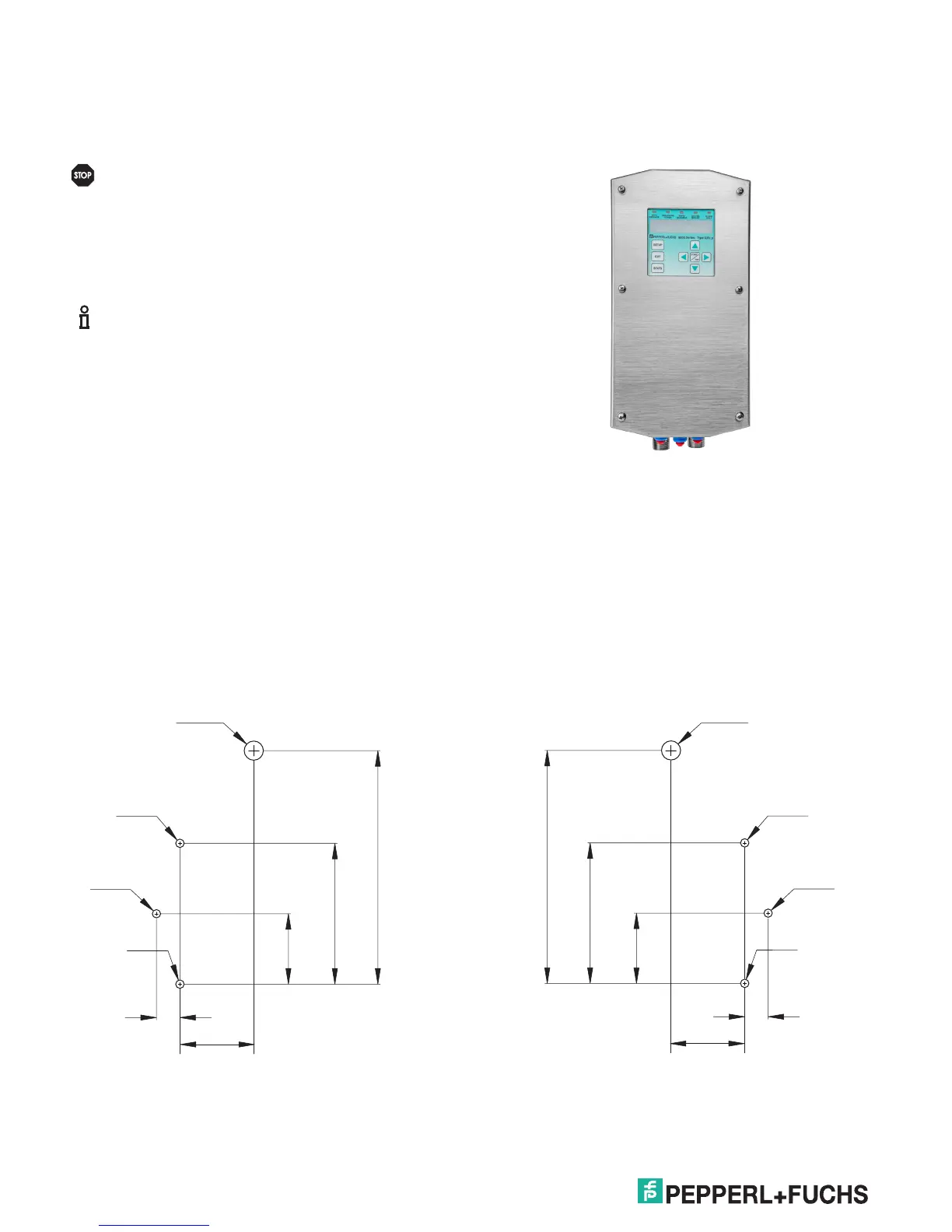

6000 Series Purge/Pressurization System
I/O Manual
Tightening unit cover plate
The screws on the unit cover plate must be
tightened in the order shown on the diagram to
the right. The cover plate to the main housing
has positive stops so that the gasket is not over
tightened. Torque screws at 12 in-lb (1.36 Nm).
When rotating the UIC, torque down the 4 screws
at 4 in-lb (0.46 Nm) using a crisscross pattern.
Left-hand mounting template
Right-hand mounting template
ø15.5 mm
(.60")
ø 7. 0 mm
(.25")
ø 7. 0 mm
(.25")
ø 7. 0 mm
(.25")
189.5 mm
(7.45")
114.5 mm
(4.50")
57.0 mm
(2.25")
60.0 mm
(2.5")
19.0 mm
(.75")
ø 15.5 mm
(.60")
ø 7. 0 mm
(.25")
ø 7. 0 mm
(.25")
ø 7. 0 mm
(.25")
189.5 mm
(7.45")
114.5 mm
(4.50")
57.0 mm
(2.25")
60.0 mm
(2.5")
19.0 mm
(.75")
Warning
2.35"
2.35"
Note
1 2
45
63
