Pepperl+Fuchs 6000 SERIES - User interface mounting template (panel mount); User interface mounting template (external mount); EPCU mounting template; Solenoid mounting template

22
6000 Series Purge/Pressurization System
I/O Manual

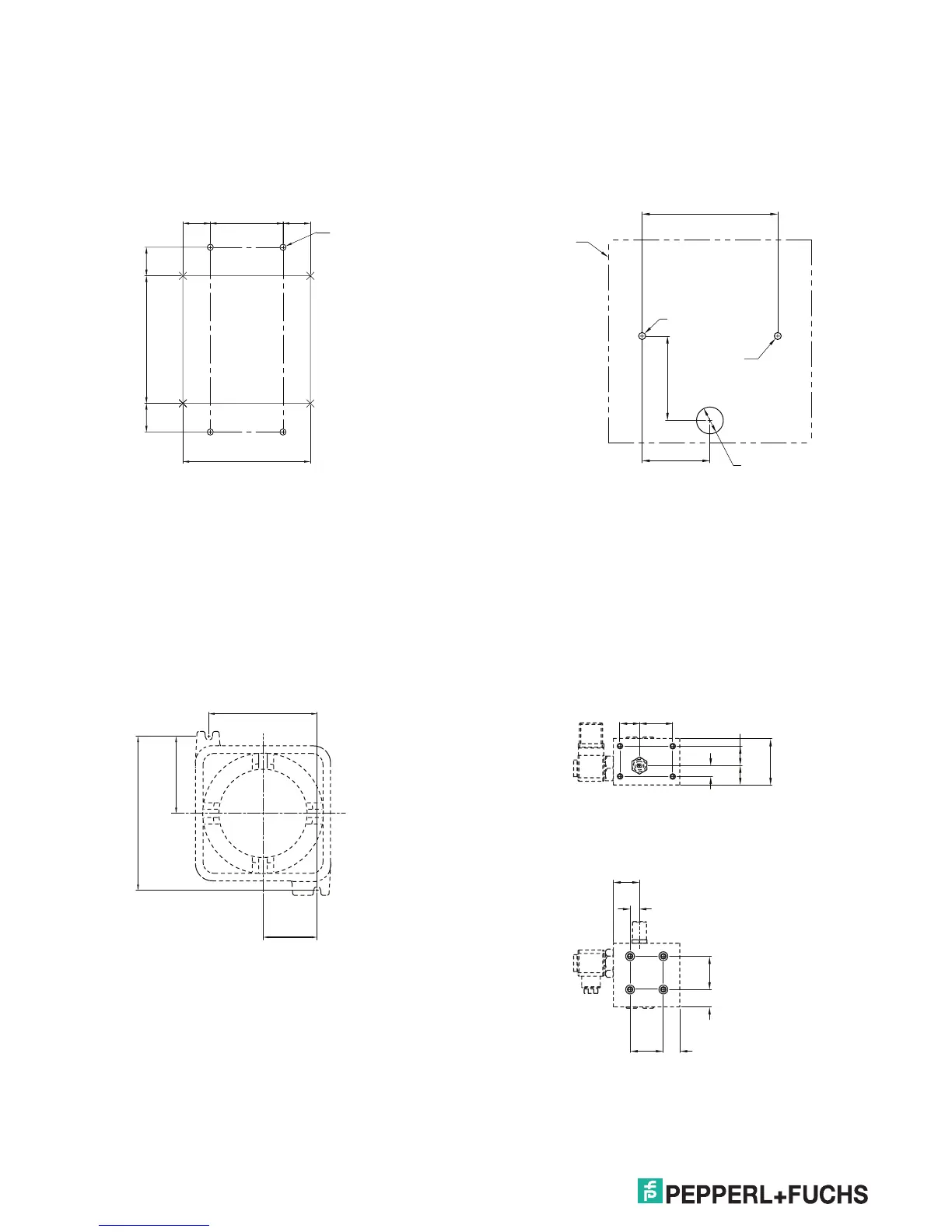

User Interface mounting template (panel mount)
EPCU mounting template
User interface mounting template (external mount)
Solenoid mounting template
86.5 mm
(3.40'')
24.5 mm
(0.95'')
24.5 mm
(0.95'')
53.5 mm
(2.10'')
16.5 mm
(0.65'')
4 x
ø 3.5 mm (0.15'')
16.5 mm
(0.65'')
86.5 mm
(3.40'')
83.0 mm
(3.25'')
41.5 mm
(1.65'')
51.5 mm (2.05'')
User
interface
(reference)
ø16.0 mm (0.65'')
connector
clearance
ø4.5 mm (0.15'')
mounting
hole
ø4.5 mm (0.15'')
mounting
hole
60.5 mm
(2.40'')
120.5 mm
(4.75'')
171.5 mm
(6.75'')
86.0 mm
(3.40'')
L
C
30.0 mm
(1.20")
10.5 mm
(0.40")
38.0 mm
(1.50")
19.0 mm
(0.75")
38.0 mm
(1.50")
22.0 mm
(0.85")
38.0 mm
(1.50")
12.5 mm
(0.50")
22.0 mm
(0.85")
22.0 mm
(0.85")
53.5 mm
(2.10")
20.5 mm
(0.80")
