IC-KP-B17-AIDA1
Product Description

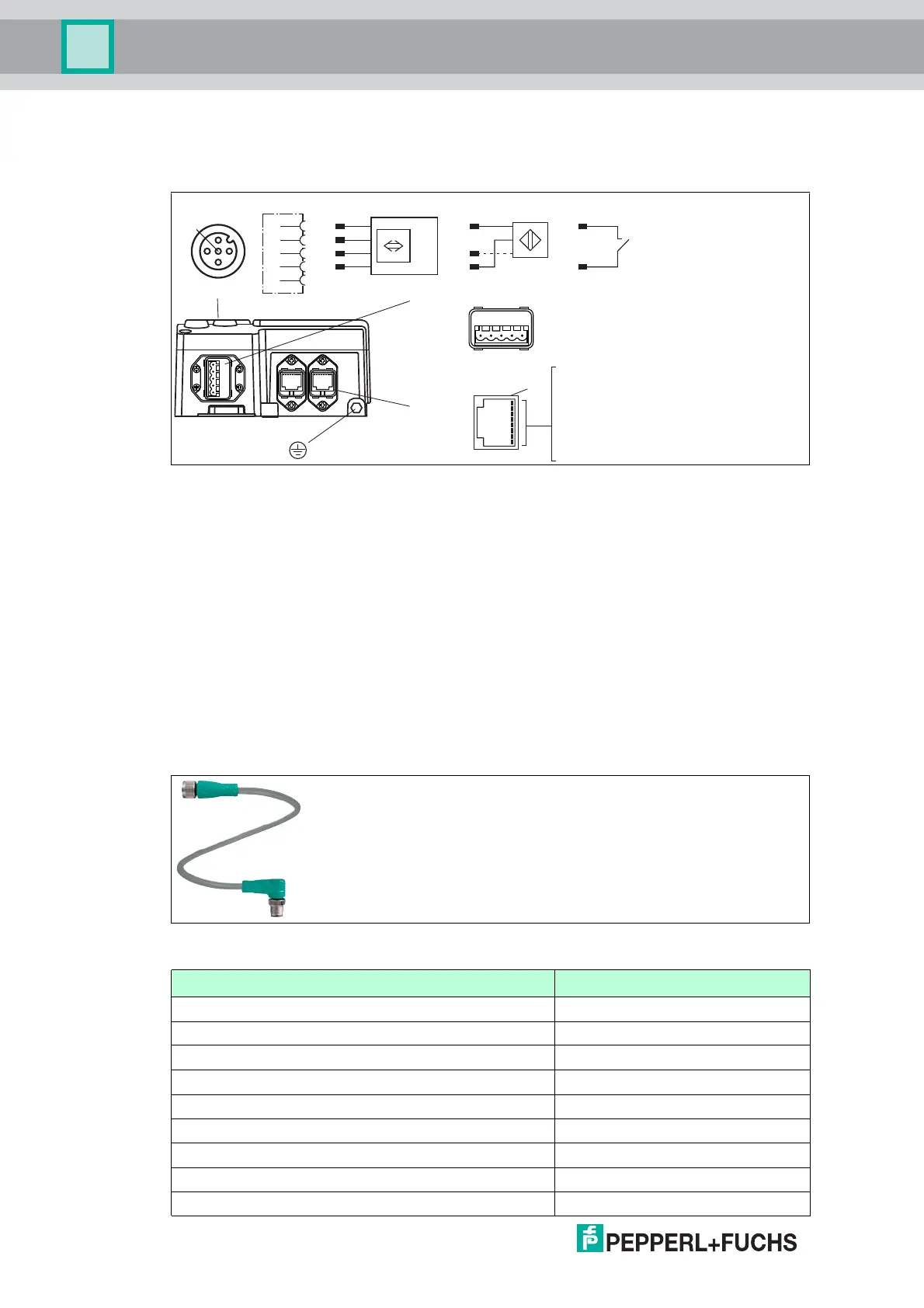

4.5 Interfaces and connections
The control interface IC-KP-B17-AIDA1 has the following interfaces and connections:
4.6 Delivery package
The delivery package contains:
■ 1 IDENTControl control interface
■ 1 quick start guide
■ 1 grounding screw (already fitted)
■ 1 serrated lock washer (already fitted)
■ 2 crimp connectors (already fitted)
4.7 Connection accessories
4.7.1 Connection cable for R/W heads and trigger sensors
Compatible connection cables with shielding are available for connecting the R/W heads and
trigger sensors.
Figure 4.2
+
A
-
+
-
B
1
2
3
4
5
1
5
3
2
4
PE
12345
signal
Protection earth
socket at housing read/write head trigger sensor trigger switch
voltage supply
TD+
TD-
RD+
not used
not used
RD-
not used
not used
Ethernet
1 = + 24 V
2 = GND
3 =
not used
4 = not used
5 = not used
Accessories Description
2 m long (straight female, angled male) V1-G-2M-PUR-ABG-V1-W
5 m long (straight female, angled male) V1-G-5M-PUR-ABG-V1-W
10 m long (straight female, angled male) V1-G-10M-PUR-ABG-V1-W
20 m long (straight female, angled male) V1-G-20M-PUR-ABG-V1-W
Field attachable female connector, straight, shielded V1-G-ABG-PG9
Field attachable male connector, straight, shielded V1S-G-ABG-PG9
Field attachable female connector, angled, shielded V1-W-ABG-PG9
Field attachable male connector, angled, shielded V1S-W-ABG-PG9
Dummy plug M12x1 VAZ-V1-B3
