Pepperl+Fuchs IC-KP-B17-AIDA1 - Power Supply; Network Cable to the Ethernet Interface

IC-KP-B17-AIDA1
Product Description
2014-02
15

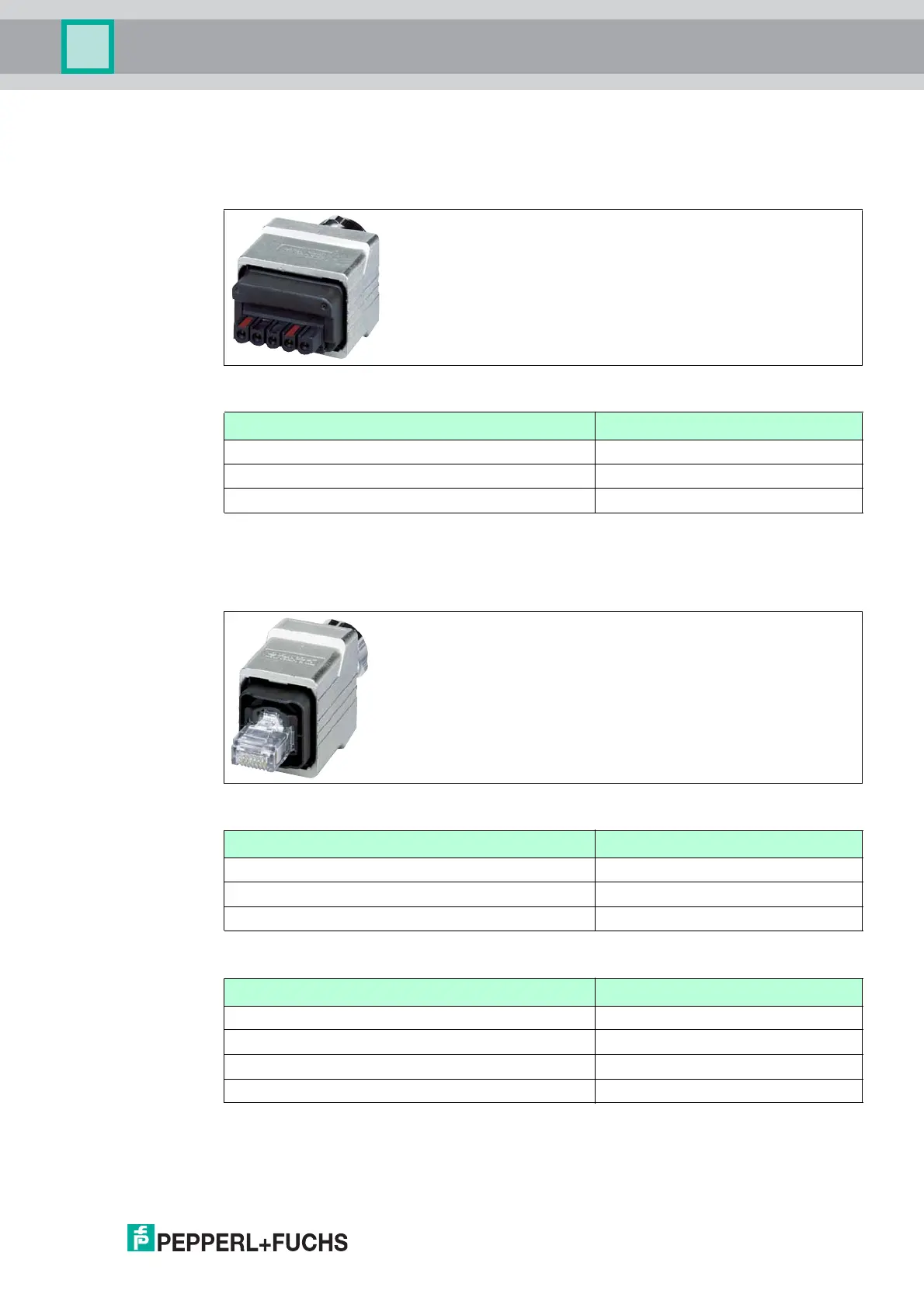

4.7.2 Power Supply
The IDENTControl IC-KP-B17-AIDA1 is connected to the power supply via a connector that
complies with the AIDA directive.
Figure 4.3
4.7.3 Network Cable to the Ethernet Interface
The IDENTControl IC-KP-B17-AIDA1 is connected to the network via a connector that
complies with the AIDA directive.
Figure 4.4
Connector Assignment
Accessories Designation
Field attachable connector for power supply ICZ-AIDA1-MSTB
MSTB connecting cable to M12 connector ICZ-AIDA1-MSTB-0.2M-PUR-V1-G
MSTB connecting cable to open cable end ICZ-AIDA1-MSTB-5M-PUR
Accessories Designation
Field attachable connector for RJ45 ICZ-AIDA1-V45
RJ-45 connecting cable, D-coded to M12 ICZ-AIDA1-V45-0,2M-PUR-V1D-G
Stopping plugs ICZ-AIDA1-B
Signal Marking on connector
TD+ Ye ll ow
TD- Orange
RD+ White
RD- Blue
