IC-KP-B17-AIDA1
Technical Specifications
2014-02
101
9 Technical Specifications

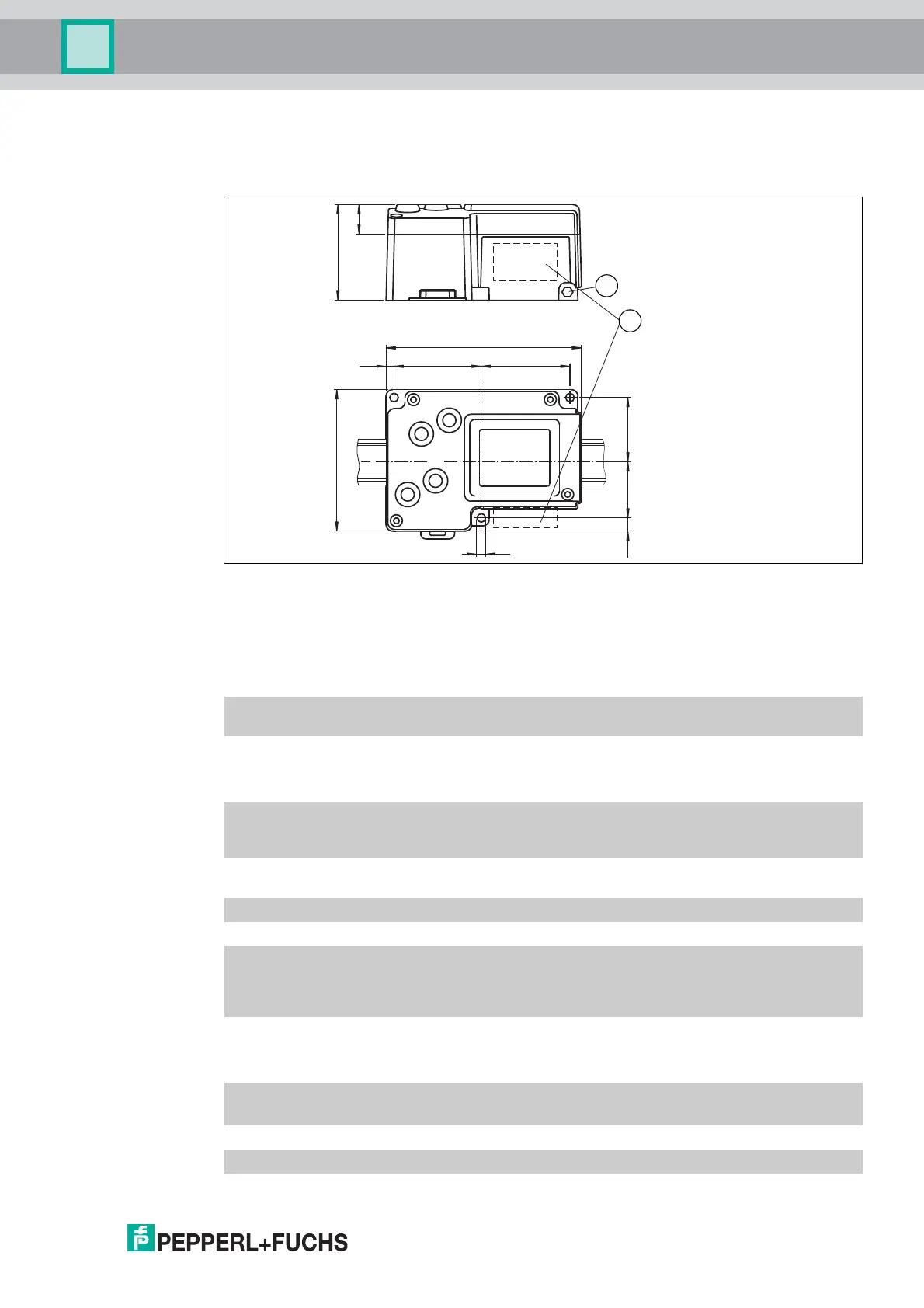

9.1 Dimensions
9.2 General Data
Ge n e r a l D a ta
Displays/Controls
Electrical Data
1 Ground
2 Connector array
148
66667
107
22.5
494210
73
6.5
1
2
3
4
2
1
Number of read/write
heads
Max. 4
alternatively 2 read/write heads and 2 trigger sensors
UL file number E87056
LEDs CH1, CH2, CH3,
CH4
Status display for read/write heads
Green: command to read/write head active
Yellow: approx. 1 second if command is executed successfully
PWR/ERR LED Green: power on
Red: PROFINET bus error
Link1/Link2 LED Green: connection to the network
Tra ffi c LE D Green: flashes at the same speed as the data being sent
LC display Two-line multifunction display with 12 characters per line
Configure the control interface and display the connected
read/write heads as additional pictograms
Simple direct command input and addressing possible
Buttons 4 buttons: ESC, up, down and return
Rated operational voltage
U
e
20–30 V DC, PELV
Ripple 10 % at 30 V DC
Current consumption 8 A incl. read/write heads
