2014-02
50
IC-KP-B17-AIDA1
Commands

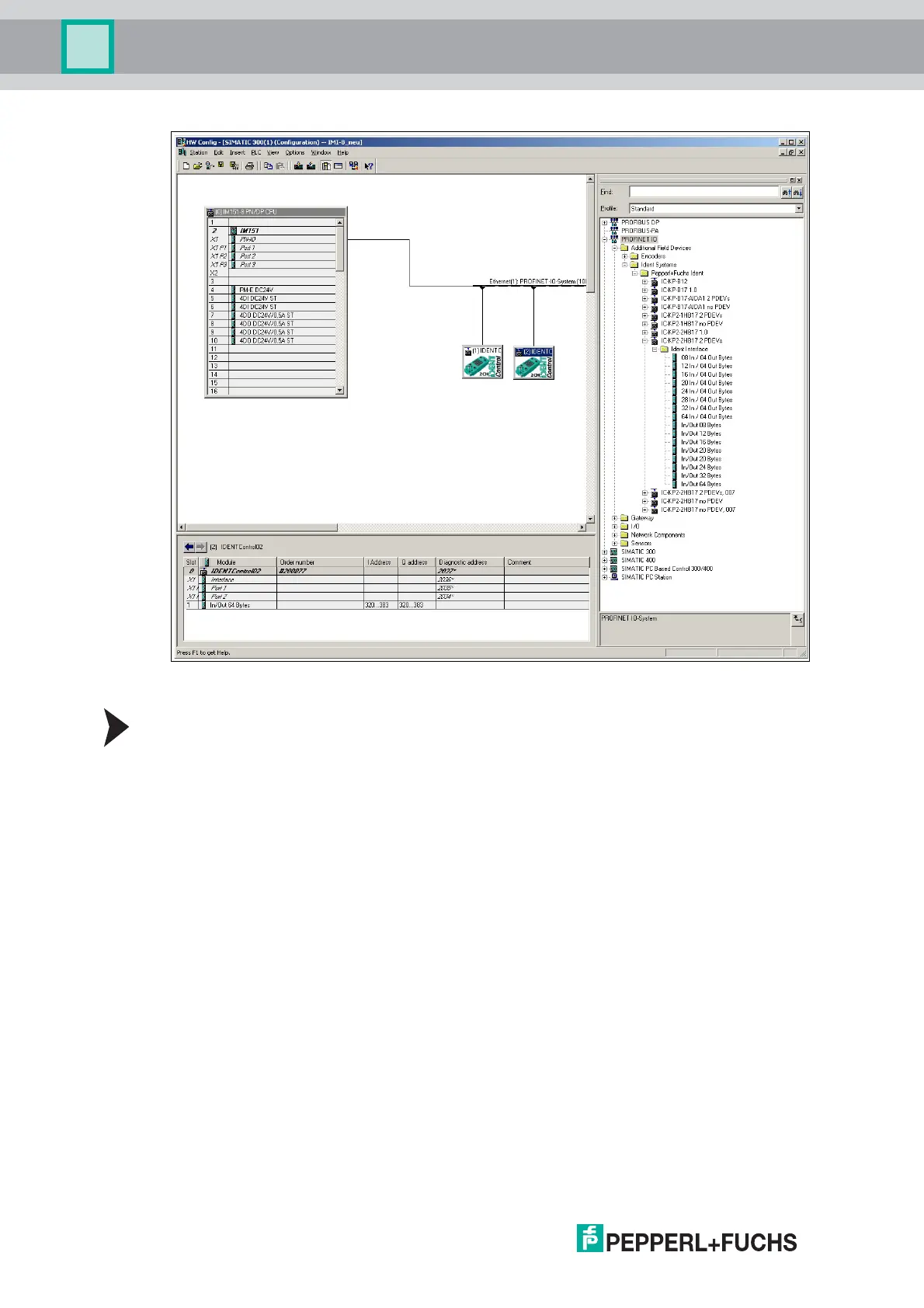

Figure 7.2 HW Konfig / Siemens Step7
Opening the topology editor:
1. Open the topology editor by right-clicking the Ethernet connection and then clicking the
"PROFINET IO Topology …" menu item.
