K23-SSI/USB/25B-C | OPERATING SOFTWARE OS6.0
28
[10] - 64x
33,554,431 Hz
3,355,443.1 Hz
335,544.31 Hz
33,554.431 Hz
[11] - 128x
16,777,215 Hz
1,677,721.5 Hz
167,772.15 Hz
16,777.215 Hz
[12] - 256x
8,388,607 Hz
838,860.7 Hz
83,886.07 Hz
8388.607 Hz
[13] - 512x
4,194,303 Hz
419,430.3 Hz
41,943.03 Hz
4194.303 Hz
[14] - 1024x
2,097,151 Hz
209,715.1 Hz
20,971.51 Hz
2097.151 Hz
[15] - 2048x
1,048,575 Hz
104,857.5 Hz
10,485.75 Hz
1048.575 Hz
[16] - 4096x
524,287 Hz
52,428.7 Hz
5242.87 Hz
524.287 Hz

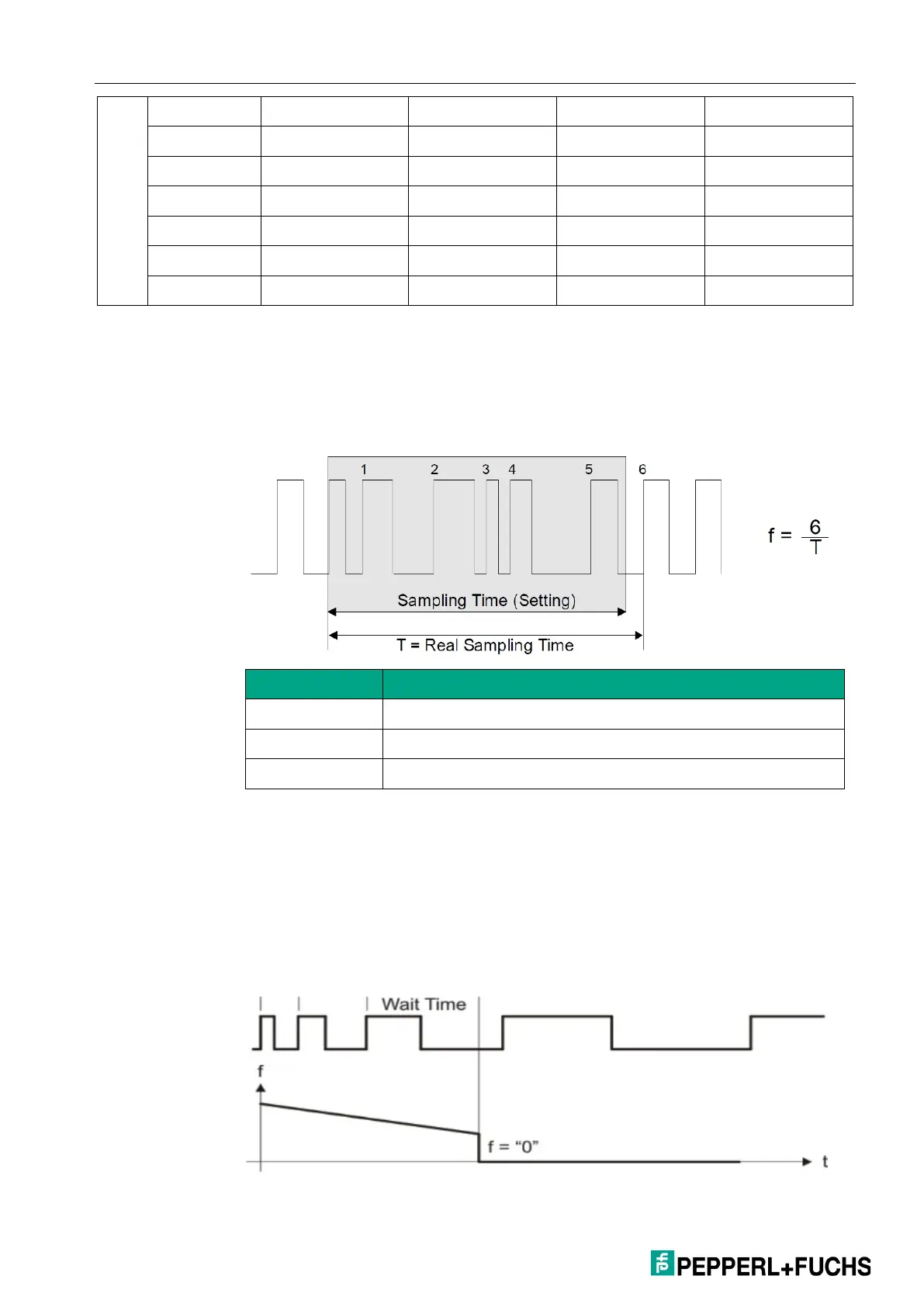

SAMPLING TIME 2 (S)
The set value is the minimum measuring time (for channel B) in seconds. The
sampling time acts as a filter for irregular frequencies. This parameter directly
affects the reaction time of the device.
Value
Function
0.001
Minimum measuring time in seconds
0.1
Default value
9.999
Maximum measuring time in seconds
WAIT TIME 2 (S)
The set value is the zero setting time. This parameter defines the duration
of the lowest frequency, or the waiting time between two rising edges on
channel B, at which the device detects the 0 Hz frequency. Frequencies
with a duration greater than the set WAIT TIME 2 are evaluated as
frequency = 0 Hz.
