VisuNet Control Center 6
VisuNet CC Setup
2023-05
17
Figure 5.11
Click "Remote Monitors" in the navigation menu to view an overview of all devices. "Tile view"
is the default mode. This mode displays a live screenshot of each device.
2 Ribbon toolbar
On the toolbar, all available functions that can be performed in the mode currently in
use, are grouped together.
For detailed information on the icons and their functions, .
3Navigation menu
• The navigation menu lists all RMs/BTCs, that have been found during a network scan or
have been added manually.
• The navigation menu list shows offline RMs/BTCs, that have been added to the project.
• The navigation menu allows RMs/BTCs to be added to group folders. With this feature,
RMs/BTCs can be grouped according to their location.

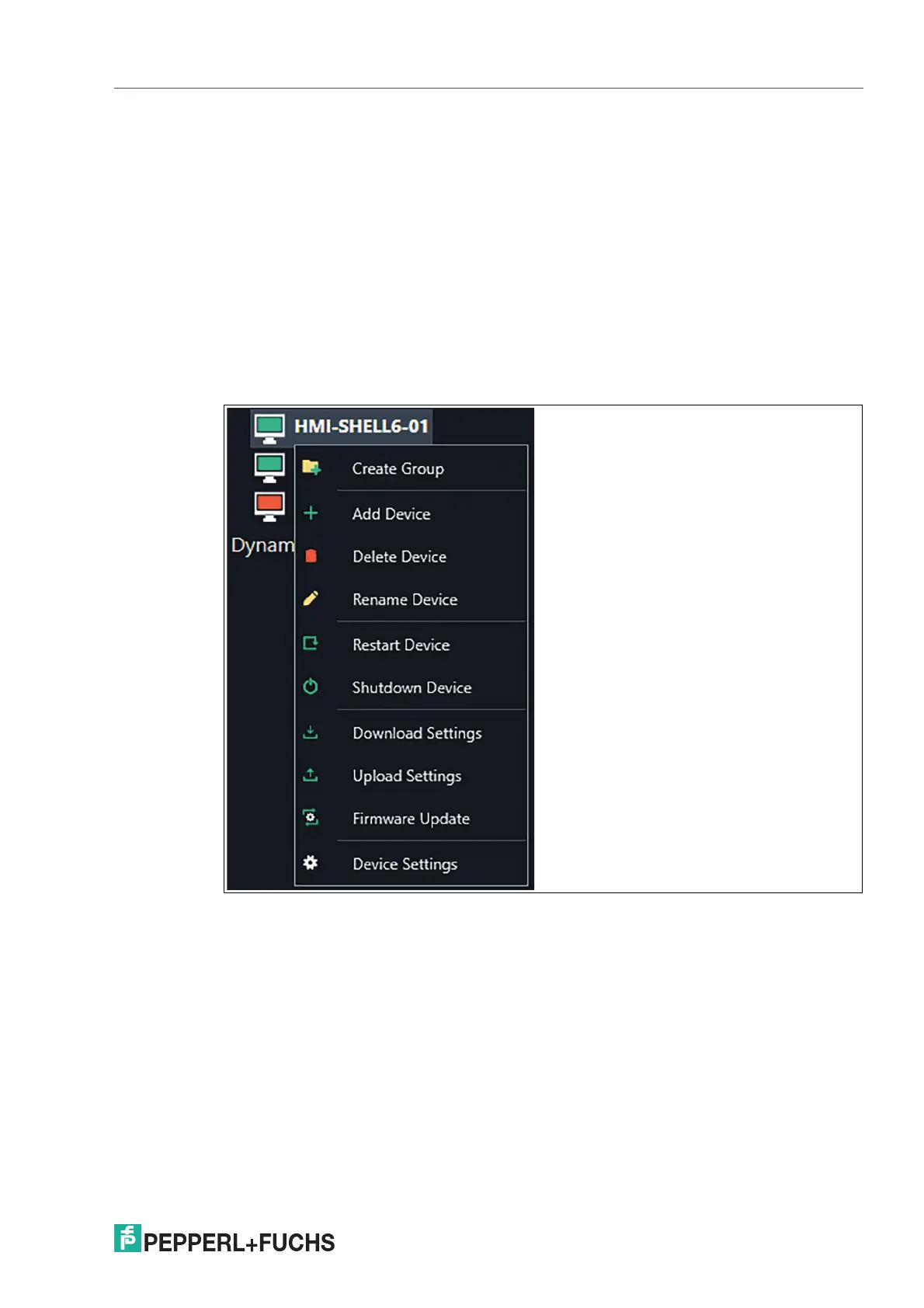

• The devices can be right-clicked to open a top down menu with quick access.
4Main screen: In the center of the user interface, the main information is displayed.
Based on the mode currently in use, the information for a RM/BTC, a group of
RMs/BTCs or a general device overview either as list or tile view is presented.
