VisuNet Control Center 6
Manage (Home)
6 Manage (Home)
In this chapter group actions and features are explained. The following actions can be executed
when the remote monitor overview and the home tab are activated.

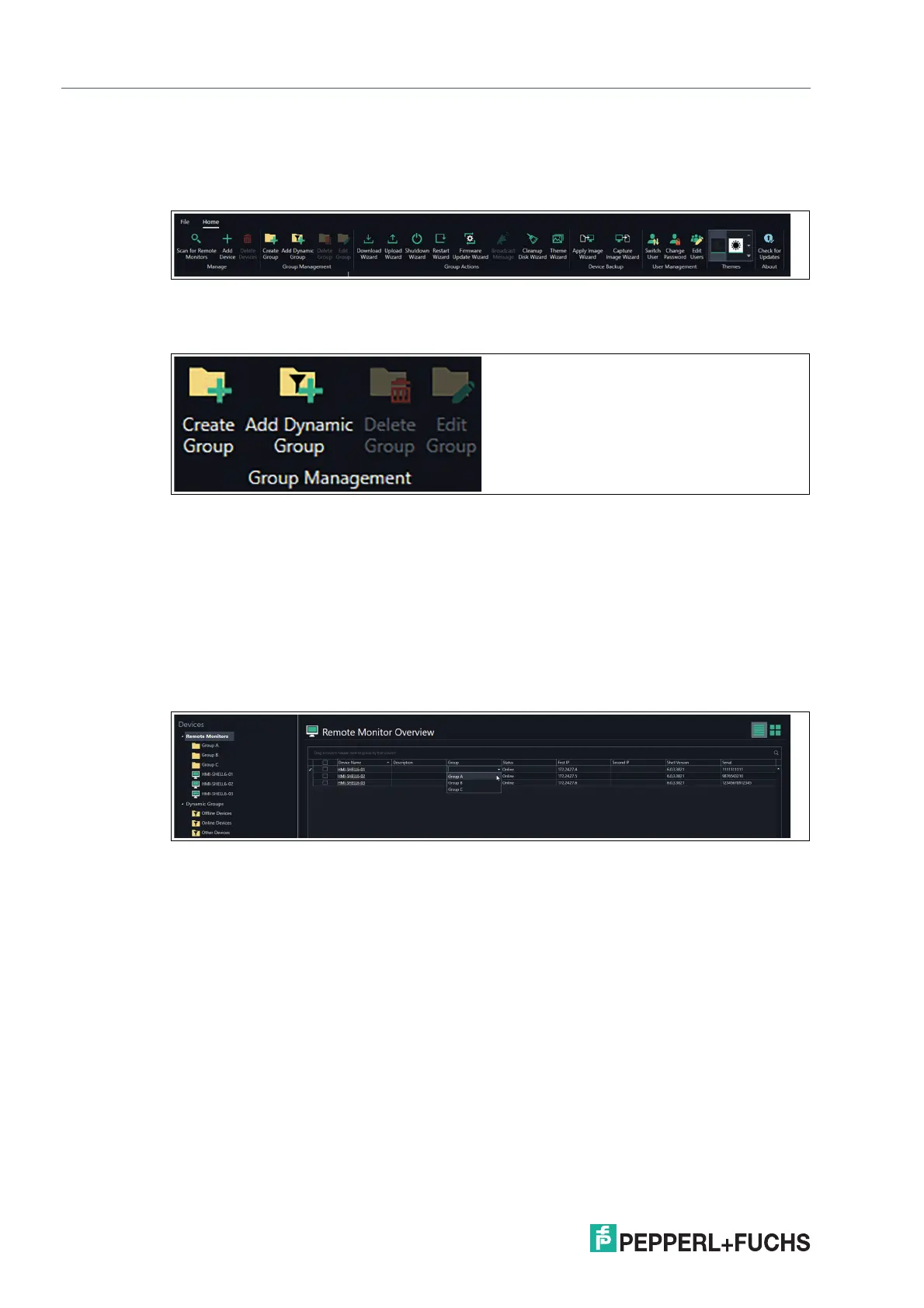

Figure 6.1
6.1 Group Management
Figure 6.2
The Group Management helps you to organize your remote monitors. The different groups are
the basis for the group actions.
Static Groups
An RM / BTC may be assigned to either one or zero groups. These groups are represented by
a folder in the navigation menu. To assign a device to a group, click “Remote Monitors” in the
navigation menu from list view mode. Click the group cell for the RM / BTC that you would like
to assign, and assign it to the group you would like it to be in. Alternatively, click, hold, and drag
an RM / BTC into a group folder on the navigation menu. To keep the assignment of an RM /
BTC to a group, you must save the project.
Figure 6.3 Static groups
