6 Components and Specifications
CCD Camera on page 37
X-Ray System and Components on page 37
X-Ray Scintillation Module on page 39
X-Ray System Control Panel on page 40
Key Selector Switch on page 41
Imaging Chamber on page 41
Optics on page 42
Optical Filter Wheel on page 42
Acquisition Computer on page 43
Environmental Requirements on page 44
The IVIS
®
Lumina XRMS Series III is an imaging system that consists of a charged coupled device
(CCD) camera which can image animal subjects using three modalities: bioluminescence,
fluorescence, and X-ray. IVIS Lumina XRMS Series III includes:
A camera.
An imaging chamber with controlling electronics.
An X-ray source and detector, including controls and safety systems.
A Fluorescence Module, including excitation and emission filters.
The system is controlled by a pre-configured computer that runs Living Image
®
software. There are
no user-serviceable parts in the IVIS Lumina XRMS Series III. See Chapter 8 on page 56 for more
details on the fluorescence equipment.

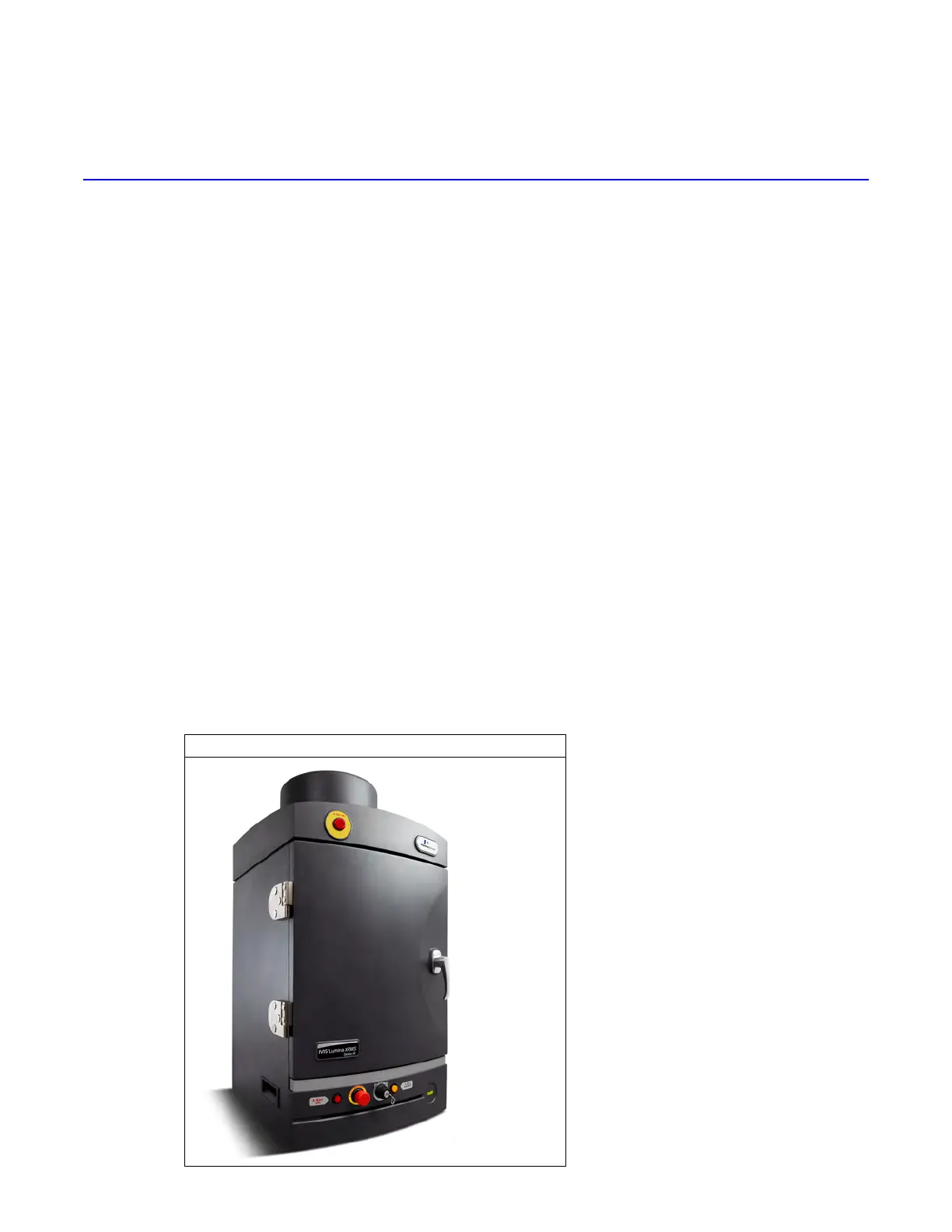

Figure 6.1 IVIS Lumina XRMS Series III Imaging System
