7. Click OK in the software prompt (Figure 7.7 on page 50).
Moving the Scintillation Plate to the Lower Position
Put the scintillation plate and cover in the lower position when imaging small subjects such as mice
(2.8 cm vertical height maximum).
To move the scintillation plate to the lower position:
1.
Remove the check mark next to "Large Animal" in the control panel (Figure 7.7).
The scintillator assembly moves to the service position. The software prompts you to move the
scintillator assembly to the lower position.
2. Remove the locking screw using the hex wrench provided with the imaging system (Figure 7.7).

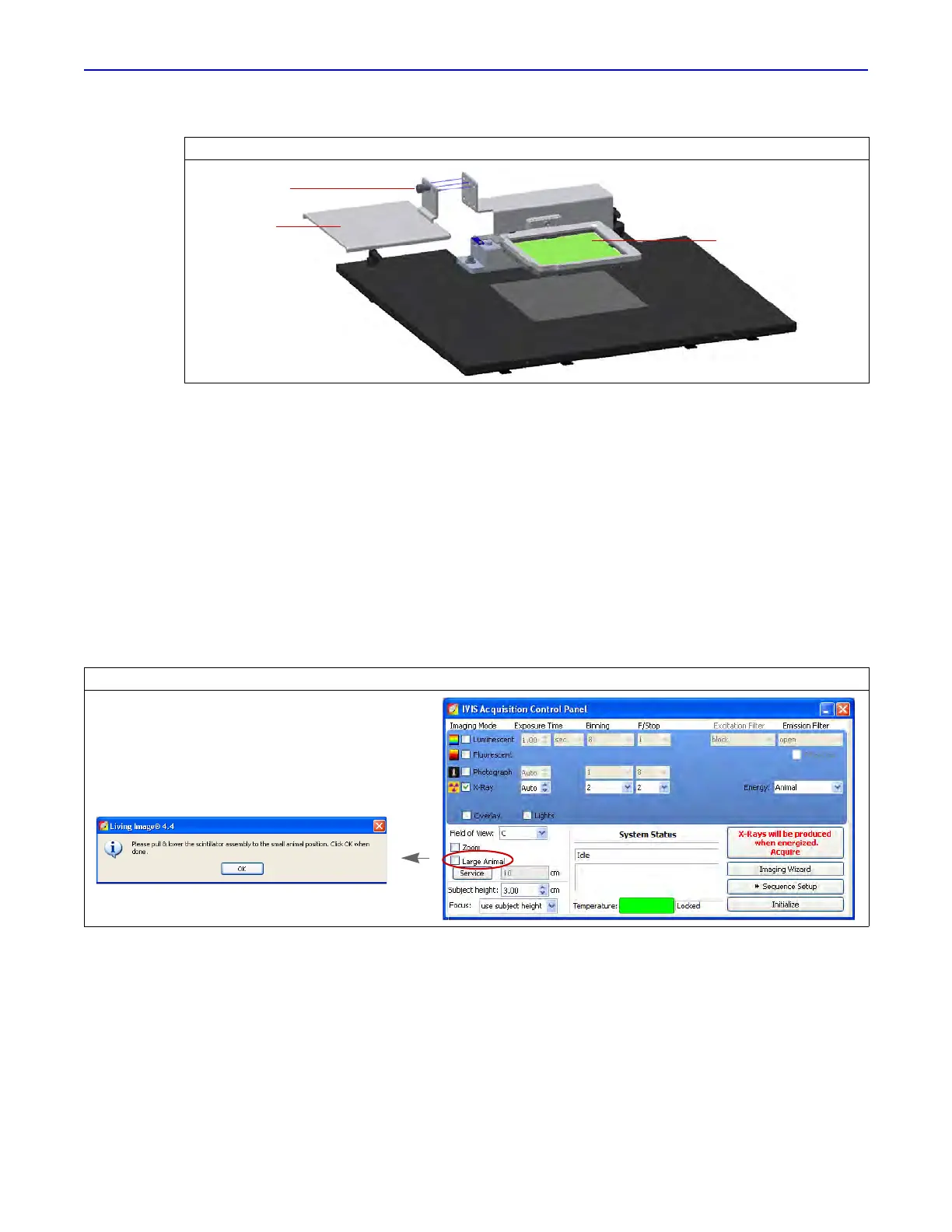

Figure 7.11 Moving the Scintillation Plate Cover to Upper Position
Figure 7.12 Control Panel
Thumb screw
Scintillation
plate cover
Scintillation plate
To Next Page
