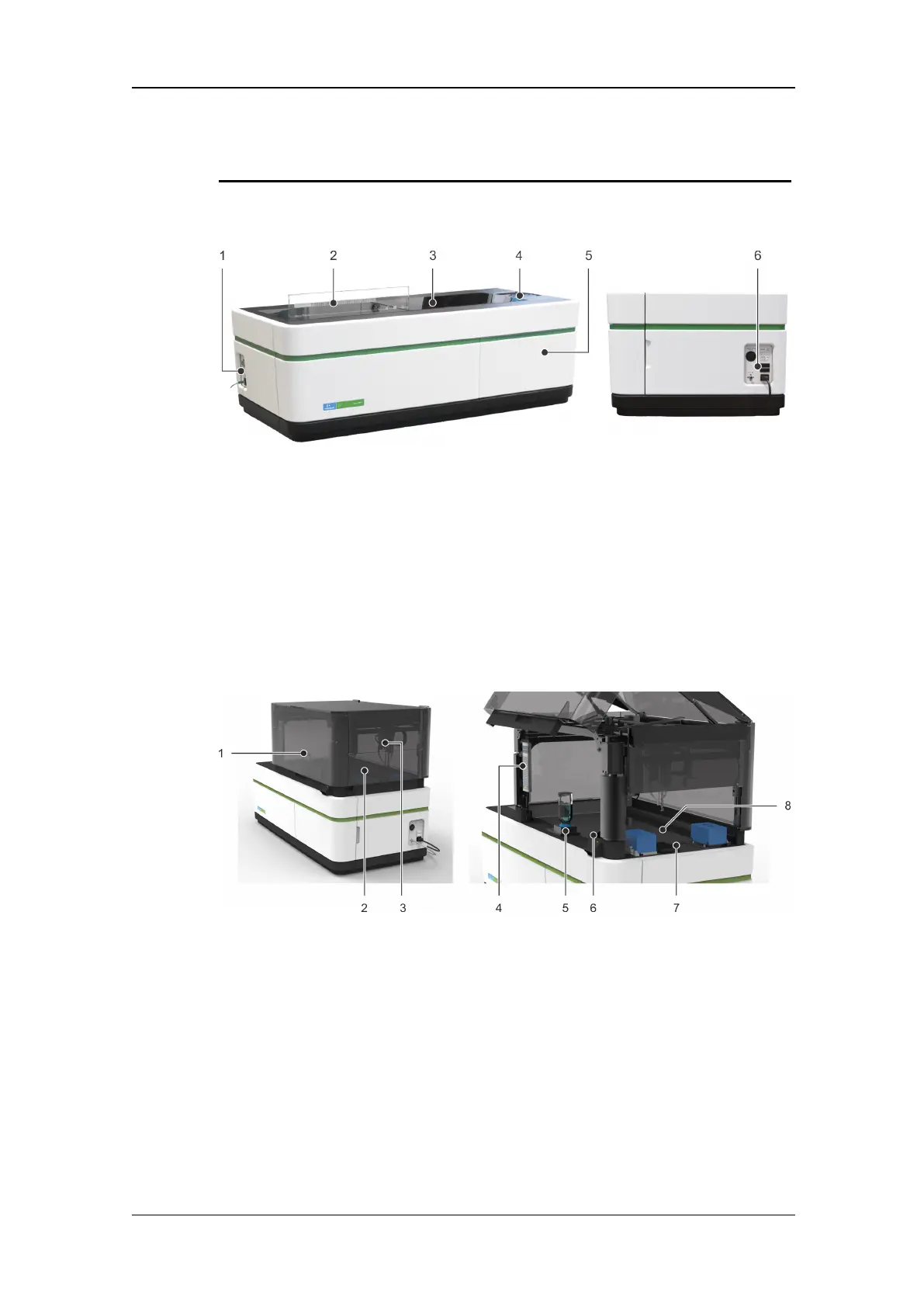

2.1 Instrument Overview
Base Instrument
1. Controls and connections (left)
Network connection, power switch
2. Status display
3. Lid
Access to objectives and sample
chamber
4. Transfer position
Load/eject sample plate
5. Front door
Access to bottles of water immersion
system / humidity control
6. Controls and connections (right)
Manual release for lid, CO
2
connection,
mains connection, fuses
Optional Pipettor
1. Pipettor housing front door
Access to pipettor, instrument deck
and instrument lid
2. Pipettor housing side door
Access to transfer positions and tip
boxes (also by robot in case of
automated env.)
3. Pipettor head
4. Status display
5. Reagent reservoirs
6. Tip disposal
7. Transfer positions and tip boxes
8. Instrument deck and instrument lid
