2.7 Gas Requirements (optional)
If your Opera Phenix Plus is equipped with the Environmental Control option, a carbon
dioxide supply (including accessories) has to be provided by the customer as
specified:
l CO
2
cylinder or CO
2
connection within 2 m range of the instrument's installation
location
o
CO
2
purity: ≥ 99.5 %, particle-free
o
CO
2
flow: > 15 l/h
l Pressure controller (set working pressure to 3 bar)
l Stop valve (near connection point)
l 6 mm pneumatic air fitting
(outer diameter of the instrument's CO
2
tubing is 6 mm)
o
If the customer's CO
2
supply connector is not 6mm,
a suitable adapter must be installed by authorized
personnel.
o
Example distributor e.g. for G1/4" male (1/4" to 6 mm adapter) would be:
www.legris.com, Part no. 36140613
This distributor offers also other standard fittings for adaptation to 6 mm
tubing.

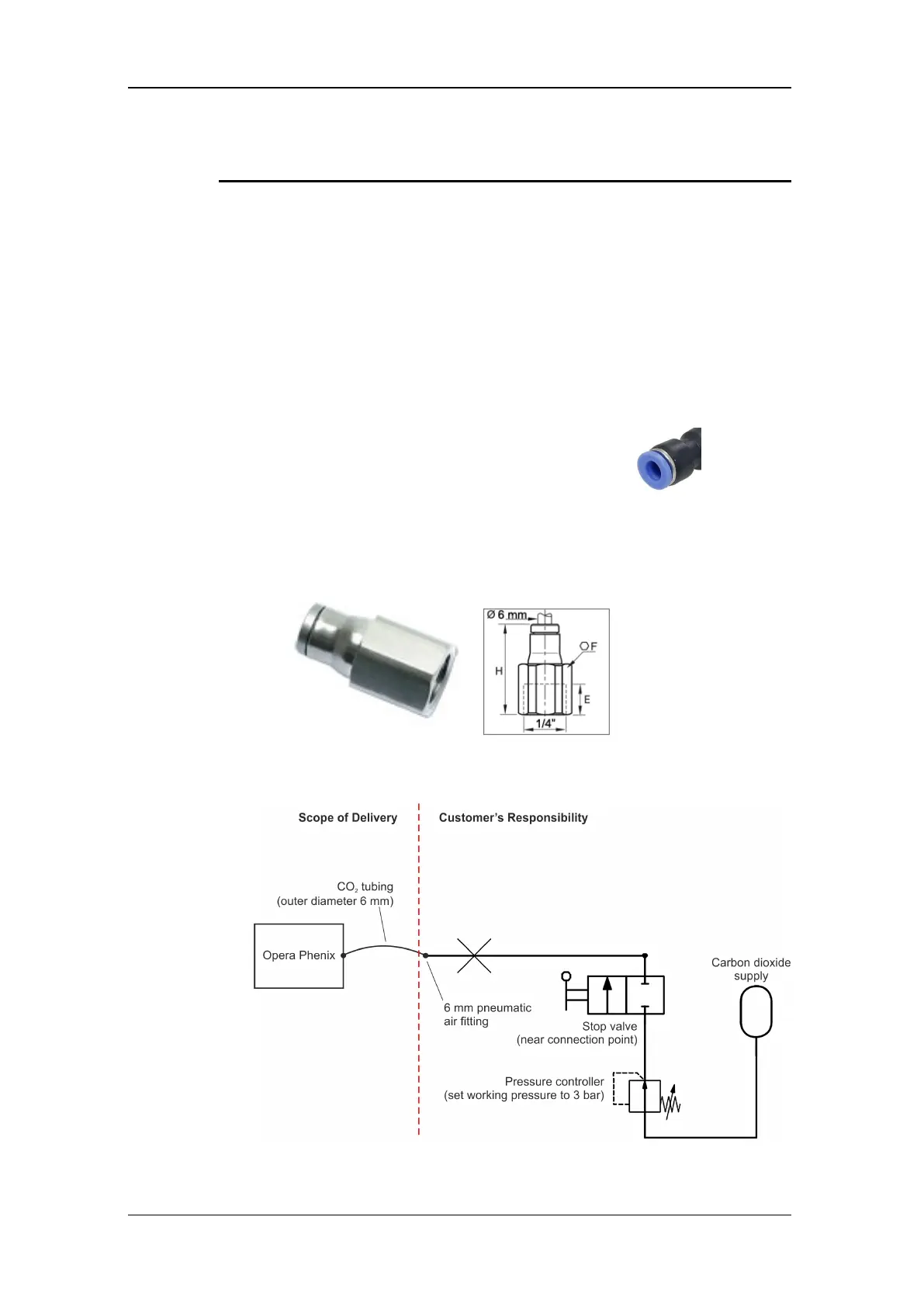

Connection diagram
2 Requirements
Opera Phenix Plus – Site Readiness 23
