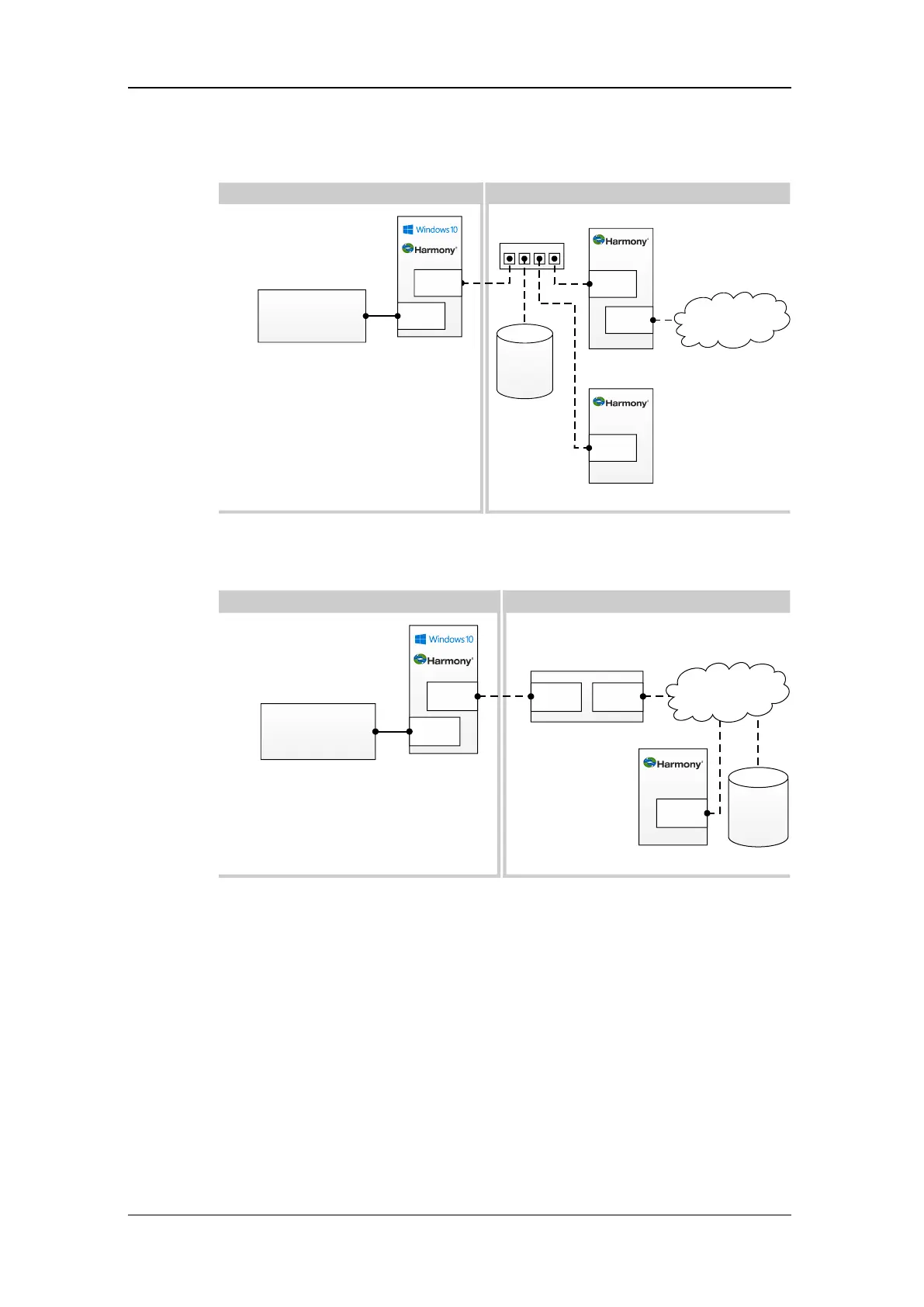

3.1.3.2 Office PC as interface (big solution)
PerkinElmer
HCS Instrument
Scope of delivery Customer's responsibility
Office PC 1
NIC1
NIC2
DHCP
Switch
Office PC 2
NIC
Company
Network
NAS
172.16.0.2
172.16.0.3
= 1 Gbit
= 1 Gbit
= 1 Gbit
= 1 Gbit
NIC1
192.168.1.1
NIC2
172.16.0.1
Harmony PC
NIC: Network Interface Card – NAS: Network Attached Storage
3.1.3.3 Router
PerkinElmer
HCS Instrument
NIC1
192.168.1.1
NIC2
172.16.0.1
Harmony PC
Scope of delivery Customer's responsibility
NAS
NIC
DHCP
Office PC
Router*
DHCP
Company
Network
* Special configuration required
172.16.0.2
= 1 Gbit
= 1 Gbit = 1 Gbit
= 1 Gbit
NIC: Network Interface Card – NAS: Network Attached Storage
