KENR9126 147
Troubleshooting Section
g02256933

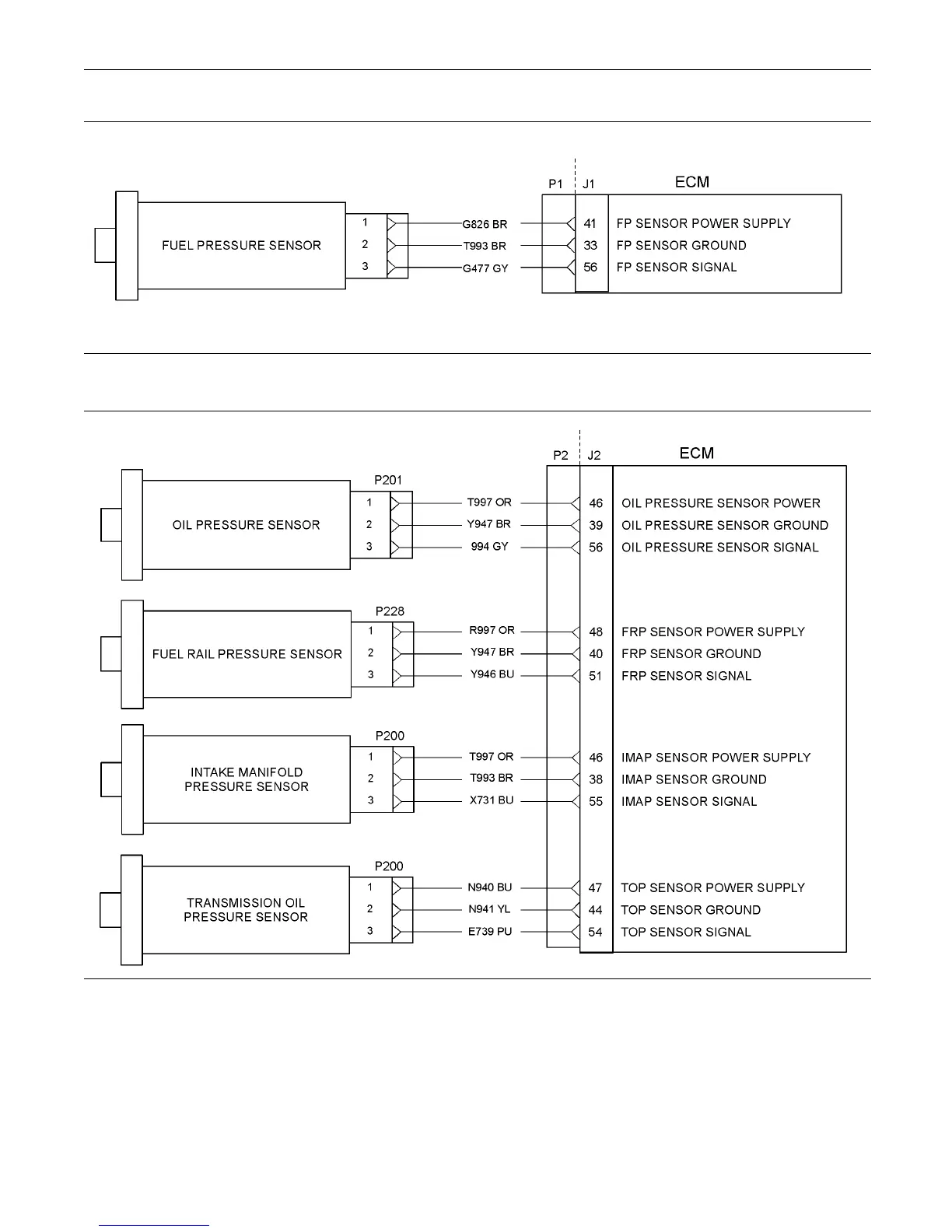

Illustration 46
Typical ex ample of the sc hematic for the sensors
g02192913
Illustration 47
Typical ex ample of the sc hematic for the sensors
