148 KENR9126
Troubleshooting Section
g02256973

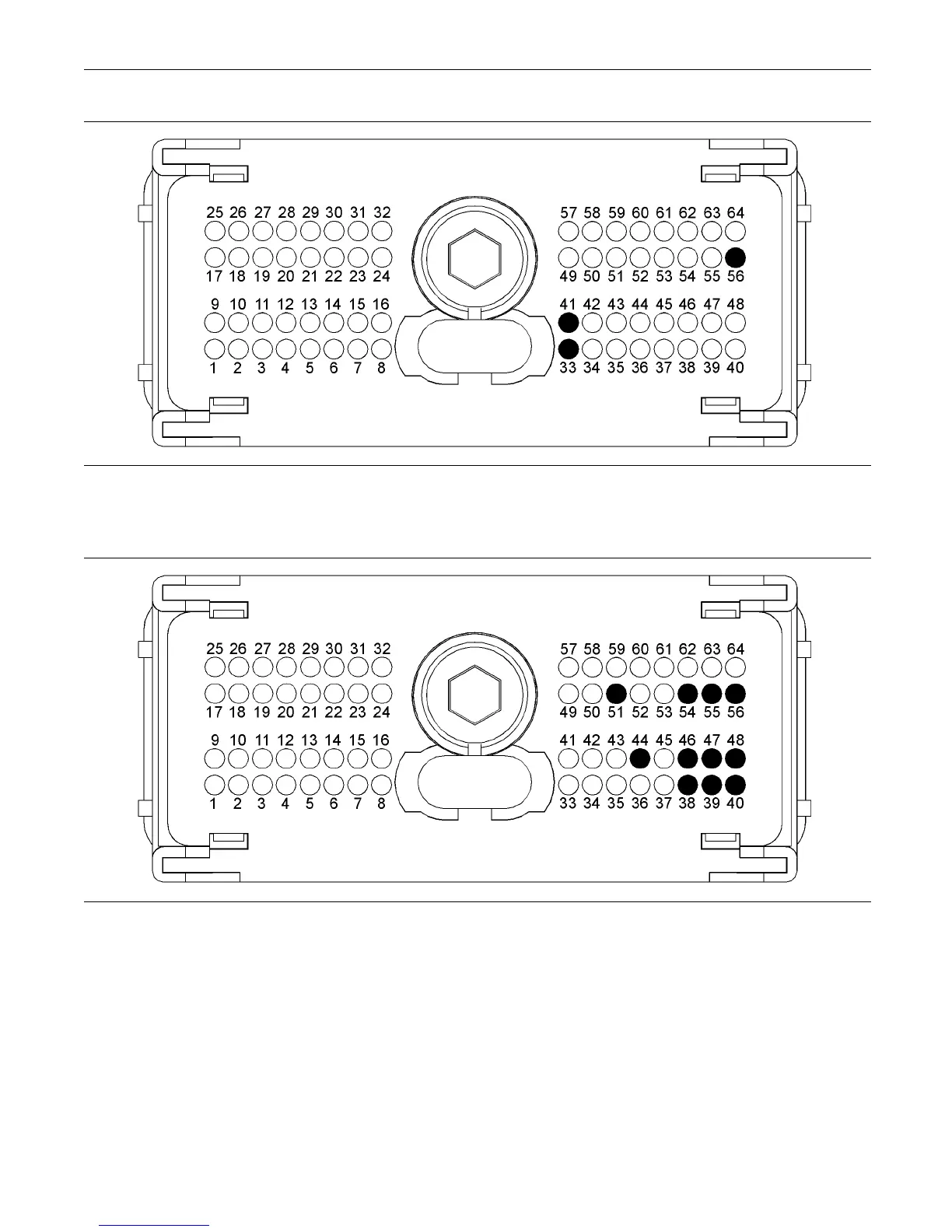

Illustration 48
Typical view of the P1 pressure sensor pin locations
(33) Ground (GND) Fuel Rail Pressure
Sensor
(41) Voltage supply (+5 VDC) Fuel Rail
Pressure Sensor
(56) Signal (SIG) Fuel Rail Pressure Sensor
g02192914
Illustration 49
Typ
ical view of the P 2 pressure s ensor pin locations
(38) Ground (GND) Intake Manifold Pr essure
Sensor
(39) Ground (GND) Oil Pressure Sensor
(40) Ground (GND) Fuel Rail Pressure
Sensor
(44) Gr ound (GND) Transmission O il
Pressure Sensor
(46) Voltage supply (+5 VDC ) Intake
Manifold P ressure S ensor and O il
Pressure Sensor
(47) Voltage supply (+5 VDC) Transmission
Oil P ressure Sensor
(48) Voltage supply (+5 VDC) Fuel Rail
Pressure Sensor
(51) Signal (SIG) Fuel Rail Pressure Sensor
(54) Signal (S IG) Transmission O il Pressure
Sensor
(55) Signal (SIG) Intake Manifold Pressure
Sensor
(56) S ignal (SIG) O il Pr essure Sens or
