KENR9126 161
Troubleshooting Section
g02199533
Illustr
ation 59

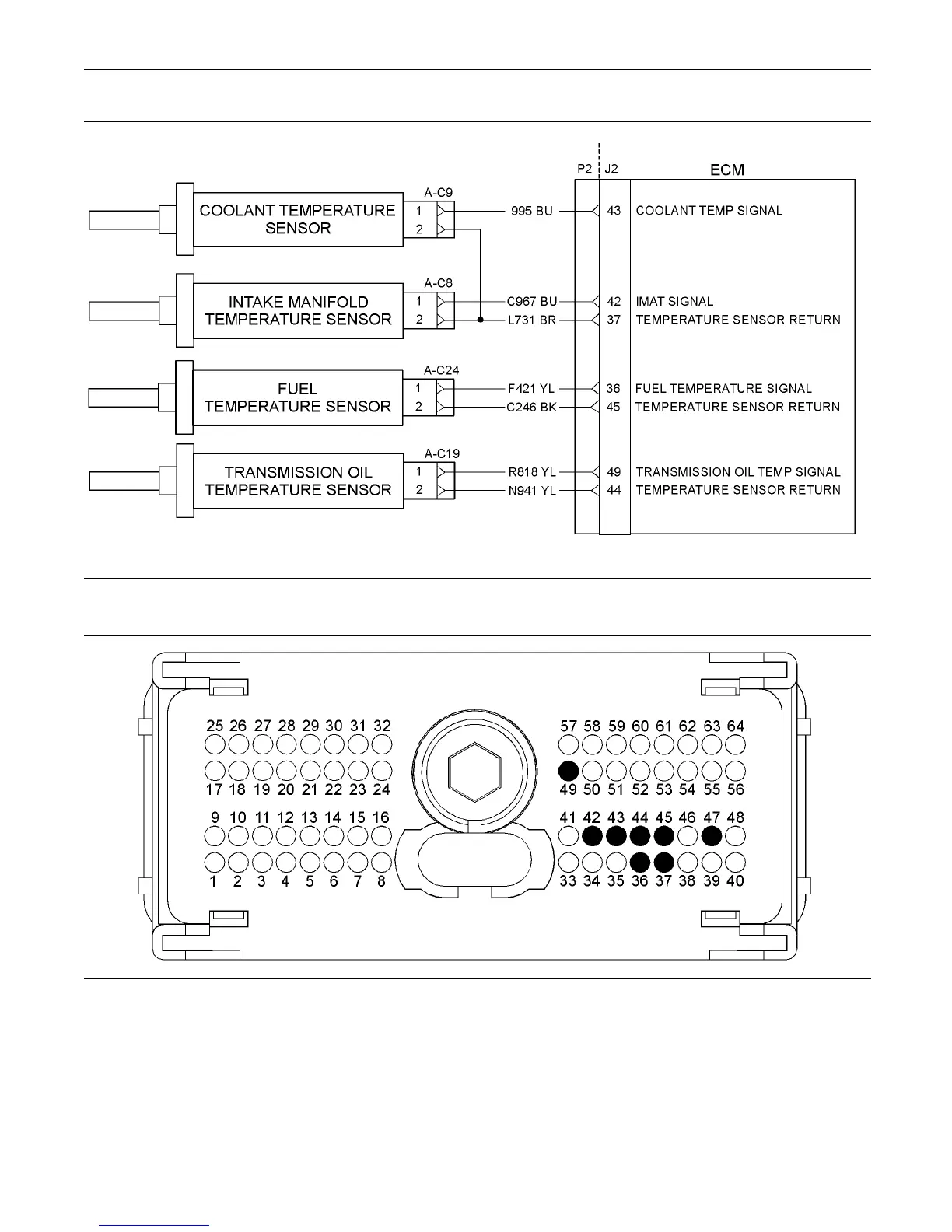

Schematic for the temperature sensors
g02199535
Illustration 60
Typical view of the P2 pin locations for the temperature sensors
(36) Signal (SIG) Fuel Temperature Sens or
(37) Ground (GND) Intake M anifold Air
Temperature Sensor and Coolant
Temperature Sensor
(42) Signal (SIG) Intake Manifold Air
Temperature Sensor
(43) Signal (SIG) Coolant Tem perature
Sensor
(44) Ground (GND) Transmission Oil
Temper ature Sensor
(45) G round (G ND) Fuel Te mperature
Sensor
(49) Signal (SIG) Transmission Oil
Temperature S ensor
To Next Page
