11

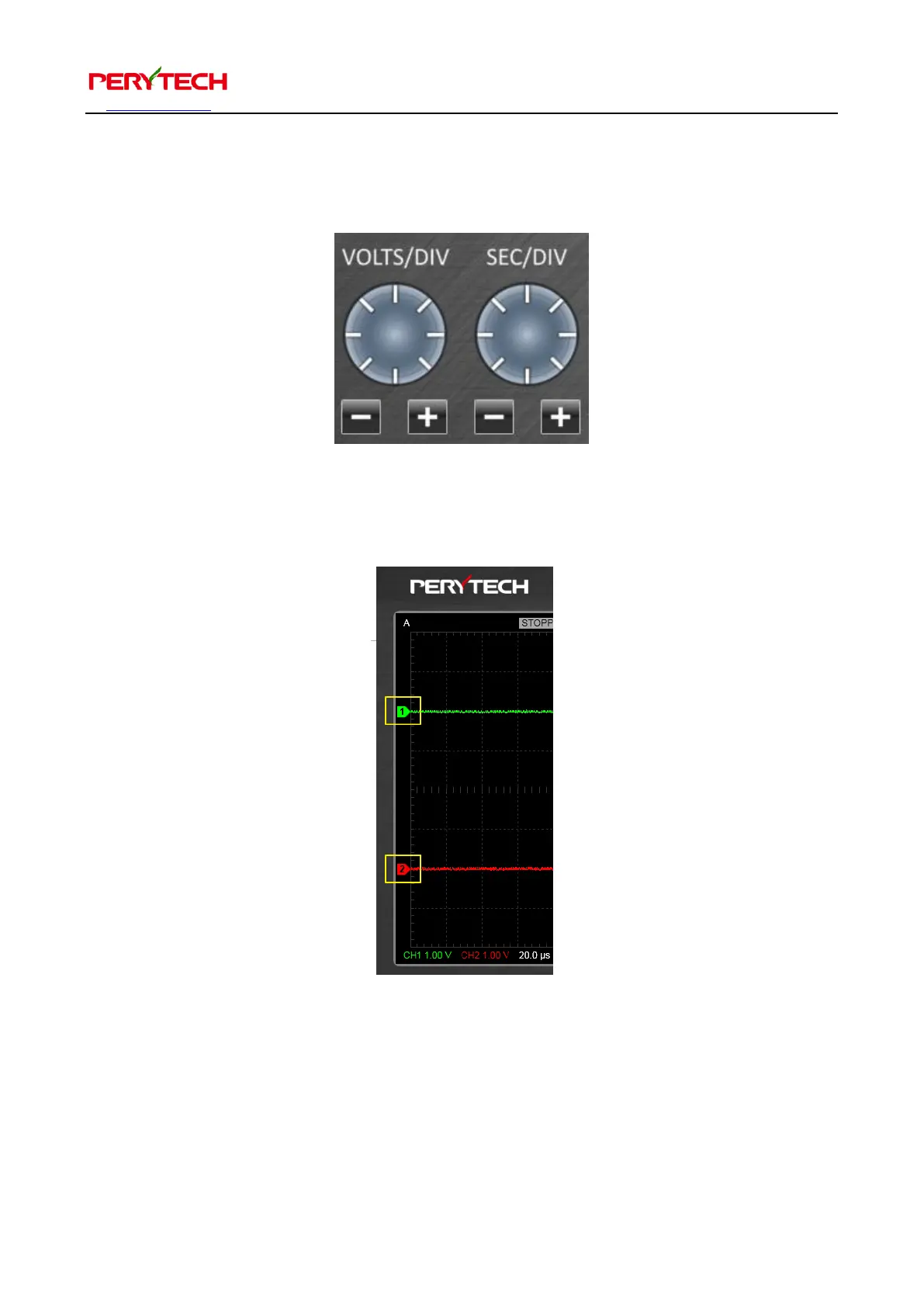

the Channel 1 voltage range. When CH2 is selected, the adjusted voltage range is the
Channel 2 voltage range. The time range is controlled with all the channels.
The Mark 1 and 2 tags on the left side of the screen is the channel’s benchmark point.
The mouse can be used to drag the tag up and down to move the wave pattern.
