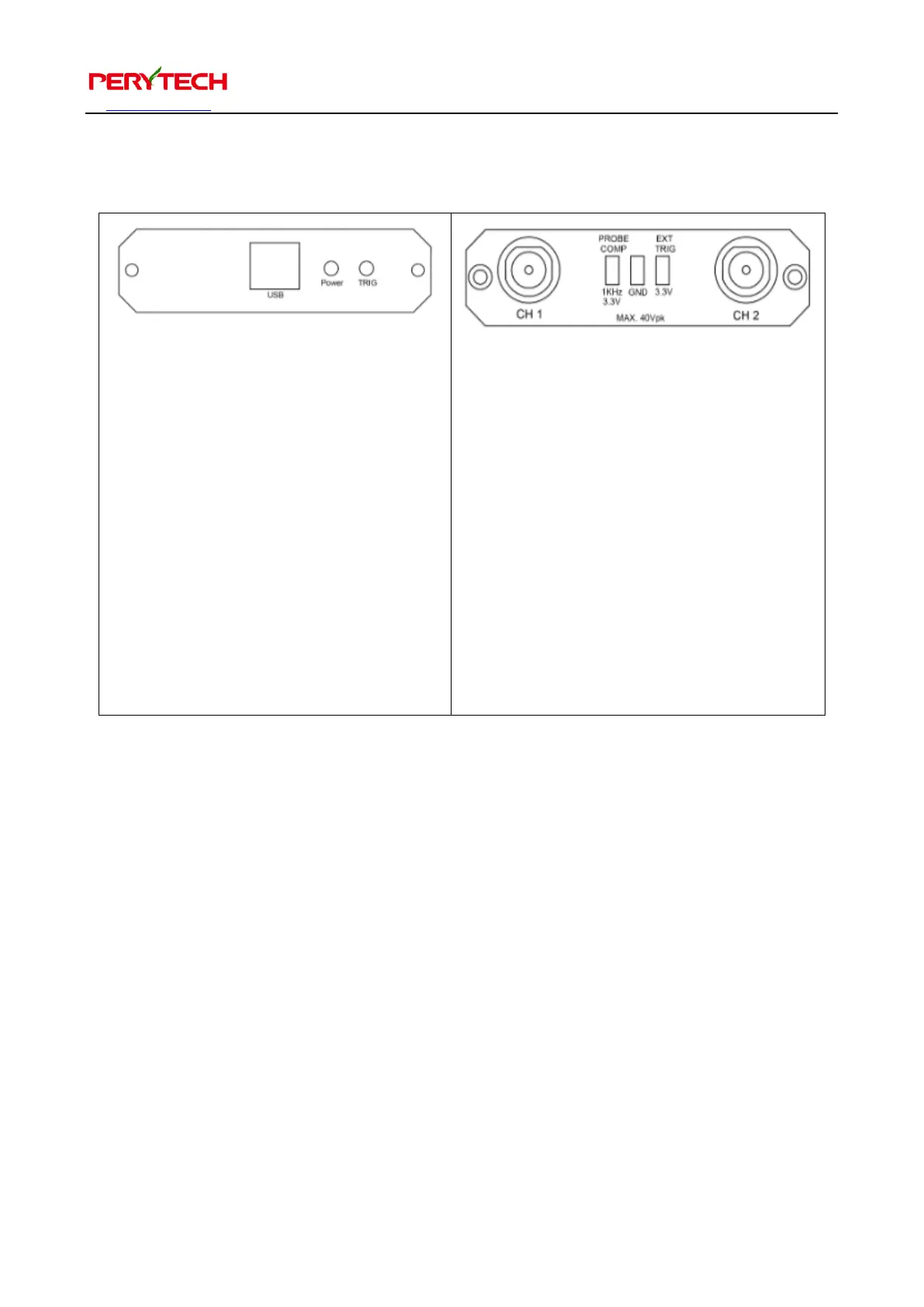

3. Exterior Appearance of DSO Host

◆ USB connector: The interface

connected DSO to PC.

◆ Power LED: When power supply is

normal, power LED will display red

light signal.

◆ TRIG LED: When signal is triggered,

the green light signal will be

flashing.

◆ CH 1: DSO Channel 1。

◆ CH 2: DSO Channel 2。

◆ PROBE COMP: Output 3.3V 1KHz

square wave is used as a reference

signal to adjust the probe.

◆ GND: Grounded

◆ EXT TRIG: External trigger signal.
