Memory menu can be used to set the size of the memory. After selection, a menu will
appear and the user can click on the size of the memory they desire. The default is 2k
and the maximum is 8k.

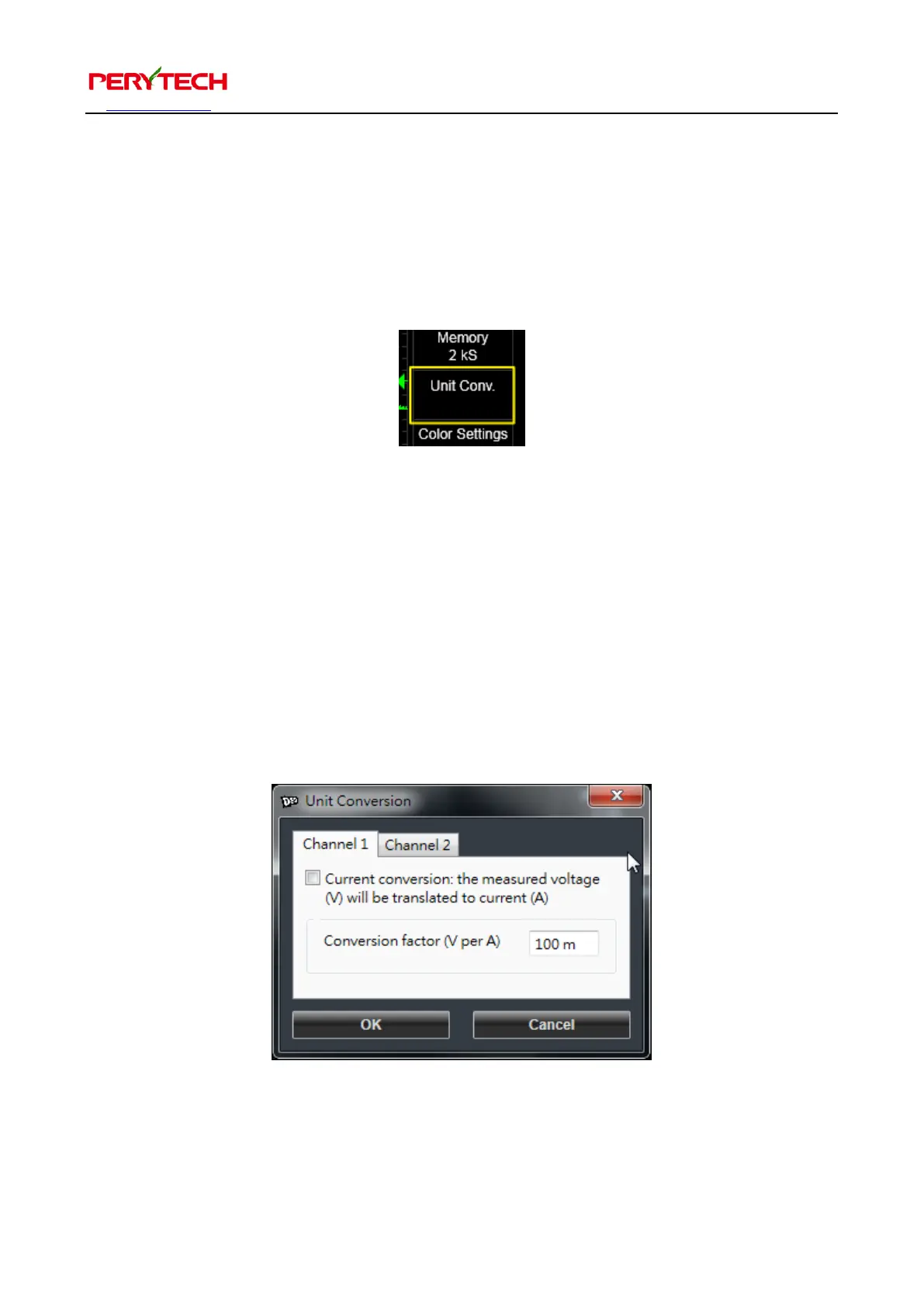

5.6.4. Unit conversion (when using the current probe)
Unit Conv. menu is used to change the measurement unit from voltage to current.
When using the current probe this function must be used. A window will appear after
choosing this function, as shown in the below figure. After selection, the
measurement unit will change to current. The two channels have independent
settings. In addition, the conversion factor can be set. The conversion factor refers to
converting X-number of voltage into 1A. The 100m inputted in the column shown
below represents converting 100mV into 1A. When the measured voltage is 500mV,
this is converted to 5A. The conversion factor’s value is determined by the current
probe’s specifications.
