the control is displayed in Ch1. When the channel is in Ch2, the control is displayed in
Ch2.

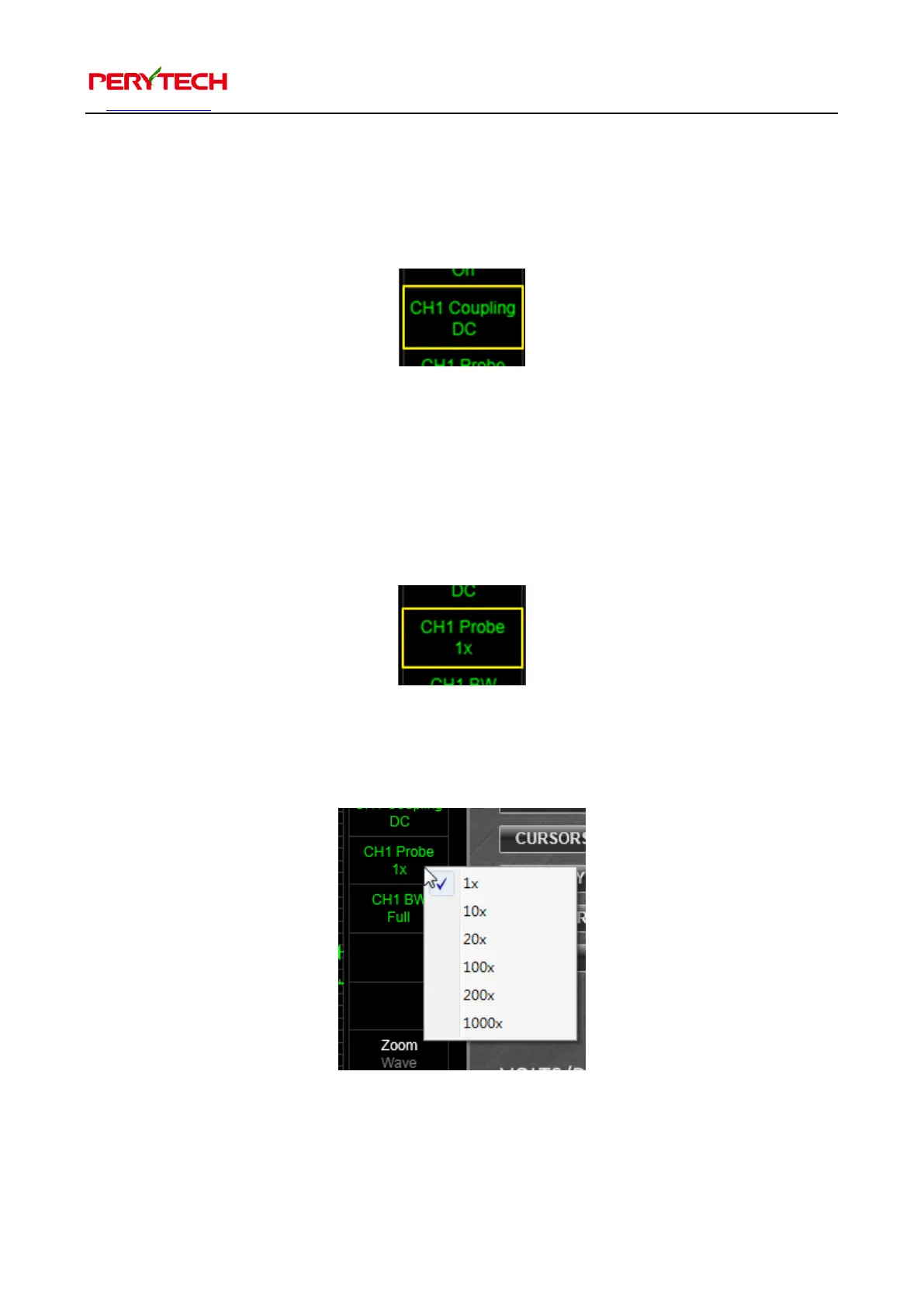

5.3.2. Coupling setting (DC/AC)
Coupling menu can control the input signal DC or AC coupling. The default is the DC
coupling. When choosing the AC coupling, the DC signal will be filtered out and only
the AC signal kept.
5.3.3. Probe setting
Probe menu can be used to set the probe. The menu will appear after being clicked,
as shown below. There are six choices (1x~1000x).
