5.3.7. XY mode (Lissajous curve)

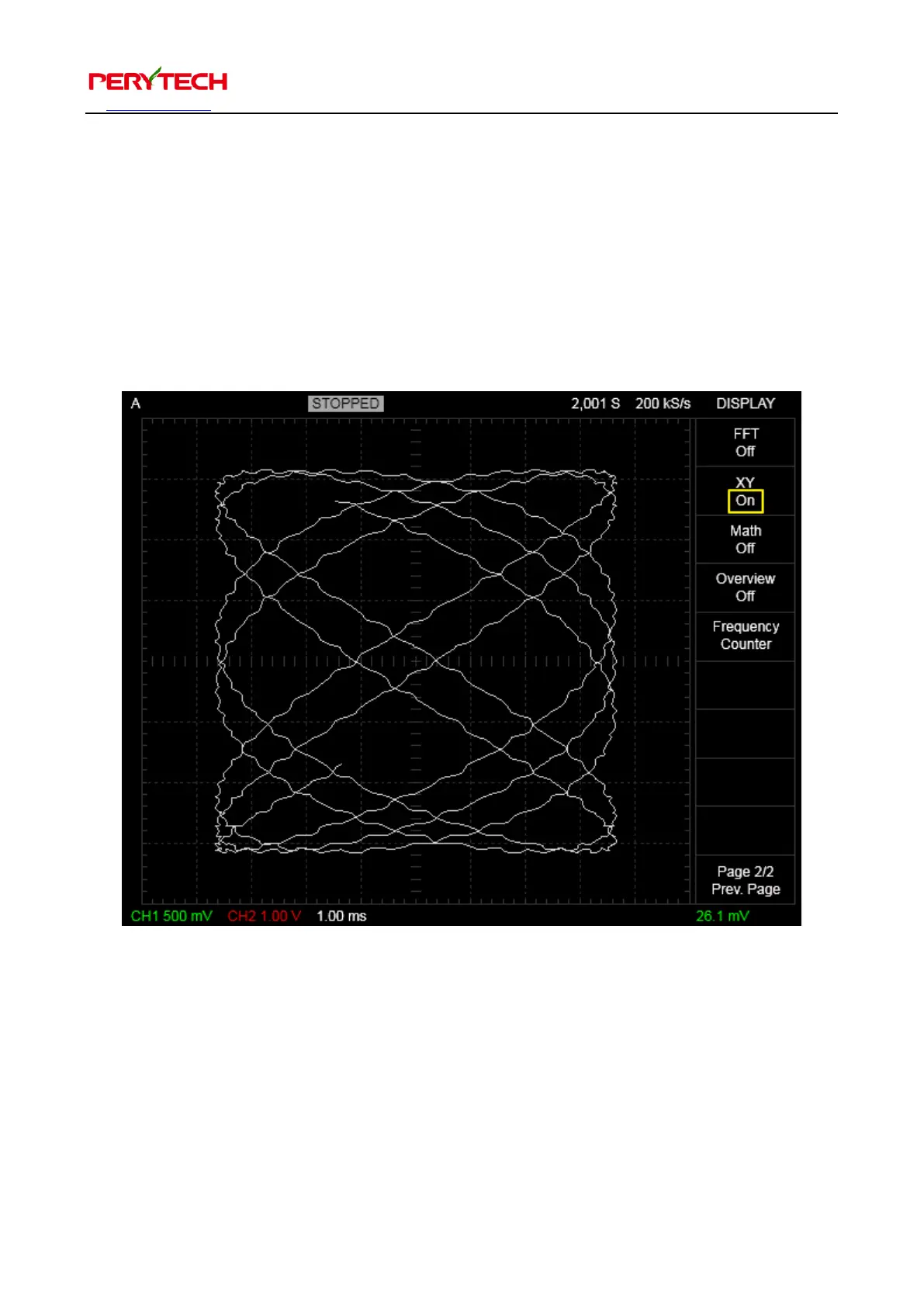

The XY mode is used to display the Lissajous curve. After turning on this mode, the
oscilloscope wave pattern will turn off and display the white Lissajous curve, as shown
below. If the user wishes to simultaneously display the oscilloscope wave pattern and
the Lissajous graphic, the user can change the setting in the “Options” (please see
5.6.7.4 for curve).
