Installation and commissioning
25

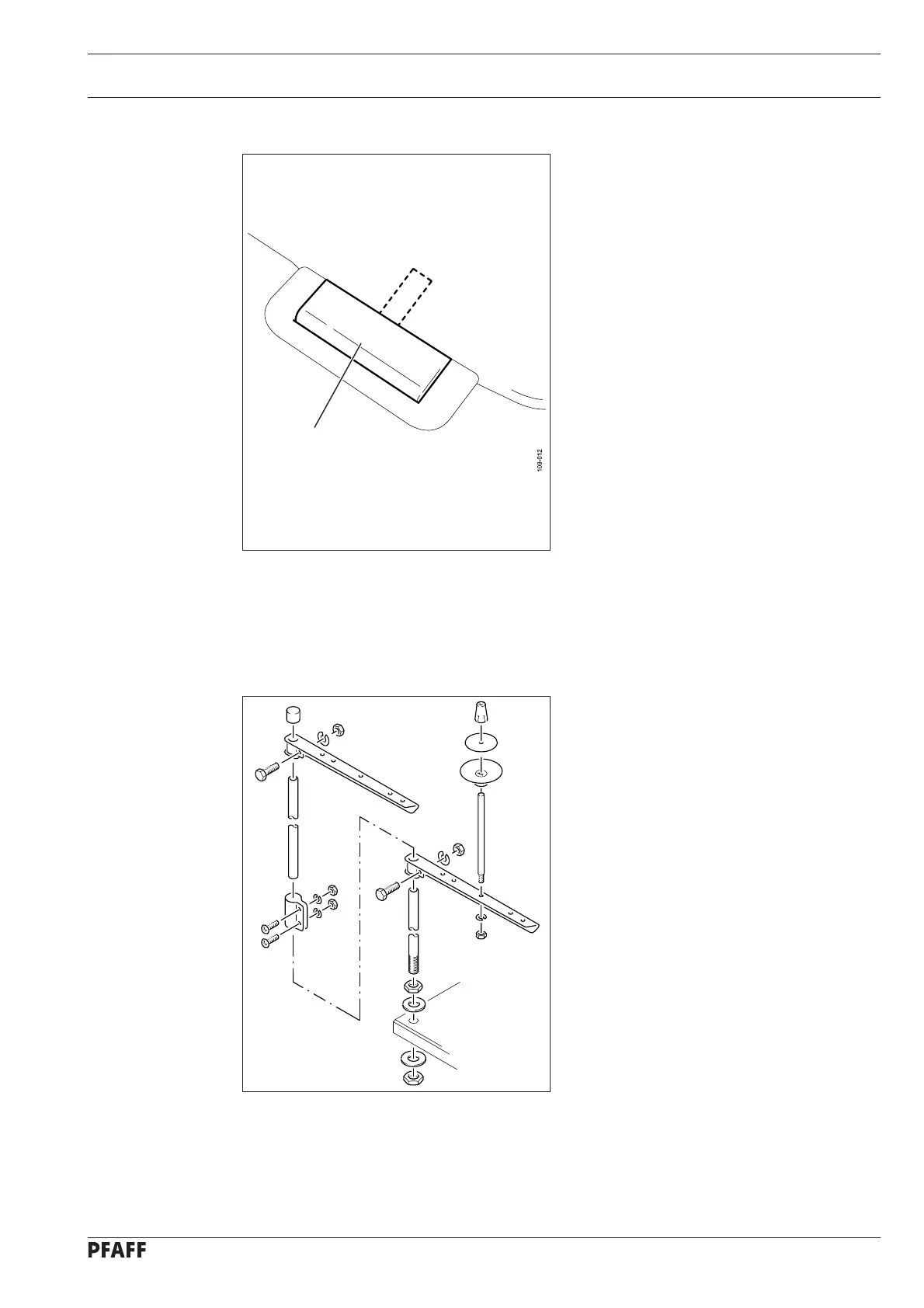

8.01.03 Mounting the sewing head
Place both hinges 1 in the appropriate
holes in the bedplate of the sewing head.
Place the sewing head with hinges 1 into
the back rubber pads.
●
●
Fig. 8 - 03
1
8.01.04 Mounting the spool holder
Mount the spool holder as shown in
Fig. 8-05.
Insert the spool holder into the hole in
the table top and fasten it with the nuts
enclosed.
●
●
Fig. 8 - 04
