Maintenance intervals
50
11 .03 Oiling the machine
Switch off the machine!
Danger of injury if the machine is started accidentally!
Only use oil with a mean viscosity of 10.0 mm2/s at 40°C and a density of
0.847 g/cm3 at 15°C.
Tilt the machine back.
Remove plug 1 and pour oil into the hole until it reaches marking 2.
Before commissioning the machine and after long down periods, pour a few extra drops
of oil into the hook race, see arrow in enlarged illustration.
Use both hands to set the sewing head upright!
Danger of crushing between the sewing head and the table top!
We recommend PFAFF sewing machine oil, part no. 280-1-120 105.
●
●
●

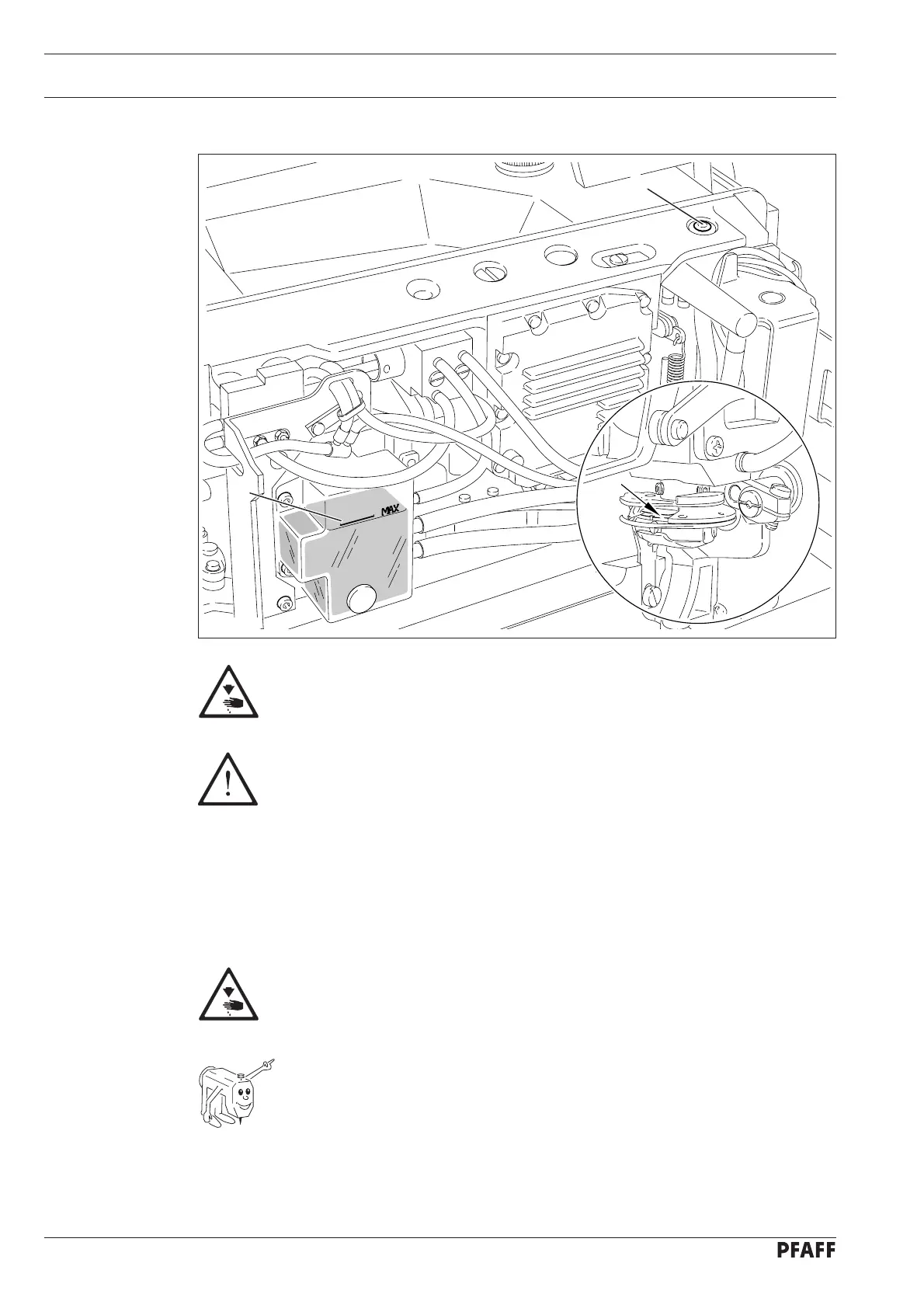

Fig. 11 - 01
1
2
114-044
