Installation and commissioning
28
114-011
1
8
.0
1
.07

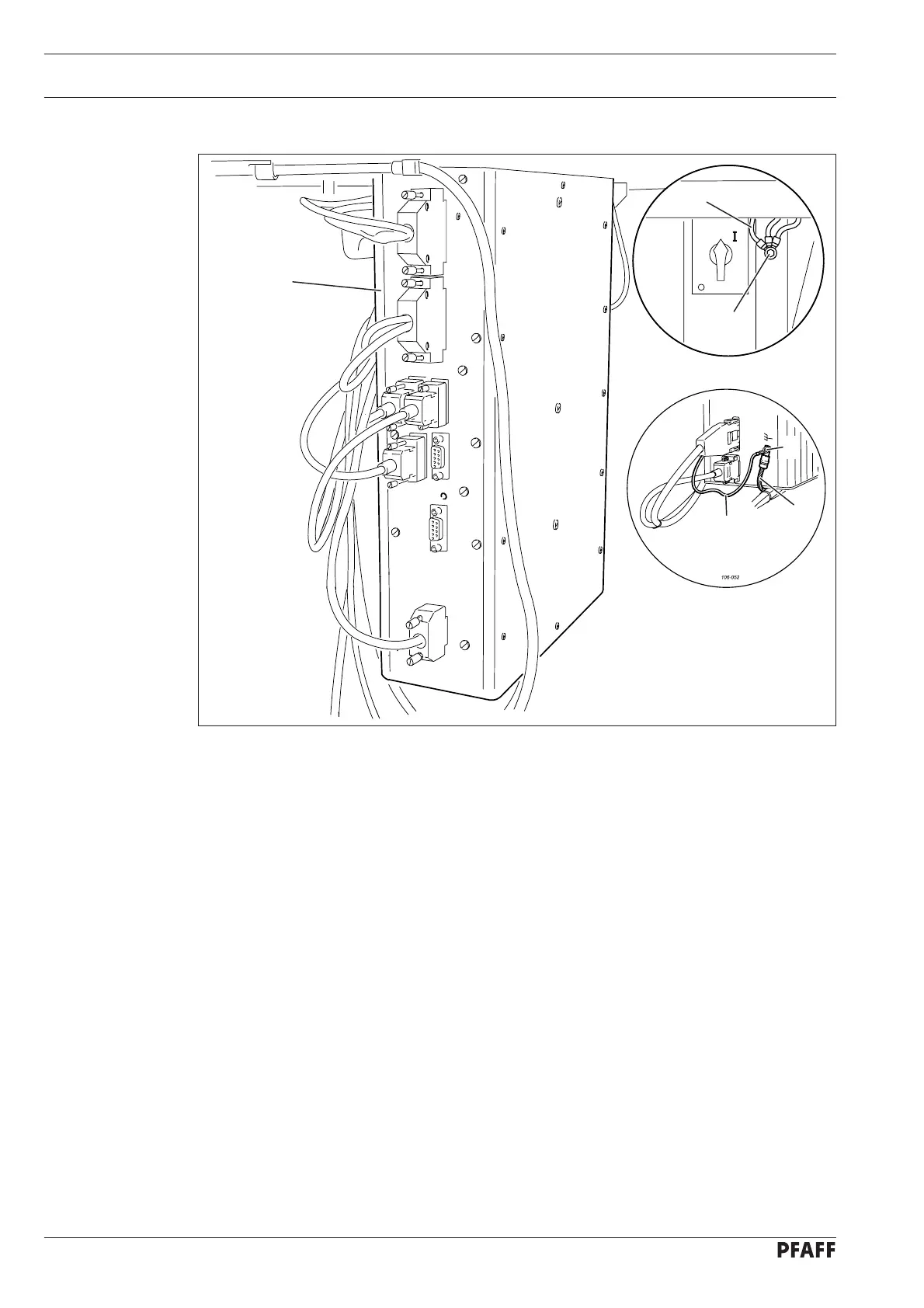

Connecting the plug-in connections and earth cables
Connect all plugs as labelled to the control box
1.
Screw the earth cable from the se
wing head and the main switc
h to earth point A.
Connect earth point
A to earth point B with earth cable
2.
Screw the earth cable
3
from the motor to earth point B
.
●
●
●
●
Fig. 8 - 07
106-051
A
2
2
3
B
27
29
Table of Contents
Instruction Manual
1
Ordered in Book Form under Part No. 296-12-18
2
Table of Contents
3
Safety
5
Directives
5
General Notes on Safety
5
Safety Symbols
6
Important Points for the User
6
Operating and Specialist Personnel
7
Operating Personnel
7
Specialist Personnel
7
Danger
8
Proper Use
9
Specifi Cations
10
General Specifi Cations
10
Versions and Subclasses
11
Disposal of Machine
12
Transportation, Packing and Storage
13
Transportation to Customer's Premises
13
Transportation Inside the Customer's Premises
13
Disposal of Packing Materials
13
Storage
13
Explanation of Symbols
14
Controls
15
On/Off Switch
15
Key on the Machine Head
15
Pedal
16
Lever for Lifting the Presser Foot
16
Knee Lever
17
Reverse Feed Key
17
Stitch Length Adjustment Wheel
18
Adjustment Key for Limiting the Reverse Stitch Length
18
Thread Wiper Switch (Only on Machines with Thread Wiper -909/93)
19
Control Panel
20
Screen Displays
20
Function Keys
20
Installation and Commissioning
23
Installation
23
Adjusting the Table Height
23
Assembling the Oil Pan
24
Mounting the Sewing Head
25
Mounting the Spool Holder
25
Table Top Cutout
26
Mounting the Table Top
27
Connecting the Plug-In Connections and Earth Cables
28
Commissioning
29
Switching the Machine On/Off
29
Basic Position of the Machine Drive Unit
30
Checking the Function of the Start Inhibitor
31
Preparation
32
Inserting the Needle
32
Winding the Bobbin Thread / Adjusting the Preliminary Thread Tension
33
Removing / Inserting the Bobbin Case
34
Threading the Bobbin Case / Adjusting the Bobbin Thread Tension
34
Threading the Needle Thread / Adjusting the Needle Thread Tension
35
Setting the Stitch Length
36
Adjusting the Width of the Zigzag Stitch
37
Adjusting the Stitch Position
38
Changing the Stitch Position Reference Point
39
Entering the Start and End Backtacks
40
Sewing
41
Manual Sewing
41
Standard Patterns
42
Straight Stitch
42
Zigzag Stitches
43
Shell Stitches
43
Blind Stitches
44
Sewing Programmed Seam Patterns
45
Altering/Creating Seam Patterns
46
Mirror Imaging Shell Stitches and Programmed Seam Patterns
47
Error Messages
48
Care and Maintenance
49
Maintenance Intervals
49
Cleaning the Machine
49
Oiling the Machine
50
Wearing Parts
51
4
