11.09.05 Bevel gears for feed wheel drive (on the PFAFF 491)
Requirements
1. The right side of bevel gear 1 must be flush with its drive shaft (see arrow).
2. There must be a distance of 13 mm between bevel gear 3 and bevel gear 1.

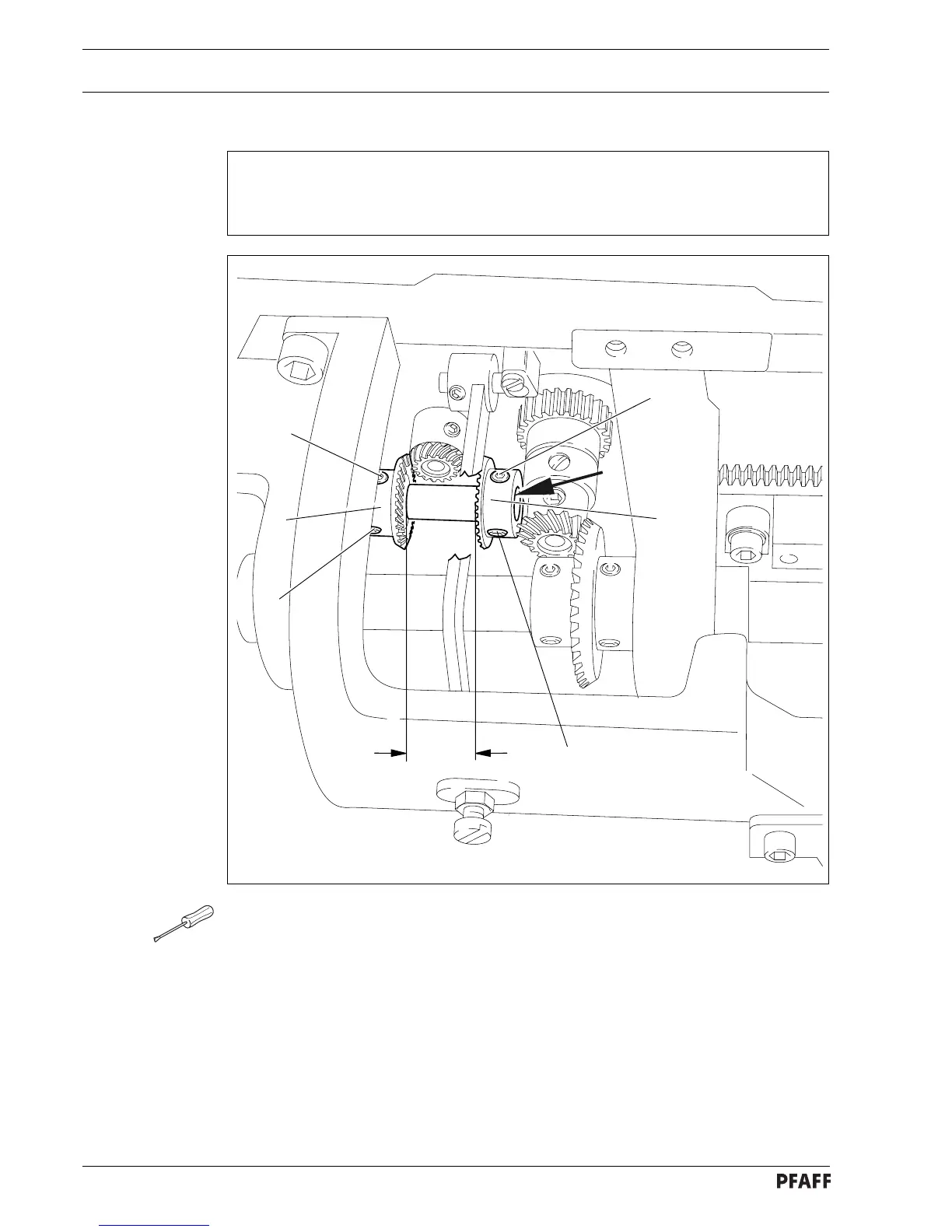

Fig. 11 - 63
● Adjust bevel gear 1 (screws 2) according to requirement 1.
● Adjust bevel gear 3 (screws 4) according to requirement 2.
2
13 mm
2
4
3
4
1
