Adjustment
11 - 2
11
.04
Adjusting the basic machine
11
.04.01
Adjusting the synchronizer
Requirements
1.
When sewing is interrupted, the machine must be in a position 5 mm before BDC of
the needle bar.
2.
After thread trimming the machine must be in the position TDC of the take-up lever.

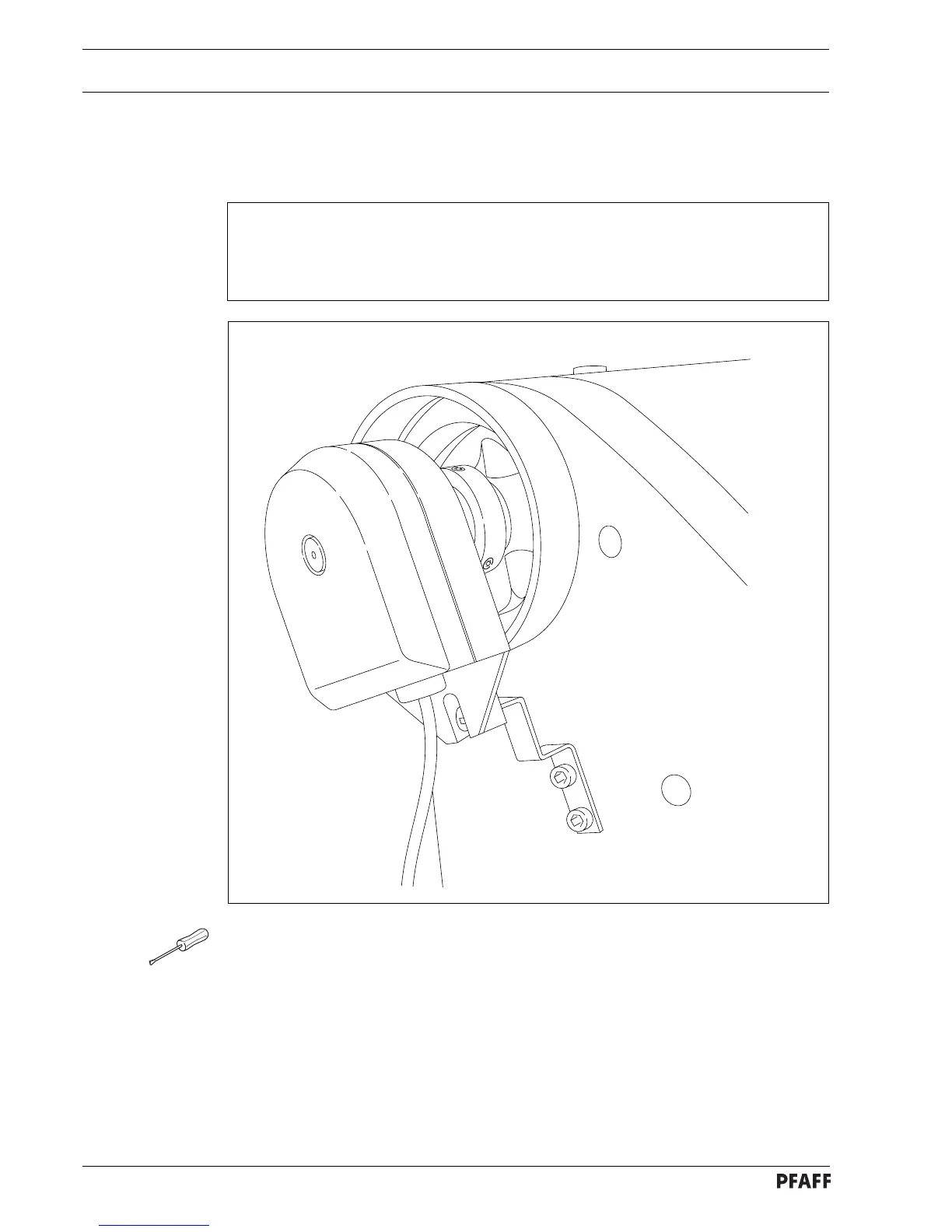

Fig. 11 - 01
●
Carry out adjustments according to the motor instruction manual.
●
See also
Chapter 11.10
Parameter settings.
39
