Adjustment
11 - 12
11.
04.08
Needle position crosswise to sewing direction on the PFAFF 471
Requirement
When the stitch length is set at its maximum, the needle must be positioned in the centre
of the needle hole when entering and coming out of the needle plate.

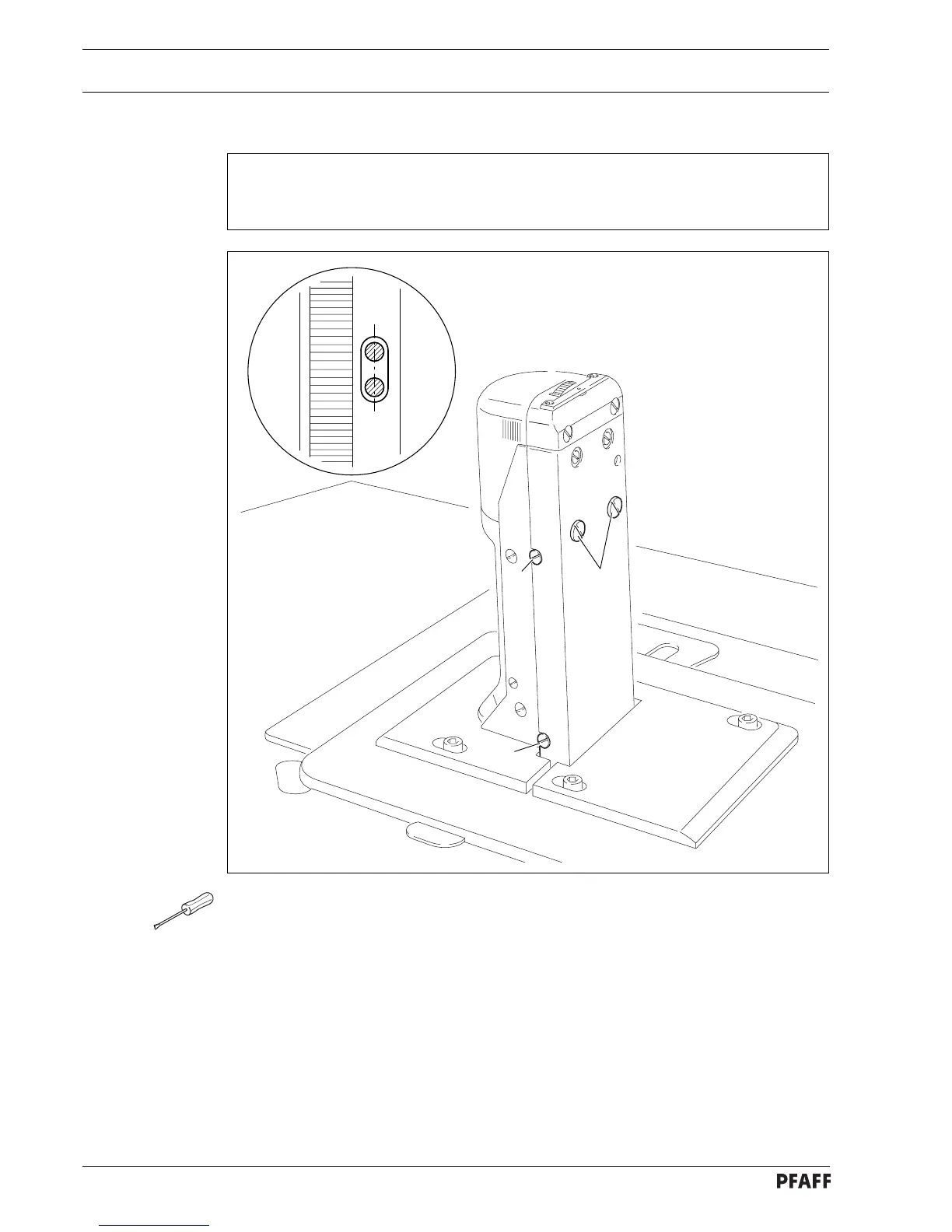

Fig. 11 - 08
2
2
1
●
Turn screws
1
(screws
2
, on both sides of the post) according to the
requirement.
49
51
