Care and maintenance
10 - 2

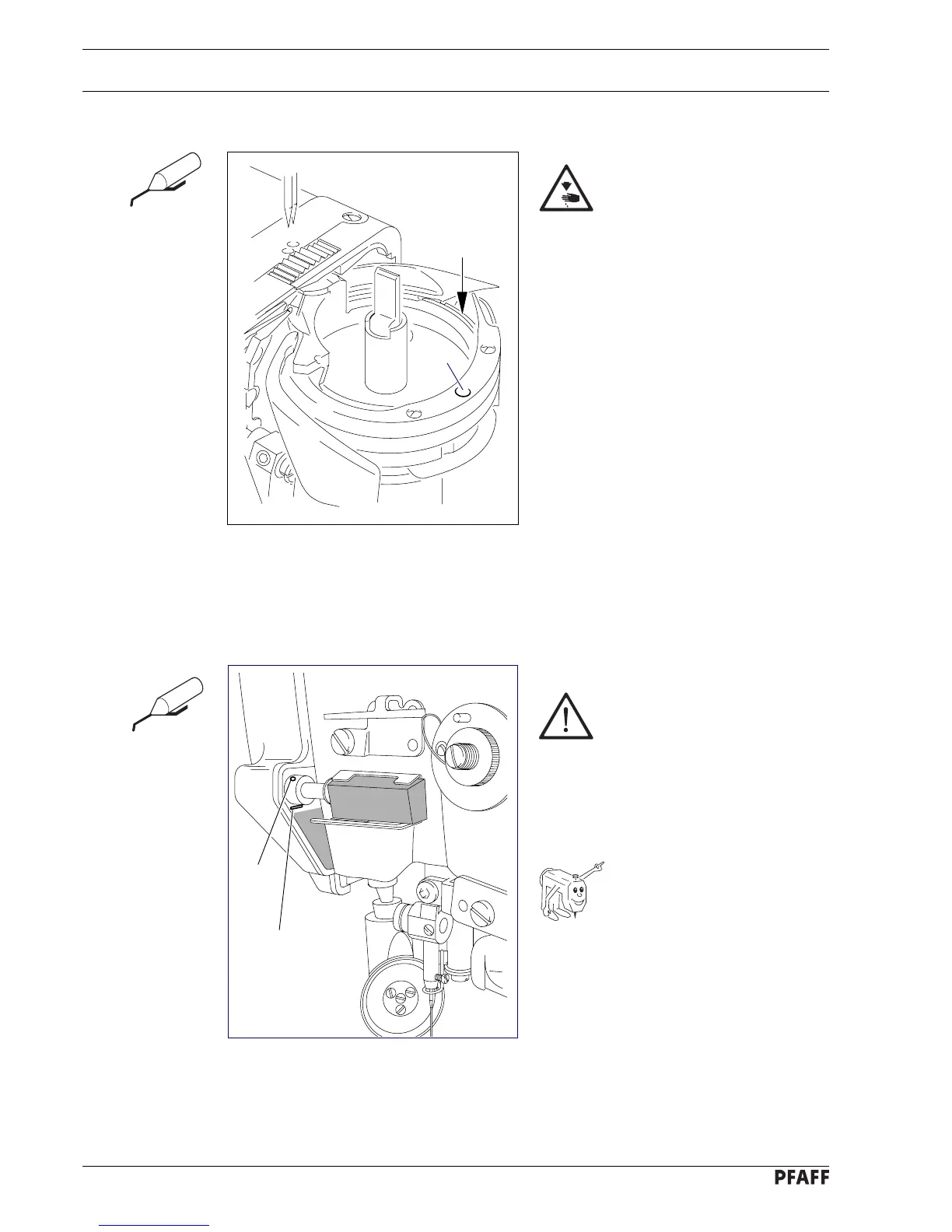

10.02 Oiling the hook
Switch the machine off!
Danger of injury if the machine
is started accidentally!
● Pour 1-2 drops of oil into hole 1 of the
hook gib daily.
● Before commissioning the machine, and
after long periods out of operation, pour a
few drops of oil into the hook race (see
arrow).
Fig. 10 - 02
1
10.03 Filling the oil reservoir of the thread lubrication unit
Control the oil level before each
use.
There must always be oil in the
reservoir.
● If necessary, fill oil up to mark 2 through
hole 1.
We recommend
PFAFF thread lubricating oil,
Order No. 280-1-120 217.
Fig. 10 - 03
1
2
