Setting up
9 - 4

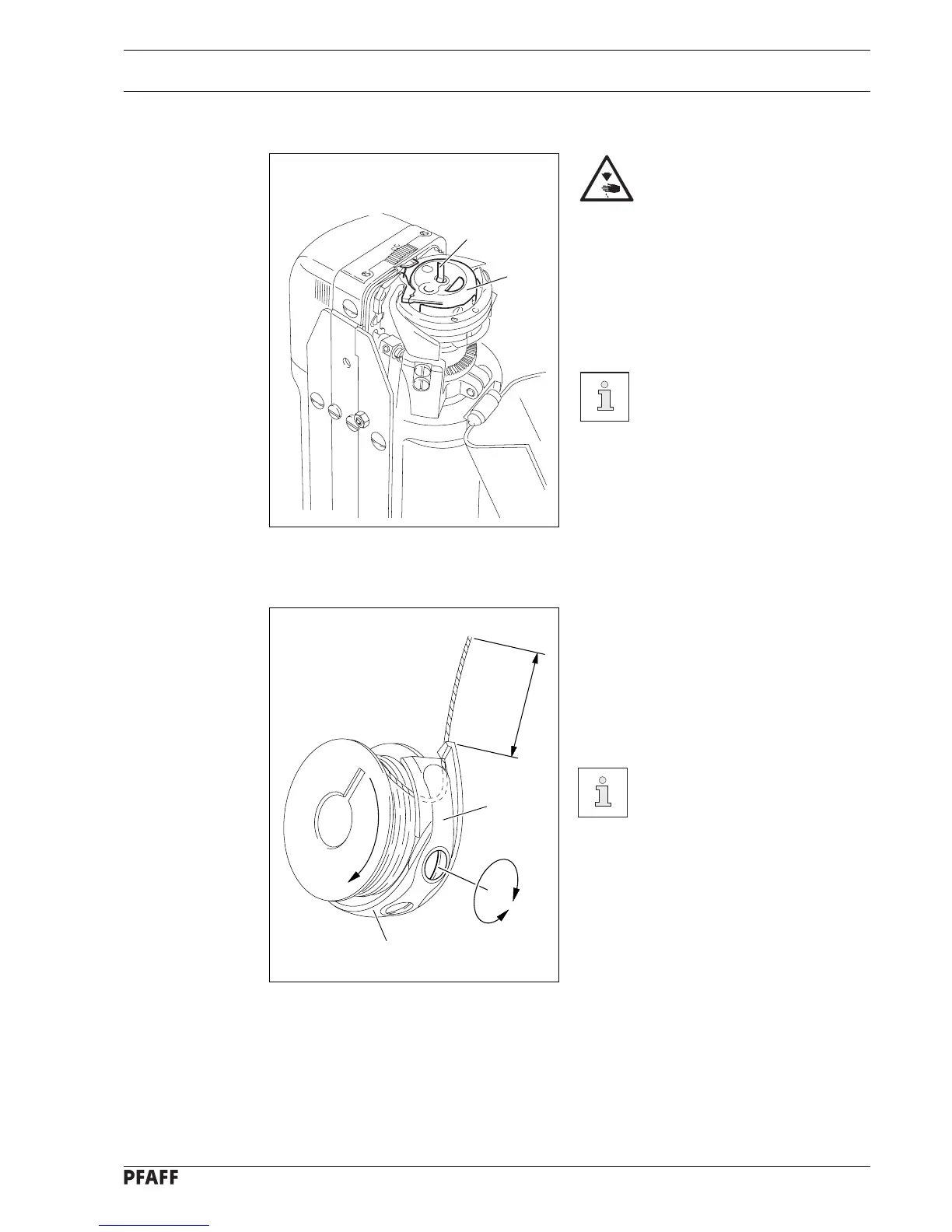

Fig. 9 - 04
2
3
-
+
1
5 cm
Fig. 9 - 05
1
2
Turn the machine off!
Removing the bobbin case:
● Open the post cap.
● Raise latch 1 and remove bobbin case 2.
Inserting the bobbin case:
● Insert bobbin case 2.
● Close the latch and close the post cap.
474 is shown in Fig. 9 - 04.
9.04 Removing/Inserting the bobbin case
9.05 Threading the bobbin case/Adjusting the bobbin thread tension
● Insert the bobbin into the bobbin case 1.
● Pass the thread through the slot under
spring 2.
● Pass the thread through the notch.
● Adjust the thread tension by turning
screw 3.
When the thread is pulled, the
bobbin must rotate in the
direction of the arrow.
