Pfaff 474

Adjustment
11 - 45
11.06.04 Cutting stroke
Requirement
When the edge trimmer is engaged and the needle is in the needle hole, the stroke of
knife 3 should be half in front of and half behind the needle, when the motor shaft is turned
by hand.

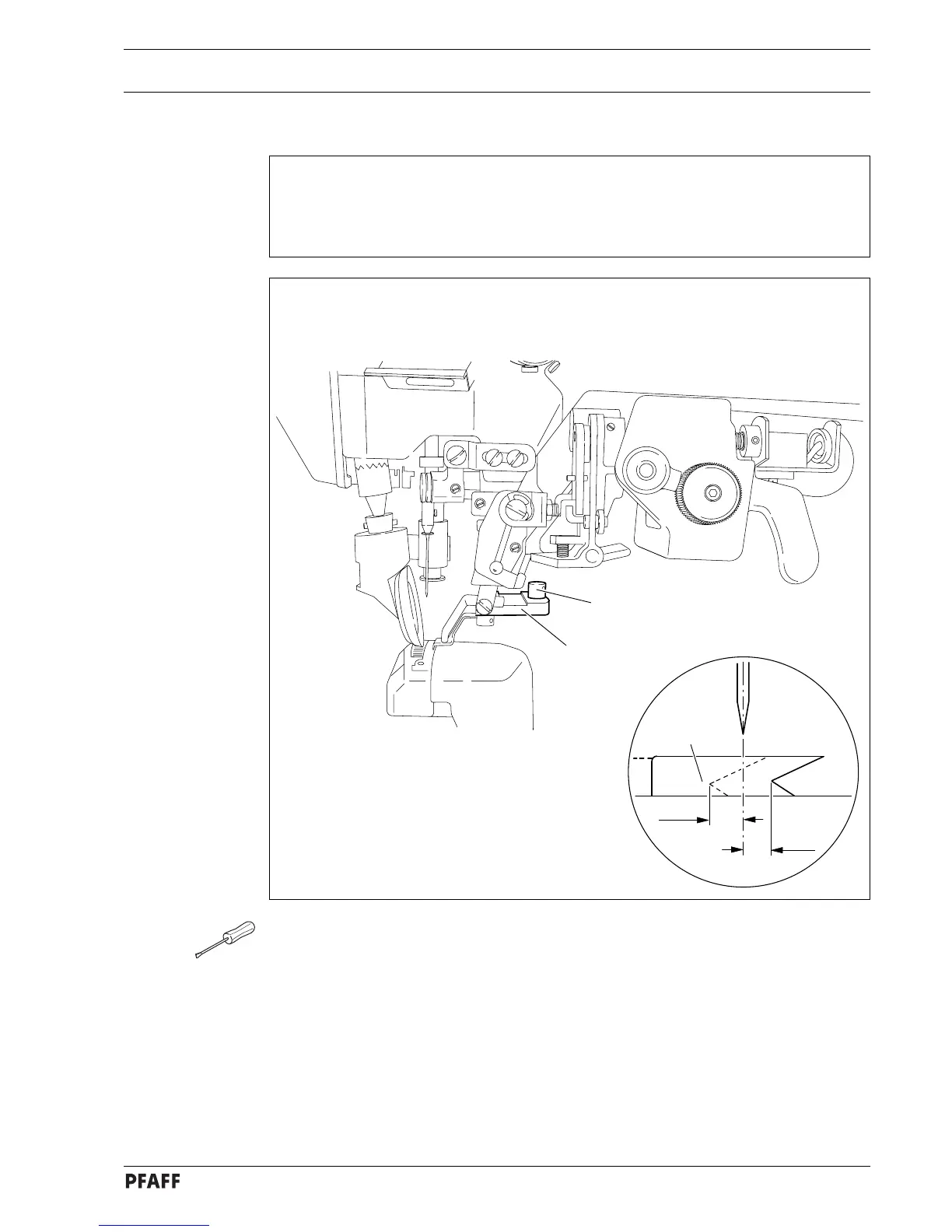

Fig. 11 - 41
● Switch off the machine and engage the edge trimmer.
● Adjust knife holder 1 (screw 2) according to the requirement.
1
2
½
½
3
