Installation and commissioning
8 - 4

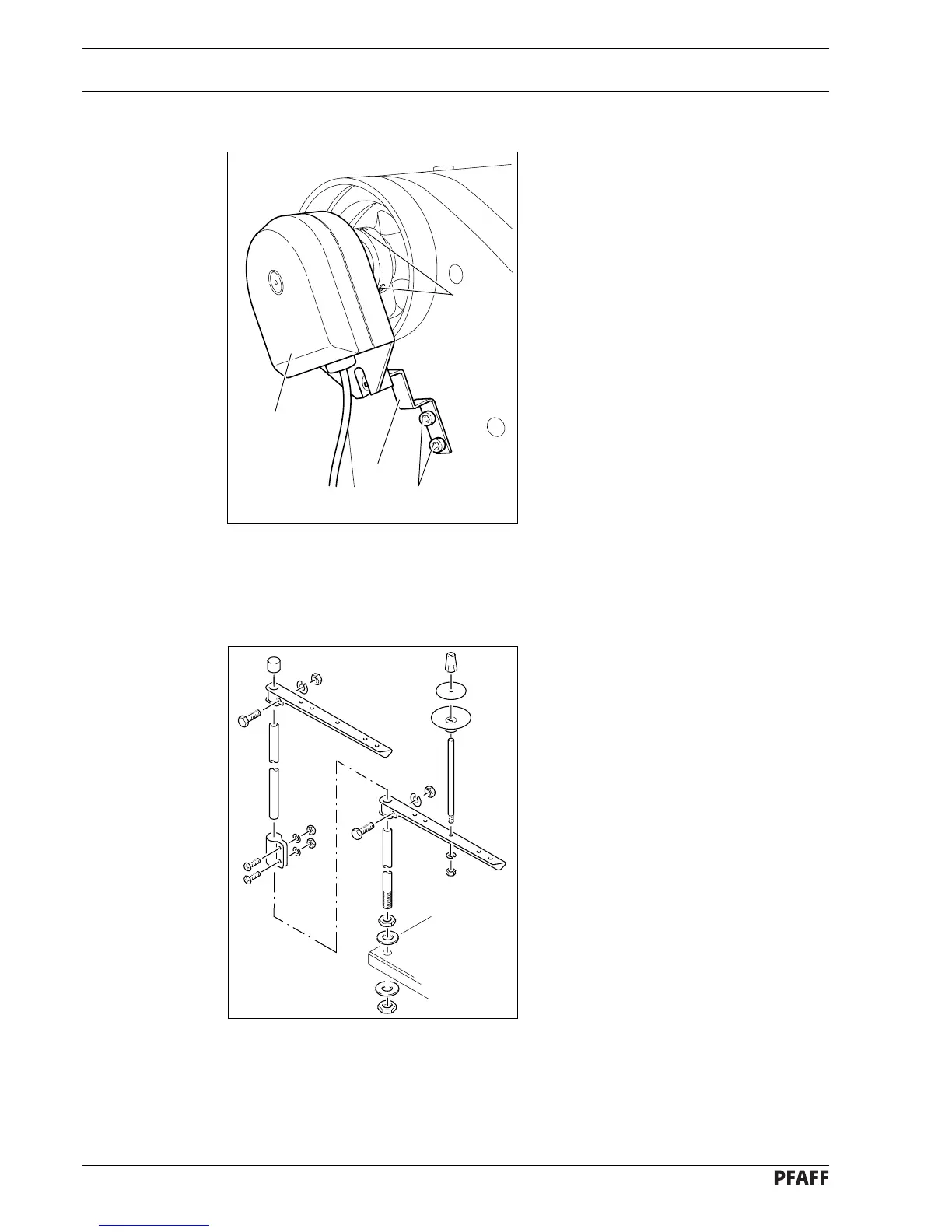

8.01.06 Fitting the synchronizer
● Attach position stop 1 using screws 2.
● Push synchronizer 3 onto the shaft so that
the position stop 1 is in the groove of the
synchronizer (see arrow).
● Slightly tighten screws 4.
● Insert the synchronizer plug in the
connection socket of the control box.
● Adjust the synchronizer 3 (see Chapter
11.04.01 Adjusting the Synchronizer).
Fig. 8 - 06
2
1
8.01.07 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8-07.
● Afterwards insert the stand in the hole in
the table top and secure it with the nuts
provided.
Fig. 8 - 07
4
3
