11.04.10 Needle position crosswise to sewing direction on the PFAFF 491
Requirement
As seen crosswise to the sewing direction, the needle must penetrate in the centre of the
needle hole.

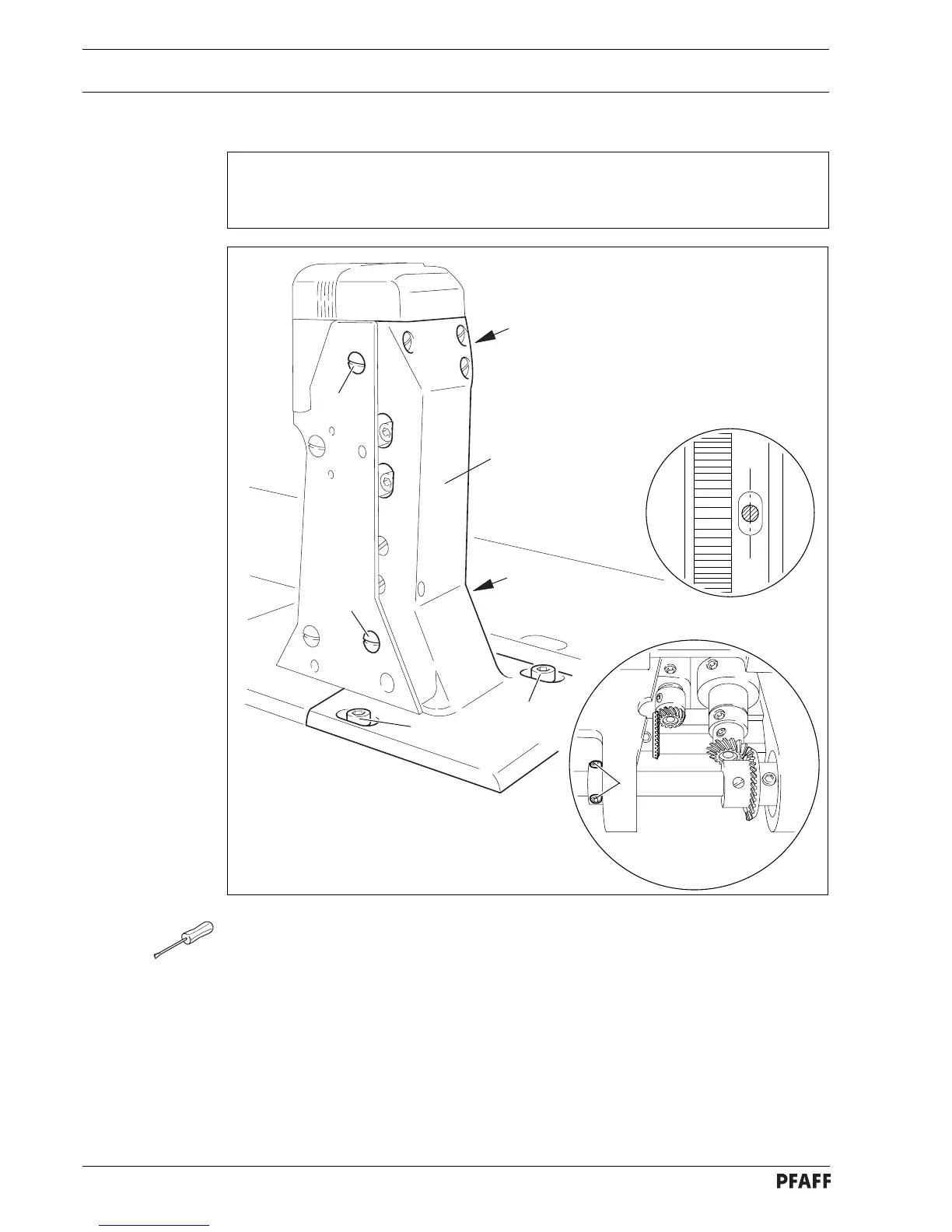

Fig. 11 - 10
● Adjust feed wheel post 1 (screws 2, 3 and 4) according to the requirement.
