Installation and commissioning
8 - 2
Switch off the machine!
Danger of injury if the machine
is the machine is started
accidentally!

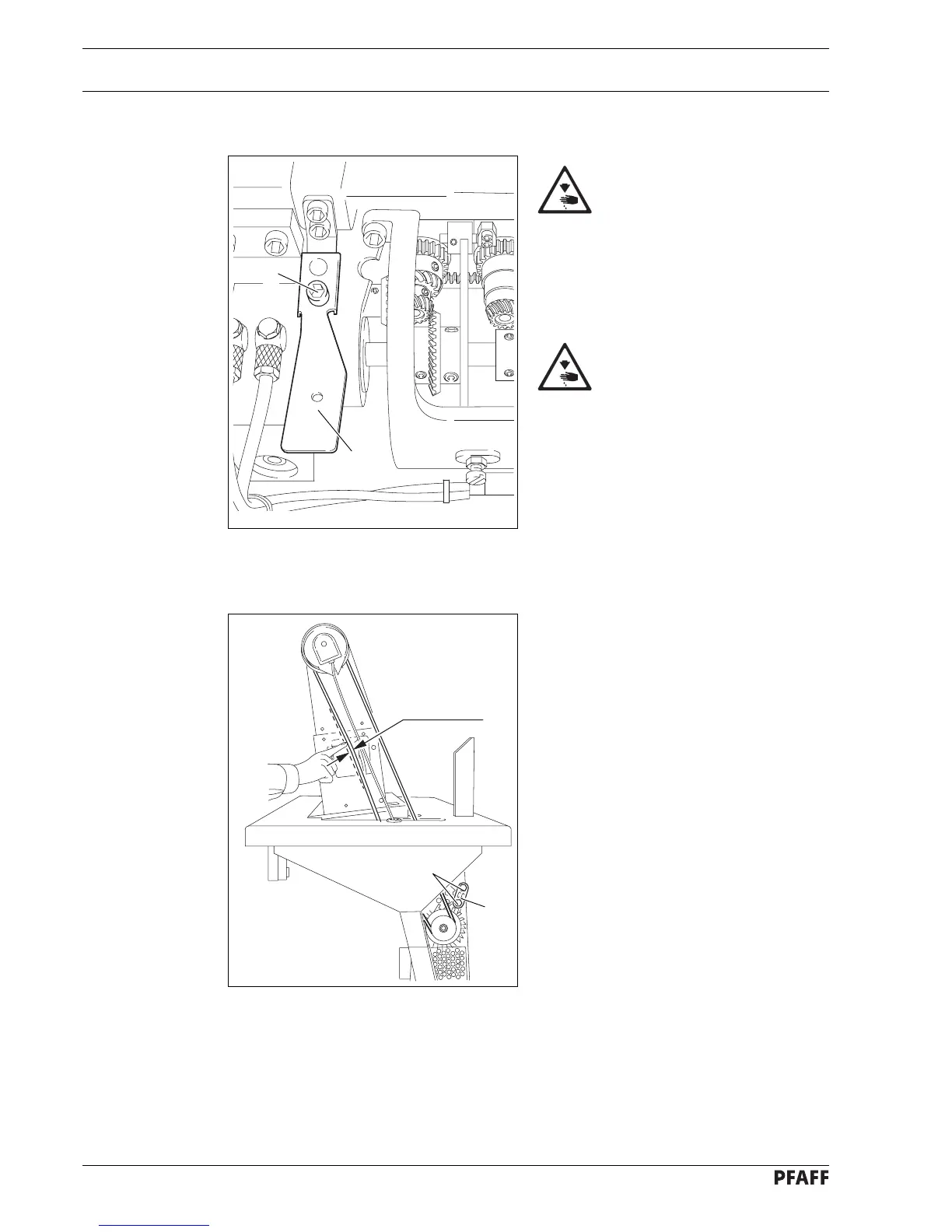

● Screw on the tilt lock 1, provided in the
accessories, using screw 2.
Do not operate the machine
without tilt lock 1. Danger of
crushing between sewing head
and table top!
8.01.03 Tensioning the v-belt (does not apply to machines with mini-stop motor)
● Loosen the nuts 1.
● Set tension of v-belt using motor bracket 2
.
● Tighten nuts 1.
Fig. 8 - 03
1
2 cm
2
8.01.02 Fitting the tilt lock
Fig. 8 - 02
1
2
