Adjustment
11 - 59
11.07.13 Eccentric sleeve
Requirement
1. In its starting position the cutter must be flush with the contour of the needle plate.
2. The cutter must lightly touch the needle plate and the eccentric sleeve 2.
● Loosen screw 1 enough so that eccentric sleeve 2 can still be turned.
● Turn eccentric sleeve 2 until the cutter is flush with the needle plate.
● Maintaining this position, move eccentric sleeve 2 laterally in accordance with the
requirement.
● Tighten screw 1.
● Press pin 3 (screw 4) lightly against the scissor.
For model 474 repeat adjustment on the right post.

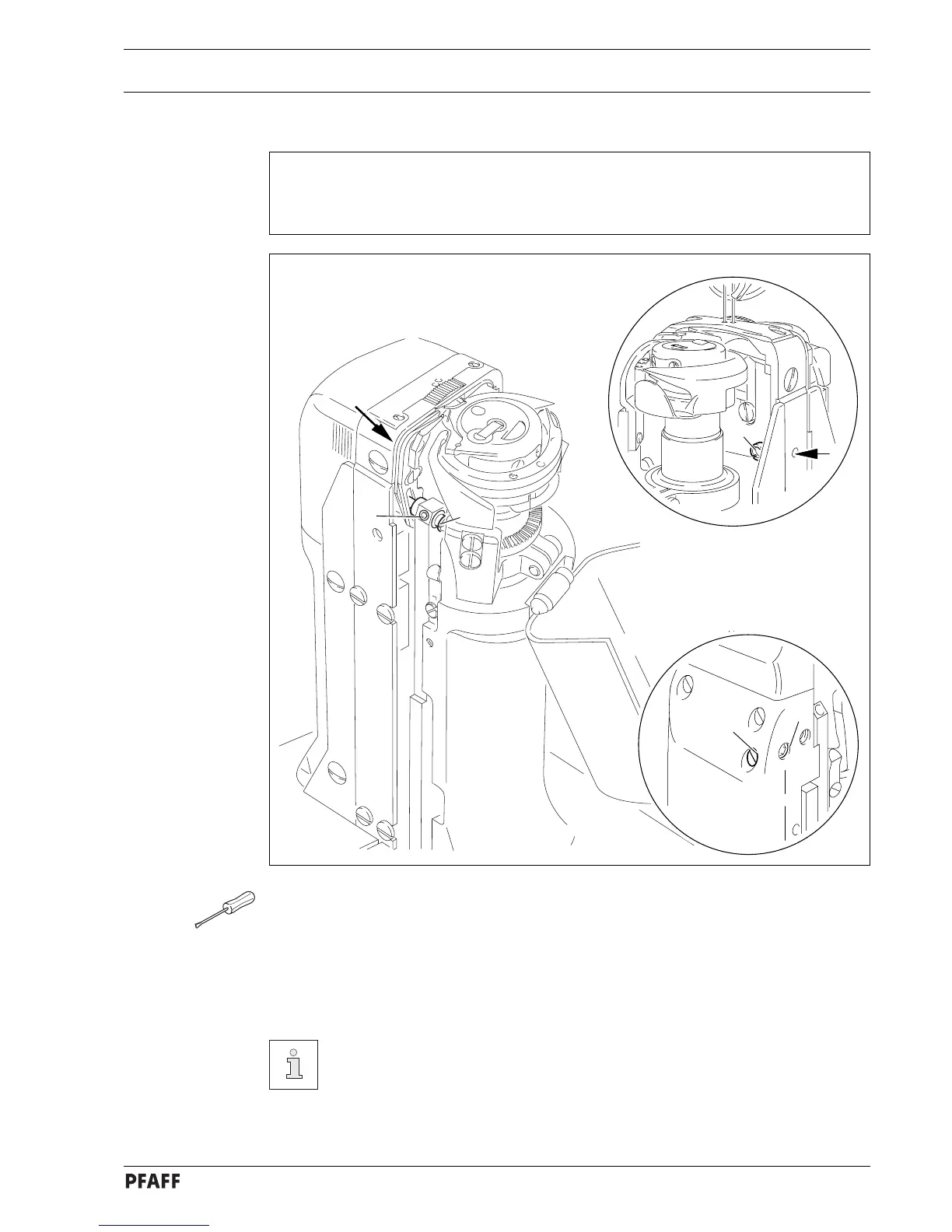

Fig. 11 - 55
4
3
2
1
2
1
PFAFF 491
