Pfaff 474 User Manual

Installation and commissioning
8 - 3

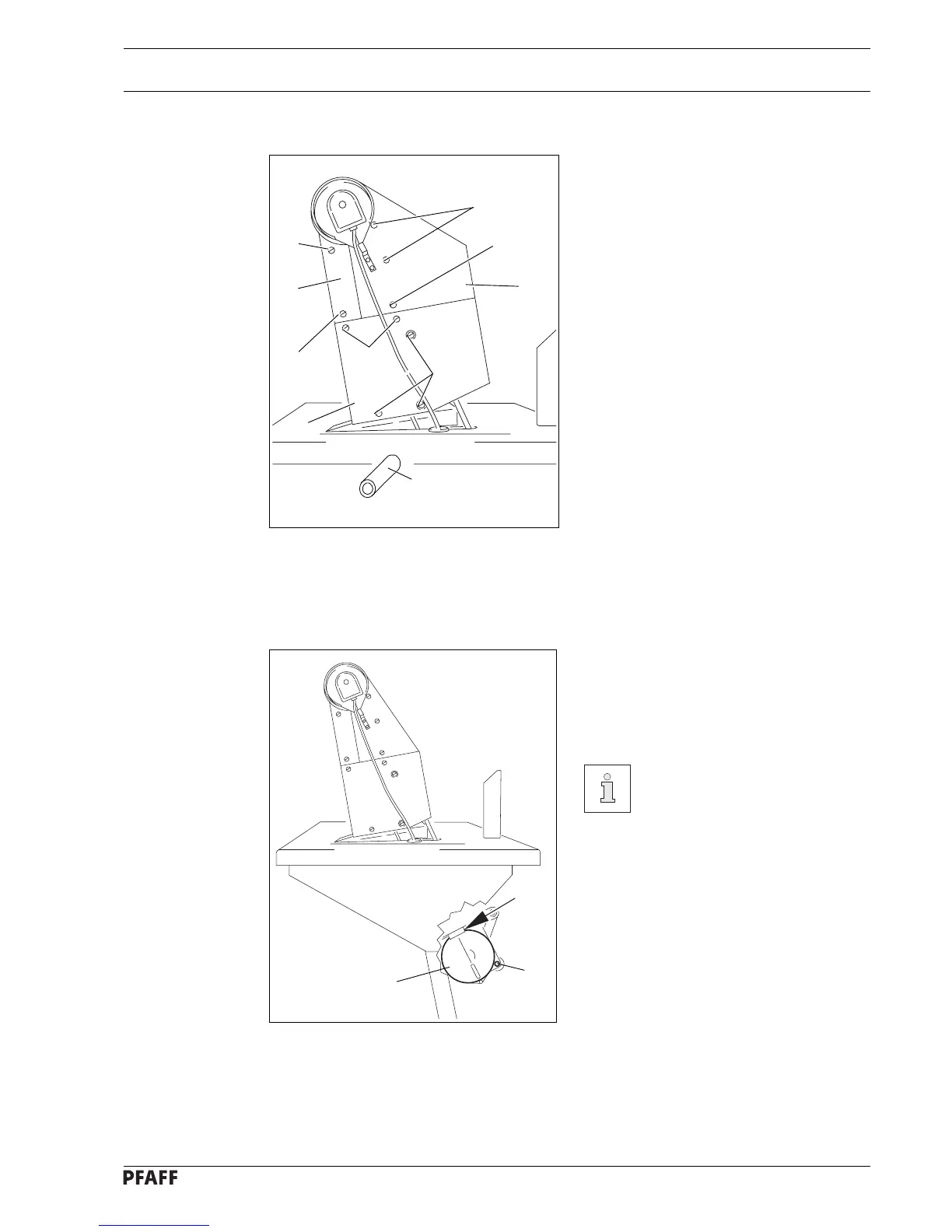

Fig. 8 - 04
2
7
1
3
6
9
9
4
8.01.05 Fitting the bottom v-belt guard (does not apply to machines with mini-stop motor)
Fig. 8 - 05
● Adjust the v-belt guard 1 so that the
motor pulley and v-belt run freely.
● Tighten screws 2. Fig. 8-05 shows a
Quick motor.
If another motor is used, the
instruction manual of the motor
must be complied with.
1
2
2
5
8
8.01.04 Fitting the top v-belt guard
● Attach belt guard 1 with screws 2 and 3.
● Place spacing sleeve 4 between belt
guard 1 and the machine housing.
● Attach belt guard 5 with screws 6 and 7.
● Place spacing sleeve 4 between belt
guard 5 and the machine housing.
● Attach belt guard 8 with screws 9.

Pfaff 474 Specifications

General

Brand	Pfaff
Model	474
Category	Sewing Machine
Language	English
