Adjustment
11 - 20

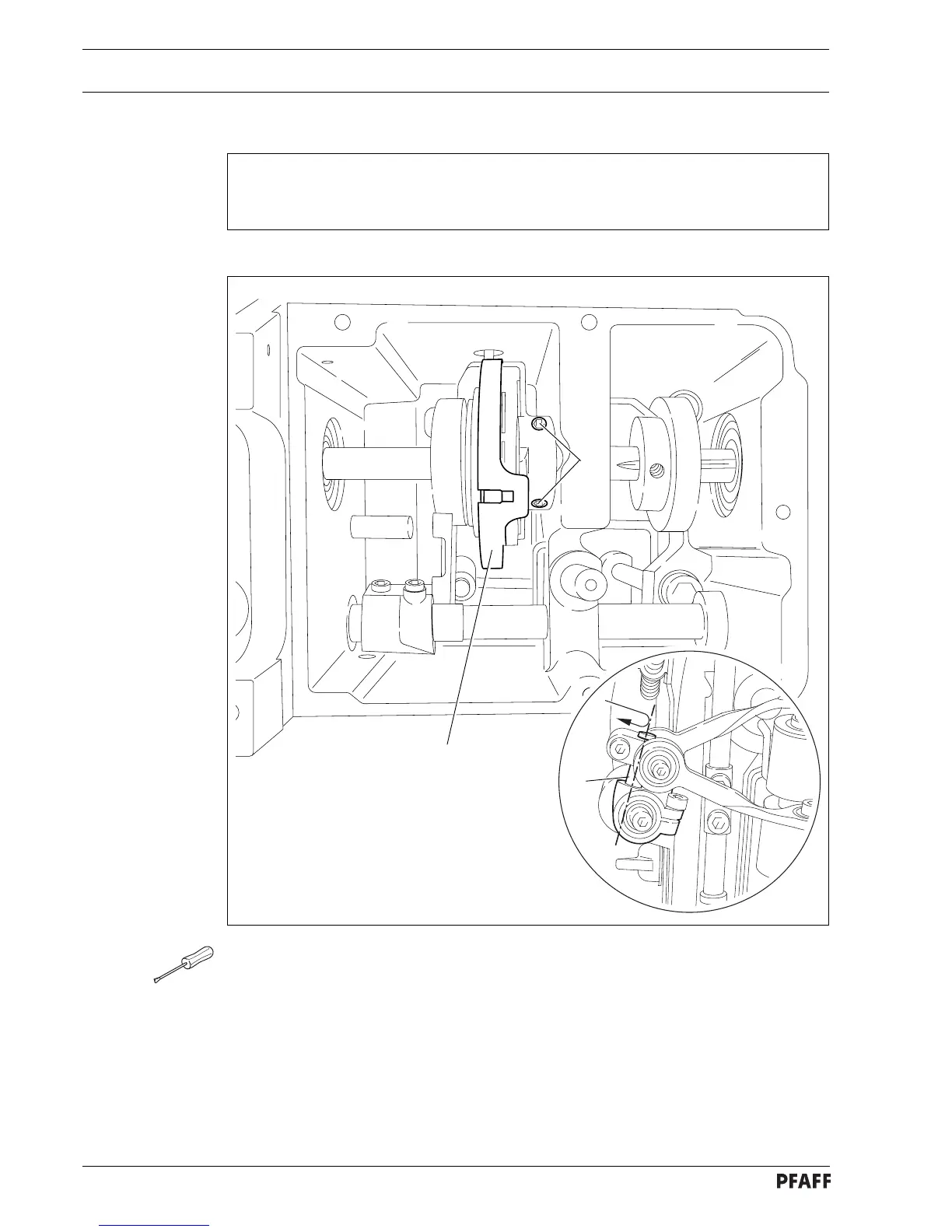

11.04.16 Stitch length control eccentric
Requirement
When the needle (with maximum stitch length set), coming from TDC, is 3 mm above the
needle plate, the crank 3 must have reached its front point of reversal.
2
● Set the maximum stitch length.
● Turn stitch length control device 1 (screws 2) according to the requirement.
Fig. 11 - 16
1
3
