Adjustment
11 - 9
● Tighten screws 1 and 6.
● Making sure that there is some play in the bevel gear, tighten screws 3 and 5.
● With retaining collar 10 touching bevel gear 11 tighten screws 2.
● With retaining collar 12 touching bevel gear 13 tighten screws 4.
● Tighten screws 7 on both sides of the post.
● Adjust needle guard 9 on both hooks according to Requirement 3.

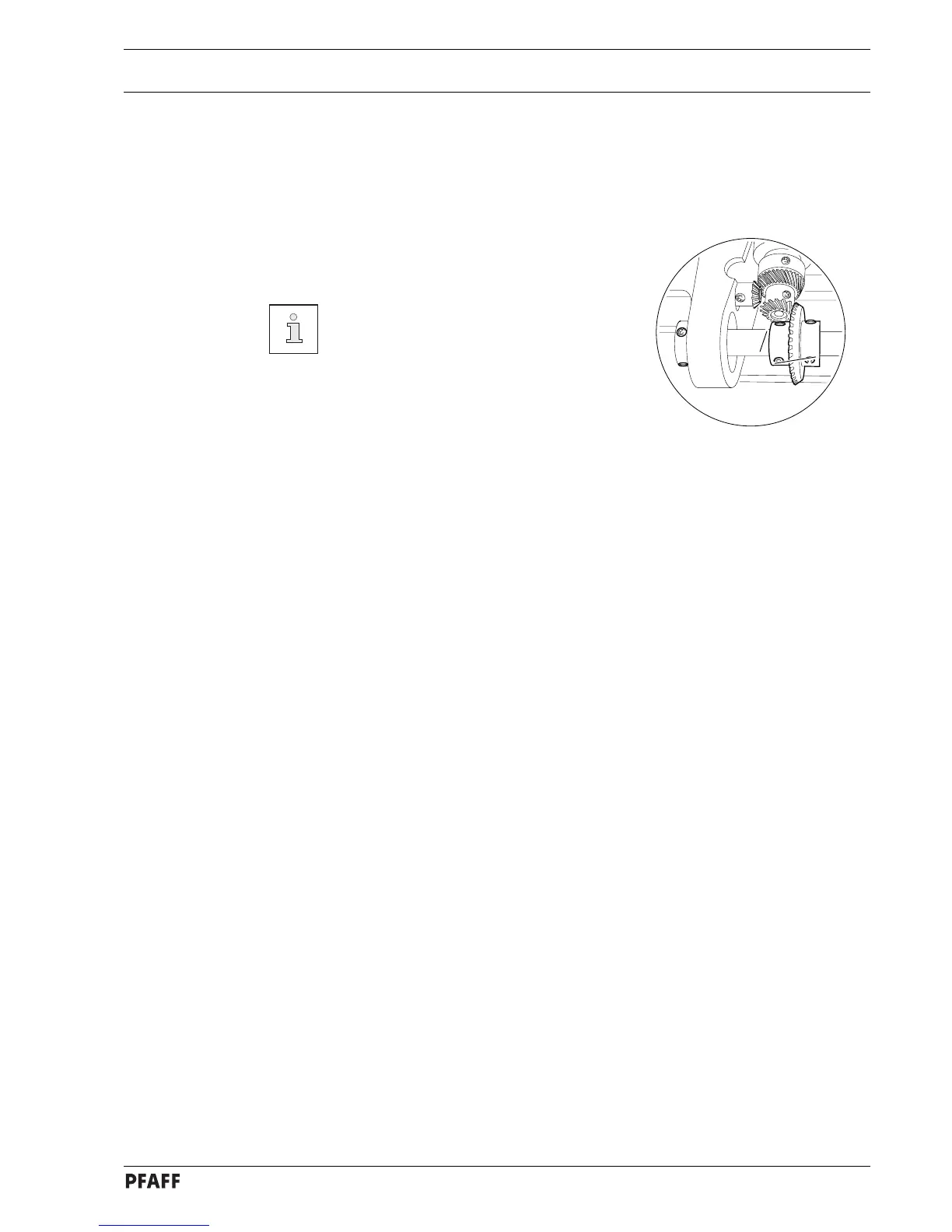

When the hook is replaced, care must
be taken to see that markings 14 and
15 are on the same side.
15
14
