1.06.05 Actuating lever under the reverse-feed control
Requirement
At the longest stitch length setting, reverse-feed control lever 3 must have a slight play
(approx. 0.3 mm) when pressed lightly.
● Loosen screws 1 and 2.
● Make sure that reverse-feed control lever 3 is resting on stop 4, move actuating lever 5
lightly against the reverse-feed control and tighten screw 1 again.
Leave screw 2 loose until the top-feed neutral position is adjusted
(Chapter 1.06.11).

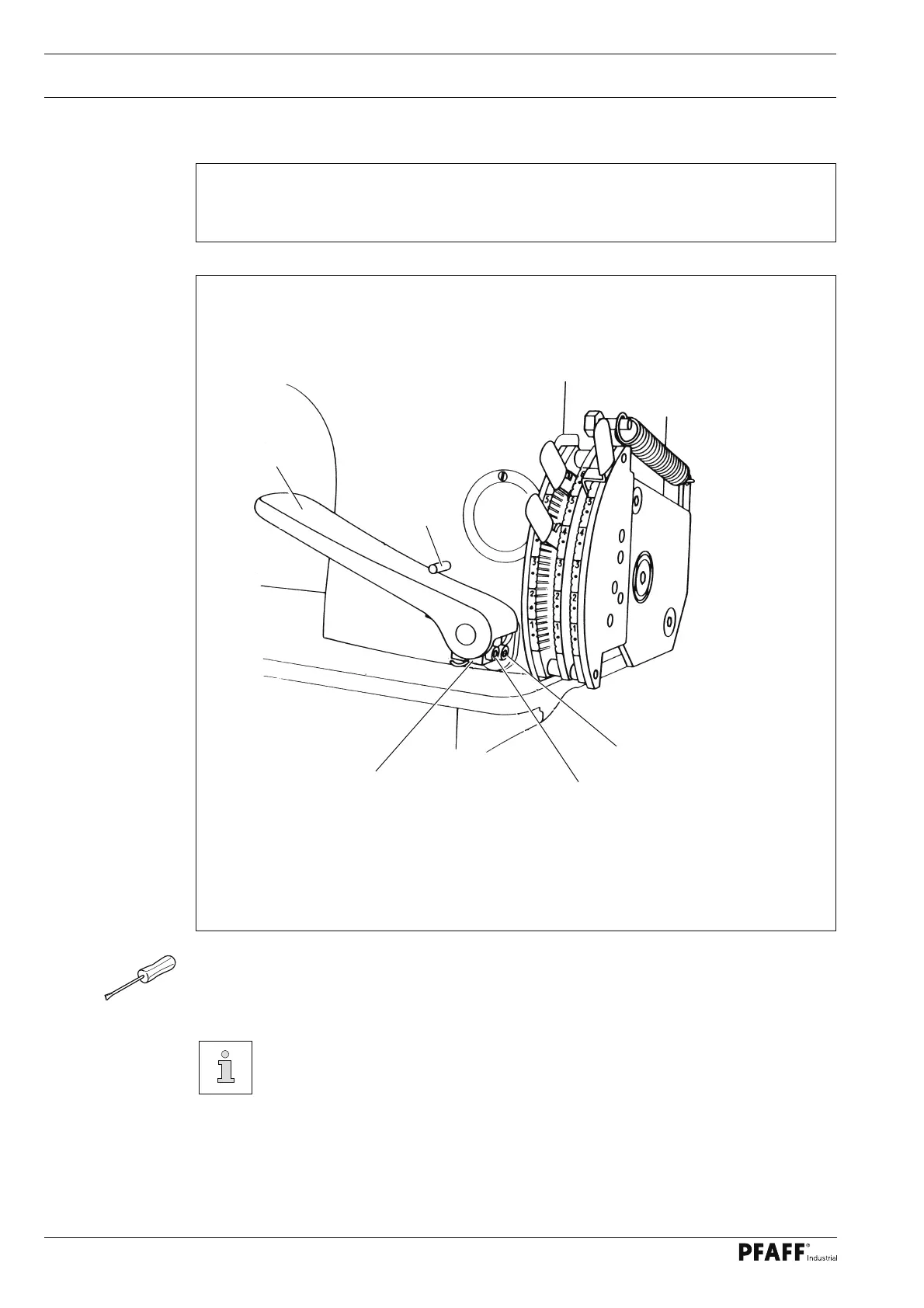

Fig. 1 - 06
