Pfaff 487 Adjustment Manual

Adjustment
16
● Raise the presser foot.
● Loosen screws 1, 2 and 3.
● Set crank 4 parallel with crank 5 and tighten screw 2.
1
9
10
2
5
4
17
18

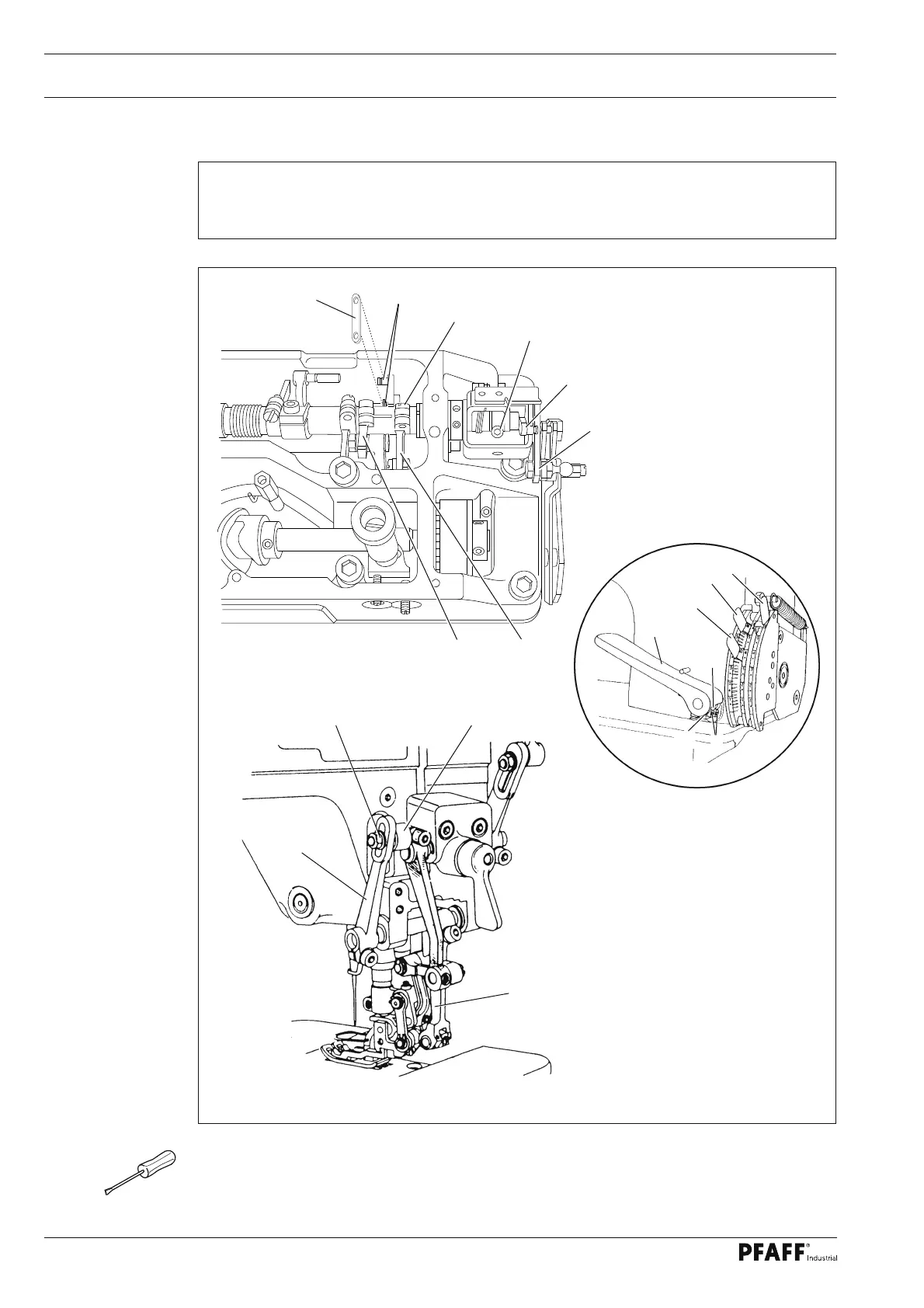

Fig. 1 - 12
14
13
16
22
8
7
6
21
20
3
19
1
.06.11 Neutral position of top feed
Requirement
With the stitch length and top feed set at "0" and with adjustment link 9 fi tted, drive lever
22 must not make any movement when the balance wheel is turned.
